Heavy duty welded steel pipe support, pipe bracket support, customized load-bearing pipe support for power plant chemical industry
Category:
hardware/Pipe fittings/Pipe sleeve
Model:
customizable
Brand:
pipe support
material:
Q235B/Q345B carbon steel
surface treatment:
Sandblasting rust removal/painting/galvanizing
connection method:
welding
Applicable pipeline types:
Steam/water/oil/gas industrial pipelines
structural form:
Reinforced plate/box type
bearing capacity:
Heavy load-bearing capacity
Operating Temperature:
-40℃~450℃
customized service:
Support customization according to images
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
material Q235B/Q345B carbon steel
surface treatment Sandblasting rust removal/painting/galvanizing
connection method welding
Applicable pipeline types Steam/water/oil/gas industrial pipelines
structural form Reinforced plate/box type
bearing capacity Heavy load-bearing capacity
Operating Temperature -40℃~450℃
customized service Support customization according to images
Description :

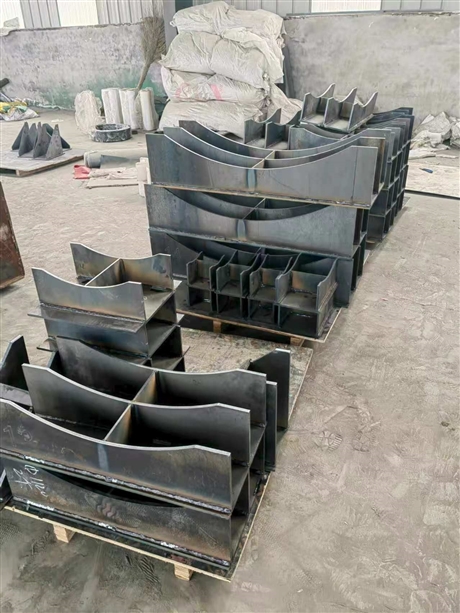

This product is a heavy-duty welded steel pipe support, specifically designed for supporting and fixing large-diameter, high load industrial pipelines. From the picture, it can be seen that the pipe bracket is cut from thick walled steel plate, with a semi-circular shape to fit the outer wall of the pipeline. The bottom is welded with multiple longitudinal and transverse reinforcement plates to form a stable box or grid structure, ensuring that it does not deform or shift when bearing the weight of the pipeline and the impact of the medium.
The surface of the product presents the original metallic color or has undergone preliminary rust prevention treatment, with full and uniform welds, reflecting a solid manufacturing process. This type of pipe support is widely used in thermal power plants, petrochemicals, centralized heating pipelines, and large-scale water treatment systems. Its core function is to effectively transfer the load of the pipeline to the steel structure beam or concrete foundation, while limiting the radial displacement of the pipeline and preventing pipeline damage caused by thermal expansion, contraction or vibration.
According to the specifications stacked in the picture, this product supports non-standard customization and can adjust the arc radius, bottom plate size, and reinforcement density based on the outer diameter of the pipeline (such as DN200-DN1000, etc.) and design load requirements. Sliding or fixed support nodes suitable for high temperature and high pressure conditions are key basic components for ensuring the safe operation of industrial pipelines. Customers can provide drawings or specific parameters for customized processing to meet the installation needs of various complex working conditions.
AfterSalesService :
包售后Key words:
