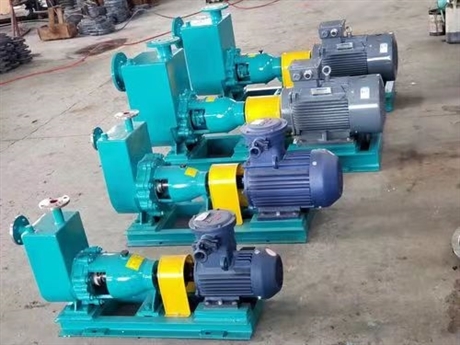

ZH type horizontal stainless steel material acid and alkali resistant self-priming pump

Description :

Compared with other types of self-priming pumps, the ZH type horizontal self-priming pump has the advantages of no check valve, simple structure, reliable operation, long working hours, easy maintenance and use, small size, light weight, and high efficiency. Special considerations have been made in the design, and compared with pumps of the same caliber, it has a larger displacement and higher performance. The ZH type stainless steel horizontal self-priming pump has outstanding performance as an emergency pump in industrial and agricultural production, such as drainage and firefighting. This pump is widely used for urban water supply in industrial sectors such as petroleum, chemical, metallurgical, synthetic fiber, and food, and can also be used for agricultural irrigation and drainage.

ZH type horizontal self-priming pump is a self-priming centrifugal pump, which has the advantages of compact structure, easy operation, stable operation, easy maintenance, high efficiency, long service life, and strong self-priming ability. There is no need to install a bottom valve in the pipeline, only a certain amount of liquid needs to be stored in the pump body before operation. Therefore, the pipeline system has been simplified and the working conditions have been improved.

Adopting an axial return pump structure. The pump body consists of a suction chamber, a storage chamber, a scroll chamber, a return hole, and a gas separation chamber. After the pump body is started normally, the impeller sucks in the liquid stored in the suction chamber together with the air in the pipeline, and mixes it inside the impeller under the action of centrifugal force. The liquid mixed with gas flows round to the outside of the scroll chamber, forming a certain thickness of white foam and high-speed rotating liquid ring on the outer support of the impeller. The gas-liquid mixture enters the gas-liquid separation chamber through a diffusion tube. At this point, due to a sudden decrease in flow rate, lighter gases are separated from the mixture and continue to rise and be discharged through the pump outlet. The liquid after degassing returns to the storage chamber and enters the impeller again through the reflux port. The air in the suction pipe continuously decreases until the gas is completely absorbed, completing the self-priming process, and then the pump is put into normal operation. Pump shaft position, horizontal impeller structure, enclosed impeller, single-stage number of impellers. The impeller suction method, single suction principle, centrifugal pump performance does not block the conveying medium.

The flow rate of this pump is 6.3~400m3/h. The lift is 4-132m, and the suction lift is above 5M.

The shaft seal form of the pump

Packing seal: The pump cover is equipped with a packing box, which uses soft packing seal. The packing box can be filled with water under certain pressure for sealing cooling and cleaning.   Mechanical seal: There are two forms of single end face seal and double end face seal. A certain pressure of water is introduced into the sealing chamber to flush and friction the two end faces, while also providing cooling effect. The shaft seal of the pump adopts packing seal and mechanical seal, which can be used by the user according to their needs.
