Open channel ultraviolet disinfection device for efficient sterilization and deodorization of sewage treatment
Category:
Environmental Protection/Raw water treatment equipment/Ultraviolet sterilization and disinfection equipment
Model:
AJ-ZWX2-8/320W
Brand:
Anjie Environmental Protection
water treatment capacity:
500-50000 m³/h
UV lamp power:
320W per unit
Lamp Lifetime :
≥ 12000 hours
sterilization rate:
≥99.9%
material:
304/316L stainless steel
Working Voltage:
220V/50Hz
Protection level:
IP68
Suitable water temperature:
5-40℃
transmittance:
≥70%
Control method:
PLC automatic control
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
water treatment capacity 500-50000 m³/h
UV lamp power 320W per unit
Lamp Lifetime ≥ 12000 hours
sterilization rate ≥99.9%
material 304/316L stainless steel
Working Voltage 220V/50Hz
Protection level IP68
Suitable water temperature 5-40℃
transmittance ≥70%
Control method PLC automatic control
Description :

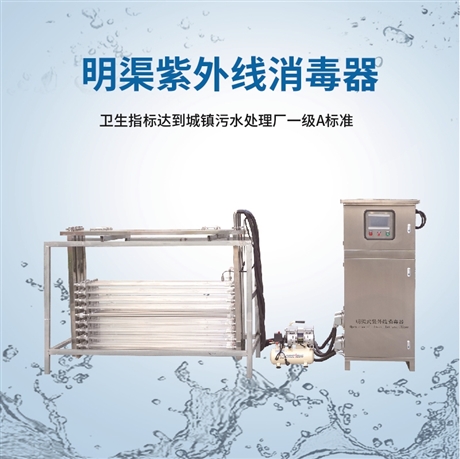

Open channel ultraviolet sterilizer is an efficient and environmentally friendly equipment widely used for tail water disinfection in sewage treatment plants. This device adopts internationally advanced ultraviolet lamp technology, which emits high-intensity ultraviolet light beams to destroy the DNA or RNA structure of bacteria, viruses, and other microorganisms in water, causing them to lose their reproductive ability, thereby achieving rapid and thorough sterilization and disinfection. Compared to traditional chlorine disinfection methods, ultraviolet disinfection has no secondary pollution, does not produce harmful by-products, has low operating costs, is easy to maintain, and meets modern environmental protection requirements.
This product is designed specifically for open channel water flow environments, with a compact structure and easy installation. It can be directly embedded into existing sewage discharge channels. The equipment casing is usually made of high-quality stainless steel material (such as 304 or 316L), which has strong corrosion resistance and compression resistance, and is suitable for various harsh water quality environments. Internally equipped with high-precision ballasts and intelligent control systems, it can monitor the working status and radiation intensity of ultraviolet lamps in real time, ensuring stable and reliable disinfection effects. When the lamp tube malfunctions or has insufficient strength, the system will automatically sound an alarm, prompting maintenance personnel to replace or clean it in a timely manner.
Mainly suitable for urban sewage treatment plants, industrial wastewater treatment stations, hospital sewage discharge, landscape water purification and other scenarios. It is particularly suitable for projects that require high effluent quality and meet the national first-class A standard or higher discharge standards. The target customer group includes municipal environmental protection departments, water companies, environmental protection leaders of industrial enterprises, and environmental engineering contractors. Hebei Anjie Environmental Protection Engineering, with years of industry experience, provides one-stop services from scheme design, equipment manufacturing to installation and commissioning, ensuring long-term stable operation of equipment and helping customers achieve green and sustainable development.
