Ulide UT8806A Six and a Half Bit Desktop Digital Multimeter High Precision Automatic Range USB Interface Laboratory Metrology Instrument
Category:
Electrical Engineering/Electrical Instruments /Multimeter
Model:
UT8806A
Brand:
UNI-T
Display digits:
6 and a half positions
maximum count:
220,000 counts
Basic DC voltage accuracy:
0.0035%
measurement function:
DCV/ACV, DCI/ACI, Ω, F, Hz, temperature, etc
interface type:
USB Device/Host, RS232 (optional)
security level:
CAT II 300V
Range mode:
Automatic/Manual Range
data storage:
Support internal storage and USB drive export
power supply:
100-240V AC, 50/60Hz
Overall dimensions:
Approximately 260mm x 110mm x 350mm
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Display digits 6 and a half positions
maximum count 220,000 counts
Basic DC voltage accuracy 0.0035%
measurement function DCV/ACV, DCI/ACI, Ω, F, Hz, temperature, etc
interface type USB Device/Host, RS232 (optional)
security level CAT II 300V
Range mode Automatic/Manual Range
data storage Support internal storage and USB drive export
power supply 100-240V AC, 50/60Hz
Overall dimensions Approximately 260mm x 110mm x 350mm
Description :
UNI-T UT8806A is a high-performance 6/2 position desktop digital multimeter designed for laboratories, research and development departments, and production lines that require extremely high measurement accuracy and stability. This instrument has a resolution of 220000 counts and can accurately capture small voltage, current, and resistance changes. It is an ideal tool for electronic component screening, sensor calibration, and precision circuit analysis.

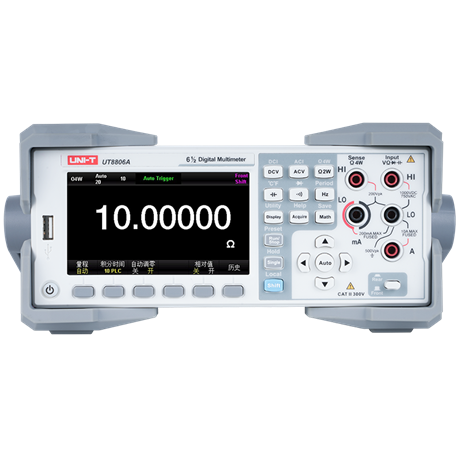

The product adopts a large-sized VFD fluorescent display screen or a high contrast LCD screen (depending on the specific batch, the figure shows clear numerical display), with intuitive and eye-catching readings, making it easy to read data even in complex lighting experimental environments. Supports multiple measurement functions, including DC/AC voltage, DC/AC current, resistance, capacitance, frequency, cycle, as well as diode and on-off testing. Its unique automatic range switching function can significantly reduce manual operation time and improve testing efficiency; It also supports manual range locking to meet the fixed parameter monitoring requirements under specific operating conditions.
In terms of data processing, UT8806A has rich built-in mathematical operation functions, such as relative value measurement (REL), maximum/minimum value recording, average value calculation, and dBm/dB conversion, making it convenient for users to perform complex data analysis. Equipped with standard USB Device/Host interface, supporting connection with PC, and with dedicated upper computer software, remote control, data acquisition, chart drawing, and report generation can be achieved, making it easy to build an automated testing system.
The body design conforms to ergonomics, the front panel button layout is reasonable, and the operation logic is clear. The input terminal identification is clear and has overload protection function, ensuring the safety of equipment and personnel in case of high voltage or high current misoperation. Widely used in fields such as consumer electronics, automotive electronics, communication equipment, power energy, and research institutes, it is a cost-effective alternative to imported high-end watches.
