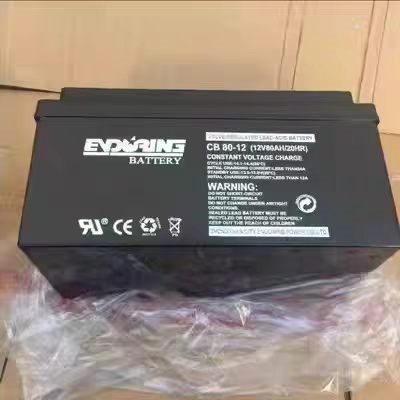

EVERFINE CB 80-12 12V80AH UPS power supply battery maintenance free lead-acid battery room energy storage battery
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
CB 80-12
Brand:
EVERFINE
rated voltage:
12V
Rated capacity:
80Ah (25HR)
Battery Type:
Valve regulated sealed lead-acid battery (VRLA)
Charging mode:
Constant voltage charging
Recycling charging voltage:
14.4V - 15.0V @ 25℃
Floating charging uses charging voltage:
13.5V - 13.8V @ 25℃
Maximum charging current:
24A
Reference weight:
About 26 kg
terminal type:
Bolted terminal
execution standard:
UL, CE
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 12V
Rated capacity 80Ah (25HR)
Battery Type Valve regulated sealed lead-acid battery (VRLA)
Charging mode Constant voltage charging
Recycling charging voltage 14.4V - 15.0V @ 25℃
Floating charging uses charging voltage 13.5V - 13.8V @ 25℃
Maximum charging current 24A
Reference weight About 26 kg
terminal type Bolted terminal
execution standard UL, CE
Description :
This is a CB 80-12 valve regulated sealed lead-acid battery (VRLA) produced by EVERFINE brand. This product is designed for scenarios that require stable and reliable backup power, with a large capacity specification of 12V voltage and 80Ah, and can provide long-term power support.
The product adopts advanced AGM (Absorbent Glass Mat) glass fiber partition technology, and the electrolyte is completely adsorbed in the partition, achieving true maintenance free operation. Users do not need to add distilled water during use, greatly reducing maintenance costs and manpower investment in the later stage. Its sealing structure design effectively prevents acid mist leakage, is environmentally friendly, and can be safely installed in indoor environments such as offices, computer rooms, or equipment rooms.
This battery has excellent high rate discharge performance, extremely low internal resistance, and can provide strong current surge at the moment of UPS uninterruptible power supply system startup, ensuring that critical load equipment (such as servers, network equipment, medical instruments, etc.) seamlessly switch to battery power supply in case of mains power interruption, ensuring data security and business continuity. Meanwhile, it is also widely used in fields such as solar photovoltaic energy storage systems, wind power generation systems, communication base stations, emergency lighting systems, and electric tools.
The product design is compact, and the shell is made of high-strength ABS material, which has good shock resistance and impact resistance, making transportation and installation more convenient and safe. The self discharge rate is low, with a monthly self discharge rate of less than 3% at 25 ℃, making it suitable for long-term float charging and extending the overall service life of the battery. Whether as a core backup energy source for data centers or as an energy storage unit for off grid solar systems in homes, this EVERFINE CB 80-12 battery is an ideal choice that combines cost-effectiveness and reliability.
