CSB brand GP121000 model 12V100Ah lead-acid battery UPS power supply DC screen energy storage battery
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
GP 121000
Brand:
CSB
Rated voltage:
12V
Rated capacity:
100Ah (20HR)
Product model:
GP 121000
Battery Type:
Valve regulated sealed lead-acid battery (VRLA)
Floating charging voltage (20 ℃):
13.5 - 13.8V
Circulating voltage (20 ℃):
14.4 - 15.0V
Maximum initial charging current:
30A
Safety Certification:
UL, ISO9001, ISO14001
feature:
Maintenance free, non leakage
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Rated voltage 12V
Rated capacity 100Ah (20HR)
Product model GP 121000
Battery Type Valve regulated sealed lead-acid battery (VRLA)
Floating charging voltage (20 ℃) 13.5 - 13.8V
Circulating voltage (20 ℃) 14.4 - 15.0V
Maximum initial charging current 30A
Safety Certification UL, ISO9001, ISO14001
feature Maintenance free, non leakage
Description :

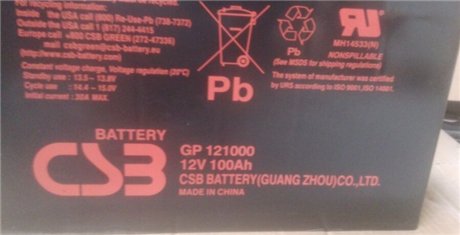

CSB GP 121000 is a high-performance, long-life valve regulated sealed lead-acid battery (VRLA) produced by renowned battery manufacturer CSB BATTERY (ZHANG ZHOU) CO., LTD. The product has a nominal voltage of 12V and a rated capacity of 100Ah (20 hour rate), with excellent deep cycle recovery capability and stable discharge performance, suitable for various scenarios that require high reliability backup power supply.
The product adopts advanced AGM (Absorbent Glass Mat) technology, and the electrolyte is absorbed by the glass fiber partition, achieving true maintenance free and non leakage design, which can be safely installed horizontally or vertically. Its sturdy structure and high-quality grid alloy material ensure a service life of several years under floating charging conditions, effectively reducing the overall cost of ownership for users.
This battery is widely used in fields such as uninterruptible power supply (UPS), emergency lighting systems, communication base stations, solar and wind energy storage systems, medical equipment, security alarm systems, and DC screens. At a temperature of 20 ° C, its float charging voltage range is 13.5-13.8V, with a cycling voltage of 14.4-15.0V. The initial charging current can reach up to 30A, allowing for fast charging and emergency situations such as power outages. The product has passed ISO9001 and ISO14001 system certification and complies with international safety standards such as UL, with reliable quality. It is an ideal power solution to ensure the continuous and stable operation of key equipment.
