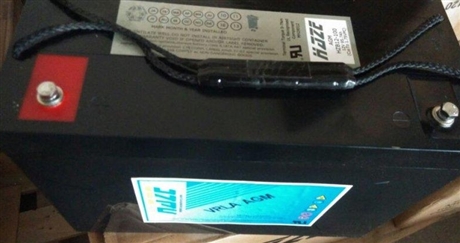

Haizhi HZB12-100 maintenance free lead-acid battery UPS power supply DC screen emergency energy storage battery

Haizhi HZB12-100 maintenance free lead-acid battery UPS power supply DC screen emergency energy storage battery

Category:

Electrical Engineering/battery/Lead-acid battery

Model:

HZB12-100

Brand:

Hai Zhi

rated voltage:

12V

Rated capacity:

100Ah (25℃, 20hr)

Product Type:

Valve regulated sealed lead-acid battery (VRLA/AGM)

design life:

12 years (float charging use)

Shell material:

ABS (flame retardant)

Self discharge rate:

<2%/month (25 ℃)

Working temperature range:

-20℃ ~ 60℃

Charging method:

Constant voltage and current limiting charging

Retail Price

10,000,000.00USD


重量

kg

  • Product Description
  • rated voltage

    12V

    Rated capacity

    100Ah (25℃, 20hr)

    Product Type

    Valve regulated sealed lead-acid battery (VRLA/AGM)

    design life

    12 years (float charging use)

    Shell material

    ABS (flame retardant)

    Self discharge rate

    <2%/month (25 ℃)

    Working temperature range

    -20℃ ~ 60℃

    Charging method

    Constant voltage and current limiting charging

    Description :

    This is a valve regulated sealed lead-acid battery (VRLA) produced by the well-known American brand HAZE, with the specific model HZB12-100. As a representative product of AGM (Absorbent Glass Mat) technology, it adopts an advanced lean liquid design, where the electrolyte is completely adsorbed in the glass fiber separator, achieving true maintenance free and leak proof performance. Even when tilted or placed sideways, it can be safely used, greatly improving installation flexibility and safety. \The core advantage of this battery lies in its excellent performance and long service life. According to the label, under standard float charging conditions, its design lifespan can reach 12 years, far exceeding that of ordinary lead-acid batteries, which can effectively reduce users' long-term replacement costs and maintenance workload. It has excellent deep cycle recovery capability, which can quickly restore capacity even after deep discharge, making it very suitable for applications that require frequent charging and discharging. At the same time, its self discharge rate is extremely low, less than 2% per month, which means it can maintain sufficient power and be on standby at any time even when idle for a long time. \In terms of product structure, it adopts high-strength ABS plastic shell, which has excellent impact resistance and flame retardancy, ensuring stable operation in various harsh environments. The internal electrode plates are made of high-purity lead calcium alloy mesh, effectively suppressing grid corrosion and active material detachment, ensuring the long-term stability of battery performance. The top terminal has undergone special treatment, with excellent conductivity and a firm and reliable connection. \This Haizhu HZB12-100 battery is widely used in fields that require extremely high power reliability, and is an ideal choice for UPS uninterruptible power supply systems in key facilities such as data centers, communication base stations, and financial systems. In addition, it is often used as an energy storage unit in new energy generation systems such as solar and wind power, as well as in DC screens, emergency lighting, fire alarm systems, and security monitoring equipment in power systems, providing stable and durable backup power support for various important loads.
