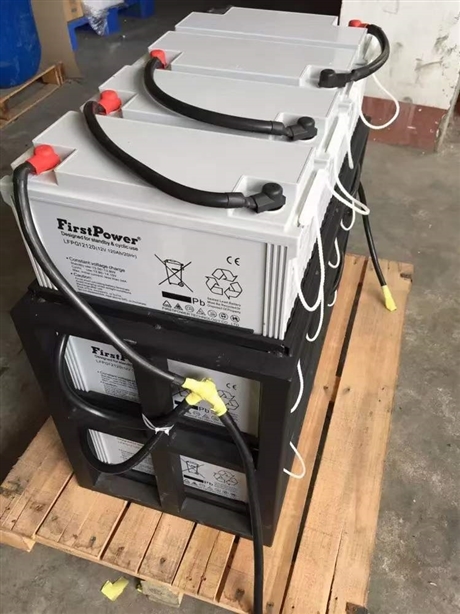

FirstPower brand LFPG12120 12V120AH lead-acid battery is suitable for UPS power supply and energy storage system
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
LFPG12120
Brand:
FirstPower
rated voltage:
12V
Rated capacity:
120Ah (25℃, 20hr)
Battery Type:
Valve regulated sealed lead-acid battery (VRLA/AGM)
Design purpose:
Standby&Cyclic
Floating charging voltage:
13.50 - 13.80V (25℃)
Cycle charging voltage:
14.40 - 15.00V (25℃)
Maximum charging current:
36A
Reference weight:
About 34 kg
terminal type:
F11/F12 bolted terminals
execution standard:
IEC 60896-21/22
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 12V
Rated capacity 120Ah (25℃, 20hr)
Battery Type Valve regulated sealed lead-acid battery (VRLA/AGM)
Design purpose Standby&Cyclic
Floating charging voltage 13.50 - 13.80V (25℃)
Cycle charging voltage 14.40 - 15.00V (25℃)
Maximum charging current 36A
Reference weight About 34 kg
terminal type F11/F12 bolted terminals
execution standard IEC 60896-21/22
Description :
FirstPower LFPG12120 is a valve regulated sealed lead-acid battery designed specifically for standby and cyclic usage scenarios. This product adopts advanced AGM (Absorbent Glass Mat) technology to adsorb electrolyte in glass fiber separators, achieving true maintenance free operation without the need for regular addition of distilled water, greatly reducing later operation and maintenance costs and safety risks.
**Main selling points and features:**
1. **High reliability and long lifespan: * * Adopting corrosion-resistant lead calcium tin alloy grid and optimized active material formula, significantly improves the deep cycle recovery ability and float charging service life of the battery. Under standard conditions, the float life can reach 10-12 years, with excellent cycle life performance, suitable for frequent charging and discharging scenarios.
2. **Safe sealing design: * * Unique valve controlled sealing structure can effectively prevent acid mist leakage and external air from entering, ensuring that the battery can operate safely at various installation angles (except inverted), environmentally friendly, and in compliance with CE and RoHS environmental certification requirements.
3. **Superior discharge performance: * * has excellent low self discharge rate (less than 2% per month), and can maintain sufficient power even after long-term storage. At the same time, its internal resistance is extremely low, able to withstand high current discharge, and its instantaneous output power is strong, making it very suitable for responding to the emergency load requirements of UPS uninterruptible power supply in the event of mains power interruption.
4. **Wide temperature adaptability: * * The working temperature range is wide, and it can work stably in environments ranging from -15 ℃ to 50 ℃, adapting to the requirements of different regions and computer room environments.
**Typical usage scenarios:**
* **Data center and communication base station: * * As the core backup energy source for UPS uninterruptible power supply and DC screen, it ensures the continuous operation of key equipment such as servers and switches in case of power outage.
* **New energy storage system: * * Used for energy storage in solar photovoltaic power plants and wind power plants, balancing grid load and improving energy utilization efficiency.
* **Emergency lighting and security system: * * provides reliable power support for fire emergency lights, monitoring cameras, and alarm systems.
* **Electric tools and medical equipment: * * Power supply for portable devices or precision instruments that require stable voltage and high current output.
**Target audience:**
This product is mainly aimed at system integrators, UPS power manufacturers, communication engineering companies, new energy storage project contractors, as well as data centers and industrial procurement departments that require large-scale deployment of backup power. For B2B customers who pursue high cost-effectiveness, long lifespan, and high safety, FirstPower LFPG12120 is the ideal power security solution.
