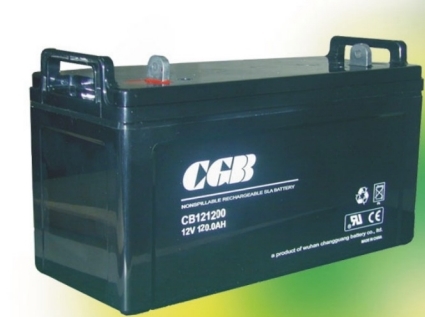

CGB Changguang CB1210 12V 128Ah maintenance free lead-acid battery industrial energy storage UPS power backup battery
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
CB12120
Brand:
CGB
rated voltage:
12V
Rated capacity:
128Ah (20HR)
Battery Type:
Valve regulated sealed lead-acid battery (VRLA/AGM)
Design float life:
10 years (25 ℃)
Overall dimensions:
Approximately 485 × 170 × 240mm (including terminals)
weight:
About 38-40kg
internal resistance:
≤ 4m Ω (fully charged state)
Maximum discharge current:
640A (5s)
Working temperature range:
-15℃ ~ 50℃
Certification Mark:
UL, CE
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 12V
Rated capacity 128Ah (20HR)
Battery Type Valve regulated sealed lead-acid battery (VRLA/AGM)
Design float life 10 years (25 ℃)
Overall dimensions Approximately 485 × 170 × 240mm (including terminals)
weight About 38-40kg
internal resistance ≤ 4m Ω (fully charged state)
Maximum discharge current 640A (5s)
Working temperature range -15℃ ~ 50℃
Certification Mark UL, CE
Description :
CGB Changguang CB1210 is a high-performance 12V 128Ah maintenance free valve regulated sealed lead-acid battery (VRLA) designed for industrial and commercial applications that require stable and reliable backup power. As a representative product of Wuhan Changguang Battery Co., Ltd., this battery adopts advanced AGM (Absorbent Glass Mat) separator technology, where the electrolyte is completely adsorbed in the glass fiber separator, achieving true maintenance free operation. Users do not need to add distilled water or check the liquid level during use, greatly reducing operation and maintenance costs and manpower investment.
This product has excellent deep cycle recovery capability and a long float life, with a float life of over 10 years in standard environments. Its internal structure has been optimized, with extremely low gas evolution rate and high sealing reaction efficiency, ensuring no acid mist leakage during use, environmentally friendly, and can be safely installed in the same space as precision electronic equipment. The battery casing is made of high-strength ABS material, which has strong impact resistance, corrosion resistance, and is equipped with a sturdy handle design for easy handling and installation, especially suitable for deployment scenarios of large capacity battery packs with heavy weight.
CB1210 is widely used in uninterruptible power supply (UPS) systems, emergency lighting systems, communication base stations, solar photovoltaic energy storage systems, wind power storage, DC screen power supplies, and backup power supply solutions for large data centers. With its stable voltage output and strong instantaneous discharge capability, it can quickly take over the load in case of power interruption, ensuring the continuous operation of critical equipment. In addition, the self discharge rate of the battery is low, less than 3% per month (25 ℃), making it suitable for long-term backup applications. The product has passed international authoritative certifications such as UL and CE, complies with multiple safety and environmental standards, and has reliable quality. It is the preferred matching power supply product for many system integrators and engineering projects worldwide. CGB CB1210 can provide efficient, economical, and durable power security solutions for both new construction projects and old system upgrades.
