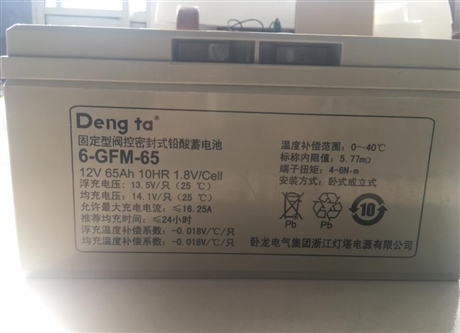

Dengta 6-GFM-65 fixed valve regulated sealed lead-acid battery 12V65Ah communication base station UPS power backup battery
Category:
Electrical Engineering/battery/Lead-acid battery
Model:
6-GFM-65
Brand:
Dengta
Rated voltage:
12V
Rated capacity:
65Ah (10HR)
Single grid voltage:
1.8V/Cell
float voltage:
13.5V/piece (25 ℃)
equalization voltage:
14.1V/piece (25 ℃)
Maximum allowable charging current:
≤16.25A
Recommended average charging time:
≤ 24 hours
Nominal internal resistance:
5.77mΩ
Temperature compensation range:
0~40℃
Installation method:
Horizontal or vertical
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Rated voltage 12V
Rated capacity 65Ah (10HR)
Single grid voltage 1.8V/Cell
float voltage 13.5V/piece (25 ℃)
equalization voltage 14.1V/piece (25 ℃)
Maximum allowable charging current ≤16.25A
Recommended average charging time ≤ 24 hours
Nominal internal resistance 5.77mΩ
Temperature compensation range 0~40℃
Installation method Horizontal or vertical
Description :
This product is a 6-GFM-65 fixed valve regulated sealed lead-acid battery under the Dengta brand. It is a high-performance energy storage device designed specifically for scenarios that require stable and long-lasting backup power. Its core advantage lies in the use of advanced valve controlled sealing technology (VRLA), which achieves true maintenance free operation. Users do not need to add electrolyte or perform tedious daily maintenance during the service life, greatly reducing operation and maintenance costs and manpower investment. At the same time, the sealing structure effectively prevents acid mist leakage and electrolyte overflow, ensuring the safety and cleanliness of the usage environment, and meeting the high standards of environmental protection and safety requirements of modern data centers and communication rooms. \The battery has a nominal voltage of 12V and a rated capacity of up to 65Ah (10 hour rate), providing strong and long-lasting power support. In float charging mode, it has a long design life and extremely low self discharge rate. Even in long-term standby mode, it can maintain sufficient power, ensuring seamless switching in the event of mains power interruption and providing uninterrupted power protection for critical loads. The product adopts high-purity lead calcium alloy grid and special active material formula internally, which has excellent deep cycle recovery ability and resistance to overcharging and overdischarging, effectively extending the service life of the battery. \Typical application scenarios include backup power systems for telecommunications and mobile communication base stations, data center (IDC) and uninterruptible power supply (UPS) systems, control and protection power supplies for power system substations, railway signal systems, emergency lighting systems, and DC screens for large industrial equipment. This product can adapt to both horizontal and vertical installations, with clear terminal torque requirements (4-6N · m) and convenient and reliable installation. For B-end customers who pursue high reliability, low maintenance costs, and long service life, this Dengta 6-GFM-65 battery is an ideal choice for building a stable power guarantee system.
