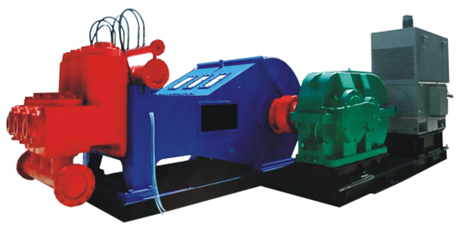

Water jet plunger pump
Category:
mechanical equipment/Mining washing machinery and equipment/Other beneficiation equipment
Model:
PSZB type
Brand:
Jinquan water pump
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
Advantages:
Due to the adoption of a positive displacement structure, this type of pump has the greatest advantage over centrifugal slurry pumps. It has a high pump efficiency, generally reaching 85-92%, which is 2-3 times that of centrifugal pumps, and can save motor operating costs by 30-50%;
The cost of consumable parts during operation is 30-60% lower than that of centrifugal slurry pumps, and it can transport slurry with a maximum weight concentration of 70%.
structure
This type of pump is a horizontal three plunger single acting external reducer directly coupled eccentric axle transmission form. To isolate the erosion of the plunger by the slurry, a reciprocating volumetric pump with a water spray device is installed on the plunger.
This type of pump mainly consists of a main engine, a reducer, a motor, a high-pressure cleaning pump, an automatic frequency conversion control cabinet, etc.
The host mainly consists of a power system, a valve box system, a water spray system, a pump base, a reducer, an electric motor, auxiliary systems, etc.
The high-pressure cleaning pump is mainly composed of a power system, a hydraulic cylinder system, a transmission system, a pump base, an electric motor, etc.
The automatic control system mainly consists of liquid level switches, vector type frequency converters, touch screens PLC、 Composed of remote control system, etc.
