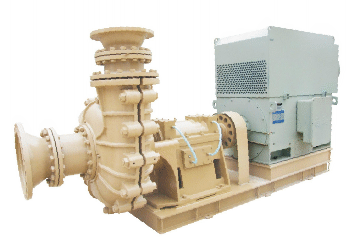

Slurry pump

Description :

feature

        The transmission part of this type of pump adopts a direct connection form, which is suitable for high flow, high head, and high torque transmission. The bearing transmission part consists of a set of double row tapered roller bearings, deep groove ball bearings, and cylindrical roller bearings, and uses a thin oil (lubricating oil) flow lubrication method to completely solve the problems of adjusting bearing clearance and cooling bearings, ensuring the overall service life of the pump and greatly reducing maintenance workload.

        This type of pump adjusts the flow rate and head of the pump by turning the impeller diameter and changing the motor stage to meet the needs of different working conditions.

structure

        This type of slurry pump is a single-stage, single suction, cantilever, horizontal centrifugal pump. Structurally, it is easy to install, disassemble, and maintain. Adopting a metal lining, i.e. a dual pump casing structure; The pump body and pump cover are vertically opened in the middle; The impeller is connected to the shaft using coarse threaded screws; The sheath, front guard plate, rear guard plate, and impeller adopt a separate structure. For the convenience of bearing assembly, the bracket adopts a horizontally split structure and is designed as a universal component. The shaft seal adopts three sealing forms: power pair impeller+rotating shaft lip seal ring+packing, rotating shaft lip seal ring+packing, and mechanical seal, to ensure that the slurry does not leak and meet the needs of different working conditions. The outlet position of this type of pump can be installed and used by rotating eight different angles at 45 ° intervals as needed.
