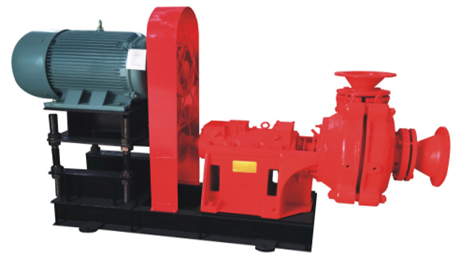

Slurry pump 1

Description :

feature

        At the same time as introducing advanced foreign pumps, based on the actual usage situation in China, the original two sets of tapered roller bearings were changed to a set of double row tapered roller bearings+deep groove ball bearings+cylindrical roller bearings, and dry oil (grease) lubrication was changed to thin oil (lubricant) lubrication, completely solving the problems of adjusting bearing clearance and bearing cooling, ensuring the overall service life of the pump and greatly reducing maintenance workload.

          This type of pump can adopt direct transmission or V-belt transmission, and the pulley can be easily replaced to change the pump speed, adjust the pump flow rate and head to meet different working conditions.

structure

        This type of slurry pump is a single-stage, single suction, cantilever, horizontal centrifugal pump. The structural design incorporates the advantages of similar products both domestically and internationally, including ease of installation, disassembly, and maintenance. This type of pump adopts a metal lining, that is, a double shell structure, with the pump body and pump cover vertically opened in the middle; The impeller and shaft are connected by coarse thread connection; The protective sheath, front and rear protective plates adopt a separate structure; The bracket and bearing body are universal components. The shaft seal adopts two sealing forms: power auxiliary impeller+rotating shaft lip seal ring+packing and rotating shaft lip seal ring+packing, to ensure that the slurry does not leak and meet the needs of different working conditions. The outlet position of this pump can be installed and used at eight different angles with a 45 ° interval according to the needs.
