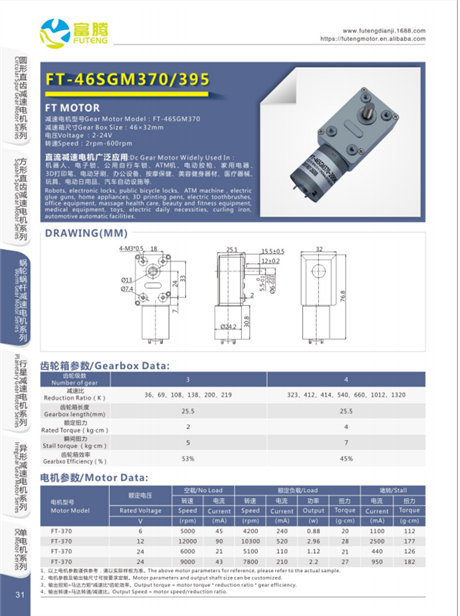

Futeng FT-46SGM370 DC reduction motor intelligent cat litter box dedicated low-speed high torque worm gear gearbox
Category:
Electrical Engineering/motor/Reduction motor
Model:
FT-46SGM370
Brand:
fortum
Overall dimensions:
46×32mm
rated voltage:
6V/12V/24V (supports customization of 42V)
Reduction ratio range:
36-1320
rated torque:
2-7 kg.cm
locked-rotor torque:
5-21 kg.cm
no-load speed:
12000-9000 rpm (depending on voltage)
rated speed:
4200-7800 rpm (depending on voltage)
Gearbox efficiency:
45%-53%
mounting hole:
4-M3×0.5
shaft diameter:
Ø4mm
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Overall dimensions 46×32mm
rated voltage 6V/12V/24V (supports customization of 42V)
Reduction ratio range 36-1320
rated torque 2-7 kg.cm
locked-rotor torque 5-21 kg.cm
no-load speed 12000-9000 rpm (depending on voltage)
rated speed 4200-7800 rpm (depending on voltage)
Gearbox efficiency 45%-53%
mounting hole 4-M3×0.5
shaft diameter Ø4mm
Description :
The FUTENG FT-46SGM370 series is a high-performance miniature DC reduction motor designed specifically for automation equipment that requires precise control and high torque output. This product adopts a mature worm gear or planetary gear reduction structure (configured according to the specific model), which has the characteristics of compact structure, high transmission efficiency, smooth operation, and low noise.
**Main selling points:**
1. * * High torque output: * * By reducing and increasing torque through a precision gearbox, it can provide strong driving force even at low speeds. The rated torque can reach 2-7 kg.cm, and the maximum locked rotor torque can reach 21 kg.cm or more, making it easy to cope with load changes.
2. * * Multiple voltage specifications: * * Standard supports 6V, 12V, 24V DC voltage input, and also supports customized non-standard voltages such as 42V to meet the needs of different power systems.
3. * * Precision control: * * With different reduction ratios (optional from 36:1 to 1320:1), it can achieve a wide range of speed adjustment from thousands to tens of revolutions per minute, suitable for scenarios that require speed accuracy.
4. Wide applicability: The product is compact in size (gearbox size 46x32mm), easy to install, and widely used in the fields of smart homes, office automation, and industrial control.
**Typical usage scenarios:**
* **Smart pet supplies: * * For example, the drum drive of the smart litter box and the screw propulsion device of the automatic feeder require the motor to be silent and the torque sufficient to push the litter or food.
* **Office and financial equipment: ATM cash dispensing modules, cash counters, shredders, electric staplers, etc. require stable power transmission.
* **Personal care and health: * * Massage chairs, beauty equipment, electric toothbrushes, dental irrigators, etc., utilize their smooth operation characteristics to enhance user experience.
* **Automation and Robotics: * * Sweeping robot edge brush drive, service robot joint drive, electric locks, curtain motors, etc.
* **Other fields: * * 3D printing pens, electric glue guns, toy car models, automotive automation facilities, etc.
**Target audience:**
Intelligent hardware development engineers, pet product manufacturers, office automation equipment purchasers, medical device manufacturers, and B2B customers who require customized power solutions.
