Futeng FT-49OGM500 DC deceleration motor intelligent feeder pet supplies dedicated silent high-speed motor
Category:
Electrical Engineering/motor/Reduction motor
Model:
FT-49OGM500
Brand:
FUTENG
model:
FT-49OGM500
brand:
FUTENG
Working Voltage:
2-24V DC
Box diameter:
49mm
No load speed range:
2-2000 rpm
Gearbox type:
Cylindrical straight teeth
Optional speed ratio:
41.7, 80, 110, 150, 201, etc
Maximum rated torque:
6 kg cm (depending on speed ratio)
Gearbox length:
11 mm
application field:
Intelligent feeders, electronic locks, robots, massage equipment
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
model FT-49OGM500
brand FUTENG
Working Voltage 2-24V DC
Box diameter 49mm
No load speed range 2-2000 rpm
Gearbox type Cylindrical straight teeth
Optional speed ratio 41.7, 80, 110, 150, 201, etc
Maximum rated torque 6 kg cm (depending on speed ratio)
Gearbox length 11 mm
application field Intelligent feeders, electronic locks, robots, massage equipment
Description :
The FUTENG FT-49OGM500 is a high-performance micro DC gear reduction motor designed specifically for equipment with strict requirements for noise and volume. This product adopts a cylindrical straight tooth structure, with a box diameter of only 49mm, compact structure, and low installation space requirements. Its core advantages lie in smooth operation and extremely low noise, making it very suitable for smart pet feeders, automatic water dispensers, and various home automation devices that require a quiet environment.
This motor supports a wide voltage input range of 2V to 24V, with strong adaptability and can be used in conjunction with different power management systems. The speed range covers from 2rpm to 2000rpm, and by combining gearboxes with different speed ratios (such as 41.7, 80, 110, etc.), the output speed and torque can be flexibly adjusted to meet diverse needs from low-speed high torque to high-speed low torque. In the application of intelligent feeders, it can ensure precise control and silent operation of the feeding mechanism, avoiding disturbing pets.

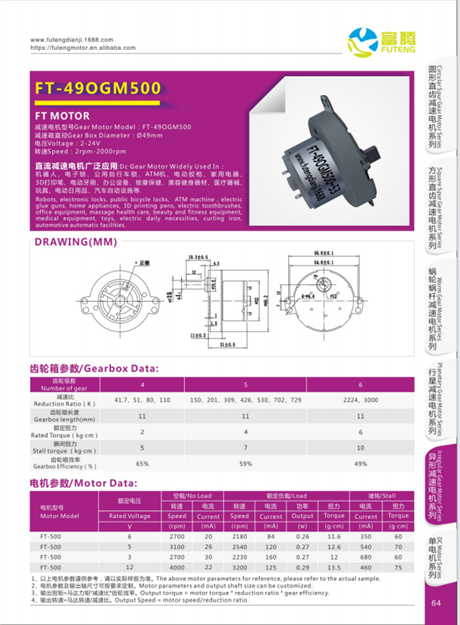

In addition to the smart home field, FT-49OGM500 is widely used in robot joint drive, electronic locks, ATM cash box transmission, electric curtains, massage and health equipment, and medical devices. The product provides detailed dimensional drawings to facilitate engineers in structural design. Its gearbox efficiency can reach up to 65%, ensuring both power output and energy efficiency. As a B2B industrial product, this motor supports parameter customization and can adjust voltage, speed, and installation method according to specific customer working conditions, making it an ideal choice for automation equipment drive systems.
