Precision planetary reducer with high torque and low backlash servo motor matching transmission device

Description :

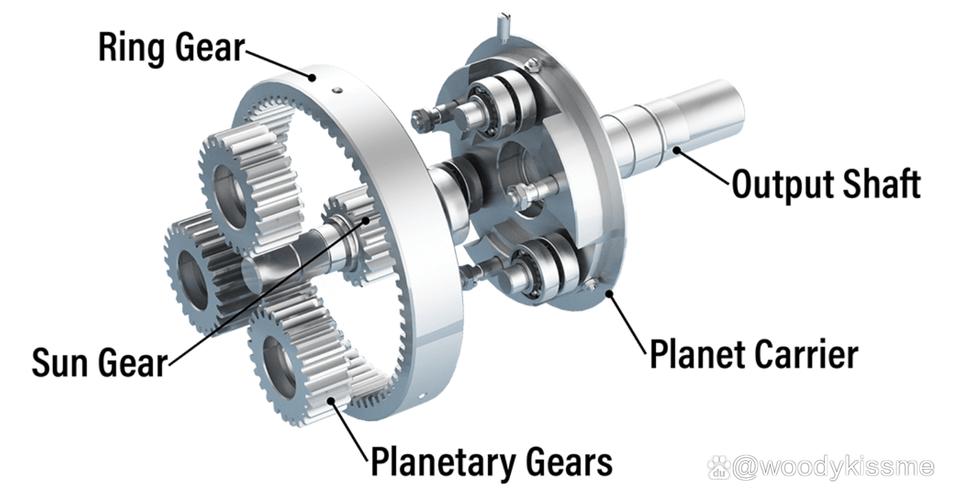

  Planetary reducer is a high-precision and high rigidity power transmission device, mainly used to solve the problems of insufficient torque and load inertia matching of servo motors or stepper motors during high-speed operation. It converts the high speed of the input shaft into low speed and high torque of the output shaft through the meshing of the internal planetary gear set, and is widely used in typical working conditions such as CNC machine tools, robot joints, automated packaging lines, and printing equipment. The core advantage of this category lies in its compact structure and high transmission efficiency, which can effectively improve the response speed and positioning accuracy of motion control systems. It is an indispensable key basic component in the field of industrial automation.

  In terms of specifications, planetary reducers usually use high-strength alloy steel to manufacture gears, which undergo carburizing, quenching, and grinding processes to ensure the hardness and wear resistance of the tooth surface. The shell is mostly made of aluminum alloy or cast iron material, which balances heat dissipation performance and structural strength. Common implementation standards include international standards such as ISO and DIN, and some high-end models have CE certification. The backlash (return clearance) is a key indicator for measuring accuracy, typically ranging from 10-15 arc minutes for ordinary grades and 3-5 arc minutes or even lower for precision grades. The rated output torque range is wide, ranging from a few Newton meters to several thousand Newton meters. The specific value depends on the base size and reduction ratio. Common reduction ratios include 3, 5, 10, 20, 50, 100, and other grades.

  When selecting, it is important to consider the type of load, required torque, speed requirements, and installation space. For scenarios that require frequent start stop or high dynamic response, precision planetary gearboxes with low backlash and high torsional stiffness should be selected; For continuous operation and stable load situations, the standard model can meet the demand and is more cost-effective. Attention should be paid to distinguishing between planetary reducers and ordinary gear reducers. The former can provide greater torque density and higher positioning accuracy under the same volume. If there is a strong impact load in the application environment, it is recommended to choose a heavy-duty series with increased bearing configuration and verify whether the peak torque exceeds the maximum allowable value to avoid premature failure.

  During the installation process, it is necessary to ensure the coaxiality between the motor shaft and the input end of the reducer. It is recommended to use special tools to press in the coupling or lock the screw, and it is strictly prohibited to directly tap the input shaft. Daily maintenance mainly includes regular checks on the condition of lubricating oil. Generally, the lubricating oil should be replaced after the first 300 hours of use, and then every 2000-3000 hours or annually, depending on the working conditions. Common faults such as abnormal noise, high temperature rise, or oil leakage are often caused by poor lubrication, aging seals, or improper installation. Maintaining a clean and dry operating environment, regularly tightening connecting bolts, can significantly extend the service life of planetary gearboxes and maintain stable performance.
