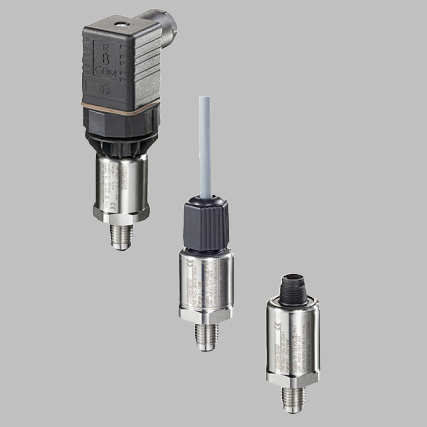

P200/P210/P220 series pressure sensors
Category:
Instrumentation/transmitter /Pressure transmitter
Model:
7MF1565-； 7MF1566-； 7MF1567-
Brand:
SIEMENS - Siemens
output signal:
4...20mA， Two wire system, power supply 7.30V DC; 0...10V， Three wire system, power supply 12... 33V DC
Explosion-proof:
None; Intrinsic safety explosion-proof EEx ia IIC T4
process connection:
Stainless steel SST316L metric system; American system; Special requirements
Sealing material:
FPM (Standard); CR；NBR； EPDM； Special requirements
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
output signal 4...20mA， Two wire system, power supply 7.30V DC; 0...10V， Three wire system, power supply 12... 33V DC
Explosion-proof None; Intrinsic safety explosion-proof EEx ia IIC T4
process connection Stainless steel SST316L metric system; American system; Special requirements
Sealing material FPM (Standard); CR；NBR； EPDM； Special requirements
Description :
P200/P210/P220 Application areas: • Mechanical Engineering • Shipbuilding • Power Engineering • Chemical Industry • Water Supply
1、 P200 series pressure transmitter (7MF1565-)
Measurable gases, liquids, and vaporsGauge pressure and absolute pressure.
Advantages: High measurement accuracy of 0.25-0.5;Ceramic membrane, capable of measuring corrosive and non corrosive mediaHigh overvoltage and load resistance capability; Stainless steel casing.
Application areas: • Mechanical Engineering • Shipbuilding • Power Engineering • Chemical Industry • Water Supply
Measurement range:Gauge pressure (1... 60bar) Absolute pressure (0.6... 16bar a)
Protection level: IP65, IP67
Selection reference: Electrical connection (please private message for details)
2、 P210 series pressure transmitter (7MF1566-)
Measurable gases, liquids, and vaporsLow pressure applications.
Advantages: High measurement accuracy of 0.25-0.5; High overvoltage and load resistance capability; Stainless steel measuring unit
Measurement range:100...600mbar
Protection level: IP65, IP67
Selection reference: Electrical connection (please private message for details)
3、 P220 series pressure transmitter (7MF1567-)
Measurable gases, liquids, and vaporsApplication in the field of high pressure and compression technology.
Advantages: High measurement accuracy of 0.25-0.5; High overvoltage and load resistance capability; Stainless steel measuring unit,Fully welded
Measurement range:2.5...600bar
Protection level: IP65, IP67
Selection reference: Electrical connection (please private message for details)
AfterSalesService :
质保一年，故障返修。Key words:
