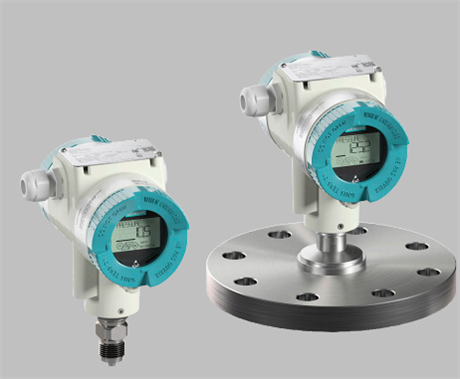

Intelligent pressure transmitter, differential pressure transmitter, absolute pressure transmitter
Category:
Instrumentation/transmitter /Pressure transmitter
Model:
7MF0300； 7MF0340； 7MF0320
Brand:
SIEMENS - Siemens
Communication:
HART，4..20mA； PROFIBUS PA； FF
Measuring element filling fluid:
Silicone oil; Inert oil; Food grade oil
range:
250mbar... 700bar optional
process connection:
Metric/American threaded connections; Flange connection; Diaphragm sealing component
Material in contact with the medium:
Stainless steel 316L; Hastelloy alloy
Not in contact with the medium:
Cast aluminum casing; Stainless steel shell CF3M, 1.4409 similar to 316L
Shell:
Dual cavity design
Explosion-proof:
None; Intrinsic safety; Explosion proof; Dust; Zeng'an
electrical interface:
2xM20x1.5； 2x1/2-14NPT
display in situ:
No display; Built in display (blind cover); With display (glass window)
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Communication HART，4..20mA； PROFIBUS PA； FF
Measuring element filling fluid Silicone oil; Inert oil; Food grade oil
range 250mbar... 700bar optional
process connection Metric/American threaded connections; Flange connection; Diaphragm sealing component
Material in contact with the medium Stainless steel 316L; Hastelloy alloy
Not in contact with the medium Cast aluminum casing; Stainless steel shell CF3M, 1.4409 similar to 316L
Shell Dual cavity design
Explosion-proof None; Intrinsic safety; Explosion proof; Dust; Zeng'an
electrical interface 2xM20x1.5； 2x1/2-14NPT
display in situ No display; Built in display (blind cover); With display (glass window)
Description :
P320/P420 digital instrument, user-friendly interface, high precision, and can be remotely and safely debugged.
Main difference (accuracy): P320 accuracy 0.065%; P420 accuracy 0.04%
Measurable: gauge pressure, absolute pressure, differential pressure, liquid level, volumetric flow rate, mass flow rate.
AfterSalesService :
质保一年，返厂保修。Key words:
