Encapsulation machine

Description :

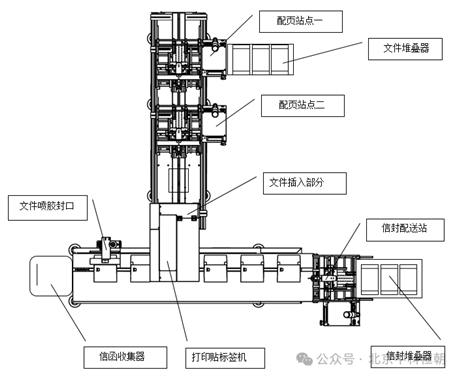

1、 Whole machine structure and core process

Equipment integrationHost control system, dual page matching station, envelope station, intelligent recognition system, online printing and labeling, adhesive mechanism, letter collectorSeven modules are integrated to complete the entire process of document sorting, sealing, labeling, sealing, and material receiving, with high automation and stable operation.

1. The host control and material conveying machine are equipped with a dedicated computer control system to coordinate equipment power and full process operation. The equipment receives and organizes the materials sent by the 1st and 2nd page matching stations, and then accurately transports them to the sealing station for standby.
2. After the envelope is positioned and the tongue opening envelope is fed into the track, the clamp automatically locks to complete the positioning; The tongue opening device cuts open the sealing tongue, smoothly transports the envelope to the sealing position, and waits for the document to be loaded.
3. After the fully automatic sealing operation envelope is in place, the upper opener opens the envelope entrance in a siphon manner, and the slot type sealer extends along both sides of the envelope, cooperating with the feeding fork to smoothly feed the sorted documents into the envelope. The entire process of homework does not damage envelopes and documents, and the probability of sealing and encapsulation failures is extremely low.

2、 Page site

The page matching station can independently debug material parameters, and the panel is equipped with operation buttons such as pause and emergency stop, which can be quickly manually intervened in case of emergencies. High material push and recognition accuracy.

Install stackers on the backend of the site, which can store envelopes in bulk and supportNon-stop replenishment of materialsEffectively avoiding equipment downtime caused by envelope shortages and ensuring continuous production.

3、 Intelligent File Comparison System

Equipped with professional server software, linked with high-speed cameras to form a dual error prevention system.

1. The server compares, verifies, and records the backend data table with the file code recognized by the device, and then issues a printing instruction;
2. The high-speed scanner is installed above the conveyor line of the page matching station, capturing real-time QR codes/barcodes of documents, automatically comparing and archiving them with the database, and eliminating the problem of incorrect installation from the source.

4、 Real time online printing and labeling

Integrated online printing and labeling mechanism, compatible with conventional adhesive labels, with clear handwriting and firm label adhesion. The device receives real-time server data and barcode information, completes label printing, and accurately attaches it to the designated position on the back of the envelope.

5、 Adhesive sealing module

After the document is sealed, the equipment automatically sprays glue evenly on the sealing tongue of the envelope, and the sealing mechanism folds and presses the sealing tongue tightly. The colloid distribution is uniform, the envelope seal is tightly bonded, not easy to crack or tear, and the sealing effect is excellent.

6、 Letter collection institution

After the finished letter is output by the device, the collector automatically stacks it neatly in order. If it is necessary to increase the material collection capacity, additional collectors can be added to meet the needs of large-scale letter collection.
