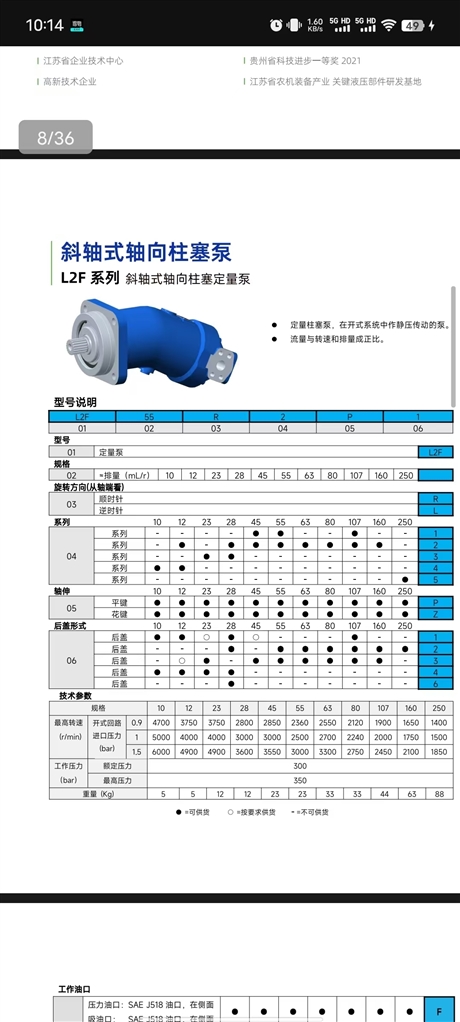

L2F series high-pressure and high flow hydraulic power source for inclined axis axial piston pump

Description :

  The inclined axis axial piston pump L2F series is a high-performance positive displacement hydraulic component mainly used to convert mechanical energy into hydraulic energy, providing stable and high-pressure power output for heavy machinery equipment. This series of products adopts a slanted shaft structure design, which realizes the reciprocating motion of the plunger by changing the angle between the drive shaft and the cylinder axis, thus completing the oil suction and discharge process. This structural characteristic gives it extremely high pressure resistance and a long service life, making it particularly suitable for harsh working environments such as engineering machinery, mining equipment, ship deck machinery, and metallurgical industries. The L2F series inclined axis axial piston pump can effectively solve the problems of large leakage and low efficiency of traditional pumps under high pressure, ensuring the stability and reliability of the system under long-term high load operation. It is an ideal choice for the core power unit of large hydraulic systems.

  In terms of specifications and manufacturing processes, the inclined axis axial piston pump L2F series strictly follows international hydraulic industry standards for design and production. The pump body is usually cast with high-strength cast iron or alloy steel materials, and undergoes precision machining and heat treatment processes to ensure the hardness and wear resistance of key mating surfaces. The plunger component is made of high-quality alloy steel, with a hardened surface and a high-precision distribution plate, which significantly reduces internal leakage and improves volumetric efficiency. This series of pumps supports multiple installation methods, including flange installation and tripod installation, with connection interfaces that comply with SAE or ISO standards for easy system integration. The typical working pressure range can reach 35MPa to 40MPa, and the peak pressure can be higher. The speed range is usually between 500-1800rpm, and the specific parameters depend on the specific displacement model. All factory products undergo strict pressure testing and performance testing to ensure that all indicators meet the design specifications.

  When selecting, the specific model and parameters of the L2F series inclined shaft axial piston pump should be determined according to the actual working conditions. Firstly, the maximum working pressure and flow rate required by the system should be clearly defined in order to select the appropriate displacement specification; Secondly, it is necessary to consider the speed and power matching of the driving source to avoid overload operation. This series of pumps is suitable for closed or open loop systems. For scenarios that require bidirectional rotation or variable control, corresponding control modules can be optionally equipped. It should be noted that although the inclined shaft structure has better impact resistance compared to the straight shaft plunger pump, it requires higher installation coaxiality. When selecting, sufficient installation space and maintenance channels should be reserved. If there are a large number of impurities or high temperature environments in the working conditions, it is recommended to install additional filtration systems and cooling devices to extend the service life of the L2F series inclined shaft axial piston pump and maintain optimal performance.

  When installing and maintaining the inclined axis axial piston pump L2F series, it is necessary to strictly follow the operating specifications to ensure the safe operation of the equipment. Before installation, it is necessary to check the coaxiality between the pump shaft and the drive shaft, and the error should be controlled within the specified range to prevent premature damage to the bearings due to unbalanced load. Before the initial start-up, it is necessary to fill the pump housing with clean hydraulic oil and conduct a jog test to remove any air before it can officially operate. In daily maintenance, the temperature, viscosity, and pollution level of hydraulic oil should be regularly monitored, and the filter element and hydraulic oil should be replaced in a timely manner to prevent wear particles from entering the precision mating surface. Common faults such as abnormal noise, pressure fluctuations, or insufficient flow are often caused by air intake, filter blockage, or internal wear, and need to be investigated one by one. Maintaining a reasonable maintenance cycle and correct usage habits are key measures to ensure the long-term stable operation of the L2F series inclined shaft axial piston pump.
