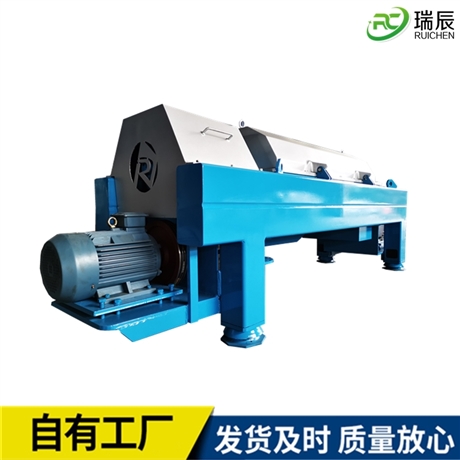

Metallurgical sludge centrifugal dewatering equipment, horizontal screw centrifugal dewatering machine, metallurgical sludge concentration dewatering integrated machine
Category:
Environmental Protection/Sludge treatment machinery/Horizontal spiral centrifuge
Model:
RCWL350
Brand:
Lishui
brand:
Lishui
model:
RCWL350
material:
Stainless Steel 304
Drive Type:
motor drive
Scope of Application:
Sludge dewatering process, centrifugal dewatering process, solid-liquid separation process
classification:
Centrifugal dehydration
Motor power:
15/7.5kw
Separation factor Fr value range:
High speed centrifuge
Place of Origin:
Lishui City, Zhejiang Province
Processing & Customization:
yes
processing capacity:
5-10
Order Number:
RCWL350-3
structural type:
floor-standing
Layout form:
horizontal
Structure and separation requirements:
Decantrifuge machine
degree of automation:
fully automatic
Is it a cross-border source of goods:
No
manufacturer:
Lishui Ruichen Environmental Protection Technology Co., Ltd
Retail Price
105,000.00USD
重量
kg
- Product Description
-
brand Lishui
model RCWL350
material Stainless Steel 304
Drive Type motor drive
Scope of Application Sludge dewatering process, centrifugal dewatering process, solid-liquid separation process
classification Centrifugal dehydration
Motor power 15/7.5kw
Separation factor Fr value range High speed centrifuge
Place of Origin Lishui City, Zhejiang Province
Processing & Customization yes
processing capacity 5-10
Order Number RCWL350-3
structural type floor-standing
Layout form horizontal
Structure and separation requirements Decantrifuge machine
degree of automation fully automatic
Is it a cross-border source of goods No
manufacturer Lishui Ruichen Environmental Protection Technology Co., Ltd
Description :
Metallurgical sludge centrifugal dewatering equipment, horizontal screw centrifugal dewatering machine, metallurgical sludge concentration dewatering integrated machine
Abbreviation: Horizontal screw centrifuge
Janebetween
The horizontal settling spiral discharge centrifuge consists of a high-speed drum, a screw and differential that rotate in the same direction as the drum and have a slightly higher or lower speed than the drum. It is pushed to the slag discharge port at the small end of the drum through the blades on the screw pusher, and the liquid phase overflows through the overflow hole at the large end of the drum. Continuously cycling in this way to achieve the goal of continuous separation.
principle
The horizontal settling spiral discharge centrifuge is mainly composed of a high-speed drum, a screw and differential that rotate in the same direction as the drum and have a slightly higher or lower speed than the drum. When the suspension to be separated enters the centrifuge drum, the high-speed rotating drum generates strong centrifugal force to settle solid particles with higher density than the liquid phase onto the inner wall of the drum. Due to the different rotational speeds of the spiral and the drum, there is a relative motion (i.e. speed difference) between the two. The relative motion between the spiral and the drum is used to push the solid phase deposited on the inner wall of the drum towards the outlet at the small end of the drum, and the separated clear liquid is discharged from the other end of the centrifuge. The function of the differential (gearbox) is to create a certain speed difference between the drum and the screw.
Centrifugal settling is the process of adding a mixture of solids and liquids into a cylindrical (or conical) rotor. Due to the centrifugal force, the solids settle in the liquid, and the settled material is further compressed by the centrifugal force, squeezing out the moisture to achieve the separation of solids and liquids. There is a difference between centrifugal settling and settling under gravity: in gravity settling, the acceleration of material settling is equal to the acceleration of gravity and is a constant value; In centrifugal settling, the centrifugal force depends on the radius of rotation of the particles. Therefore, when the angular velocity is equal, particles moving at different radii of rotation experience different centrifugal forces. attached figure
Metallurgical sludge centrifugal dewatering equipment horizontal screw centrifugal dewatering machine Metallurgical sludge concentration dewatering integrated machine advantages:
1. Widely applicable and adaptable to materials, it can be widely used in industrial sectors such as chemical, light industry, food, papermaking, mining, etc. It is suitable for liquid-solid separation of suspensions with a solid phase weight concentration of ≤ 10% (or a volume concentration of ≤ 50% after 24 hours of free settling), a solid particle equivalent diameter of ≥ 0.005-2mm, and a liquid-solid weight difference of ≥ 0.05 grams/cm3. It can effectively dehydrate materials such as calcium carbonate, calcium sulfate, polyvinyl chloride, distiller's grains, papermaking pulp, vegetable oil, kaolin, white mud, and sludge from environmental protection industries.
2. This machine is capable of continuous production, with high production capacity, low unit energy consumption, and high degree of automation, making it particularly suitable for industrial assembly line operations.
3. The entire separation process of the machine is carried out in a sealed condition, with no pollution or odor to the environment. Especially suitable for pipeline production.
4. The machine has a compact structure, small footprint, easy installation, and simple maintenance. The vulnerable parts - spiral outer edge sprayed with hard alloy or embedded with hard alloy or ceramic pieces - can greatly improve wear resistance and double the service life.
5. The parts of the machine that come into contact with materials are made of stainless steel, which has strong corrosion resistance.
AfterSalesService :
Key words:- Metallurgical sludge centrifugal dewatering equipment
