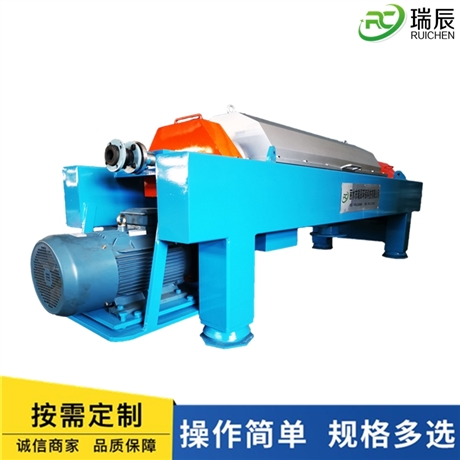

LW430 type horizontal screw centrifugal dewatering machine for underground sludge dewatering equipment in iron mines
Category:
Environmental Protection/Sewage treatment equipment/Sludge treatment equipment
Model:
WL430
Brand:
Ruichen Environmental Protection
model:
WL430
Processing & Customization:
yes
processing capacity:
8-25
Sludge recovery rate:
ninety-eight
Moisture content of treated sludge:
forty-five
Feed concentration:
15-20
Slurry concentration:
fifty-five
Filter belt linear velocity:
five
volume:
five
Total power:
twenty-three
work pressure:
sixty-five
Operating Temperature:
ninety
Equipment material:
Stainless Steel 304
floor area:
six
Overall dimensions:
4150*950*1350
weight:
three thousand and five hundred
Place of Origin:
Lishui City, Zhejiang Province
Item Number:
RCWL430-6
Additive ratio:
1000:1
Pool diameter:
five
Pool depth:
five
noise:
65 decibels
Is it a cross-border source of goods:
yes
manufacturer:
Lishui Ruichen Environmental Protection Technology Co., Ltd
Retail Price
285,600.00USD
重量
kg
- Product Description
-
model WL430
Processing & Customization yes
processing capacity 8-25
Sludge recovery rate ninety-eight
Moisture content of treated sludge forty-five
Feed concentration 15-20
Slurry concentration fifty-five
Filter belt linear velocity five
volume five
Total power twenty-three
work pressure sixty-five
Operating Temperature ninety
Equipment material Stainless Steel 304
floor area six
Overall dimensions 4150*950*1350
weight three thousand and five hundred
Place of Origin Lishui City, Zhejiang Province
Item Number RCWL430-6
Additive ratio 1000:1
Pool diameter five
Pool depth five
noise 65 decibels
Is it a cross-border source of goods yes
manufacturer Lishui Ruichen Environmental Protection Technology Co., Ltd
Description :
LW430 type horizontal screw centrifugal dewatering machine for underground sludge dewatering equipment in iron mines
It is a horizontal spiral discharge and continuous operation settling equipment. The working principle of this type of centrifuge is as follows: the drum and the screw rotate at a certain differential speed and in the same direction at high speed, and the material is continuously introduced into the inner cylinder of the conveying screw through the feeding pipe. After acceleration, it enters the drum, and the material to be separated is subjected to the centrifugal field force; Solid matter with a high specific gravity deposits on the wall of the centrifuge drum, and the screw conveyor continuously pushes the solid matter deposited on the drum, which is discharged from the drum through the drying zone. The lighter liquid is discharged through the overflow weir plate to achieve the goal of solid-liquid separation. As shown in the figure
The LW430 horizontal screw centrifugal dewatering machine is a centrifugal dewatering equipment for underground sludge in iron mines. Product features:
Good corrosion resistance: Depending on the material used, materials in contact with the material are 304, 316L, or TA2
Good wear resistance: The spiral blades are made of welded tungsten carbide hard alloy, spray welded tungsten carbide hard alloy, bonded ceramic plates, etc. The discharge port is nested with ceramic or hard alloy.
Differential control: Through frequency conversion and PLC control, it meets the control requirements of different materials and working conditions for the differential speed between the screw and the drum.
Comprehensive after-sales service: horizontal spiral discharge settling centrifuges with various specifications, cone angles, and aspect ratios meet the needs of material separation. The laboratory can conduct material selection tests. And provide timely on-site debugging and other services for users.
AfterSalesService :
Key words:- Underground sludge centrifugal dewatering equipment
