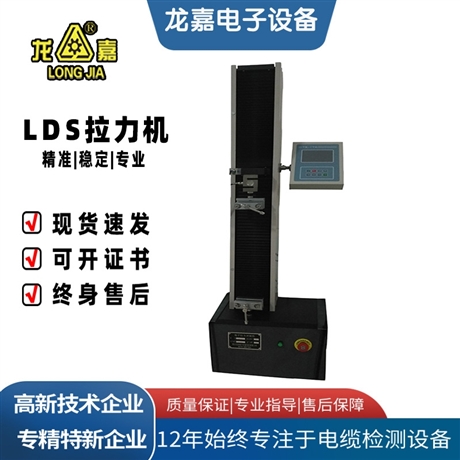

LDS tensile testing machine
Category:
mechanical equipment/testing machine/Tensile testing machine
Model:
LDS-5
Brand:
Longjia
Maximum stretch/compression:
800mm
Maximum test width:
400mm
Maximum Test Force:
5000N
level:
Level 1
Test force measurement range:
（2%-100%）FS
precision:
±1%
resolution:
1/500000 of full range (with only one resolution across the entire range, without any grading)
Displacement measurement accuracy:
±1%
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Maximum stretch/compression 800mm
Maximum test width 400mm
Maximum Test Force 5000N
level Level 1
Test force measurement range （2%-100%）FS
precision ±1%
resolution 1/500000 of full range (with only one resolution across the entire range, without any grading)
Displacement measurement accuracy ±1%
Description :
Introduction to LDS tensile testing machine
LDS series tensile testing machine, full nameDigital servo electronic tensile testing machineIt is a commonly used mechanical performance testing equipment in the industries of wire and cable, plastic, rubber, and insulation materials. It is mainly used to test indicators such as tensile strength, elongation at break, and tensile load of materials.
1、 Model meaning
- LLoad cell sensor for force measurement
- DDigital Display: Digital Display
- SServo servo motor drive
2、 Core Features
- servo driveSmooth operation, adjustable speed, high testing accuracy, and good repeatability
- Digital display operationThe large screen directly displays tension, displacement, and elongation, and can store simple data
- Specific purpose: Focus ontensile testSuitable for cable conductors, insulation sheaths PVC、 Rubber and other samples
- compact structureSingle arm/portal structure, small footprint, suitable for use in cable factory quality inspection rooms and laboratories
3、 Main testing items (commonly used in the cable industry)
- Conductor tensile strength, elongation at break
- Tensile strength and elongation of insulation and sheath
- Elongation, yield strength, maximum tensile strength, etc
AfterSalesService :
