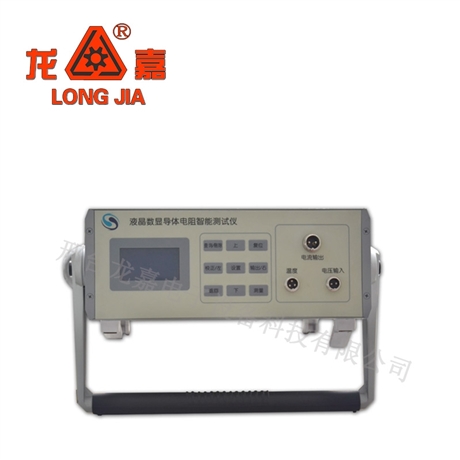

Intelligent resistivity tester for conductor resistance materials
Category:
Instrumentation/Electrical Instruments /bridge
Model:
QJ36C
Brand:
Longjia
measurement range:
0.0001μΩ－2kΩ
measurement accuracy:
± 0.05% (calibratable) (10-30 ℃), actual accuracy is higher than nominal accuracy, using 0.01 level BZ3/BZ6 standard resistors to measure 90% gear accuracy at 10-30 ℃ is better than 0.02%.
resistance range:
2.5 K Ω, 250 Ω, 25 Ω, 2.5 Ω, 250m Ω, 25m Ω, 2.5m Ω, 0.25 m Ω
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
measurement range 0.0001μΩ－2kΩ
measurement accuracy ± 0.05% (calibratable) (10-30 ℃), actual accuracy is higher than nominal accuracy, using 0.01 level BZ3/BZ6 standard resistors to measure 90% gear accuracy at 10-30 ℃ is better than 0.02%.
resistance range 2.5 K Ω, 250 Ω, 25 Ω, 2.5 Ω, 250m Ω, 25m Ω, 2.5m Ω, 0.25 m Ω
Description :
minimum resolution 0.0001μΩ range measurement range resolution Measure current accuracy class 0.1 mΩ 0-0.25 mΩ 0.0001μΩ 10A zero point zero five 1mΩ 0.25 mΩ-2.5mΩ 0.01μΩ 5A 10A zero point zero three 10mΩ 2.5mΩ-25mΩ 1μΩ 0.5A 1A zero point zero three 100mΩ 25mΩ-250mΩ 10μΩ 0.1A zero point zero three 1Ω 250mΩ-2.5Ω 0.1mΩ 0.1A zero point zero three 10Ω 2.5Ω-25Ω 1mΩ 10mA zero point zero two 100Ω 25Ω-250Ω 10mΩ 1mA zero point zero two 1KΩ 250Ω-2KΩ 100mΩ 0.1mA zero point zero three The QJ36C intelligent resistivity tester for conductor resistance materials is mainly used to measure the DC resistance of wire and cable conductors, copper bars, aluminum bars, copper rods, and aluminum rods
Designed and manufactured for resistance and conductivity, it can achieve the resistance measurement accuracy of QJ36, QJ19, and QJ55 bridges, measure ambient temperature, automatically convert temperature coefficients, and automatically query standard requirements when measuring wires and cables to determine whether they are qualified. Upgradeable to replace traditional devices such as QJ36, QJ57, QJ84, QJ44, SB2230, SB2232, PC36C, and micro ohmmeter. The main criteria are GB/T3048.2-2007、GB/T3048.4-2007、GB/T5585.1-2018、GB/T5585.2-2018、GB/T3952-2008、GB/T3953-2009、GB/T3954-2008、GB/T3955-2009、GB/T3956-2008 Wait.
AfterSalesService :
质保1年Key words:
