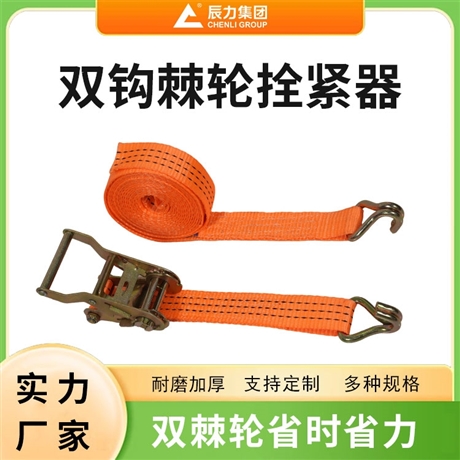

Chenli Group truck binding belt ratchet tightener, vehicle cargo fixing rope tightener, high-strength rope tightener
Category:
hardware/Rigging/Tensioner
Model:
1-10 tons
Brand:
Chen Li
Webbing width:
25mm-100mm
Rated working load:
1T-10T
Ribbon material:
polyester
Hook head type:
J hook/claw hook/flat hook
Surface Treatment:
Galvanized/spray painted
Execution Standard:
EN12195-2
safety factor:
2:1
Applicable Models:
Truck/flatbed truck/trailer
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Webbing width 25mm-100mm
Rated working load 1T-10T
Ribbon material polyester
Hook head type J hook/claw hook/flat hook
Surface Treatment Galvanized/spray painted
Execution Standard EN12195-2
safety factor 2:1
Applicable Models Truck/flatbed truck/trailer
Description :

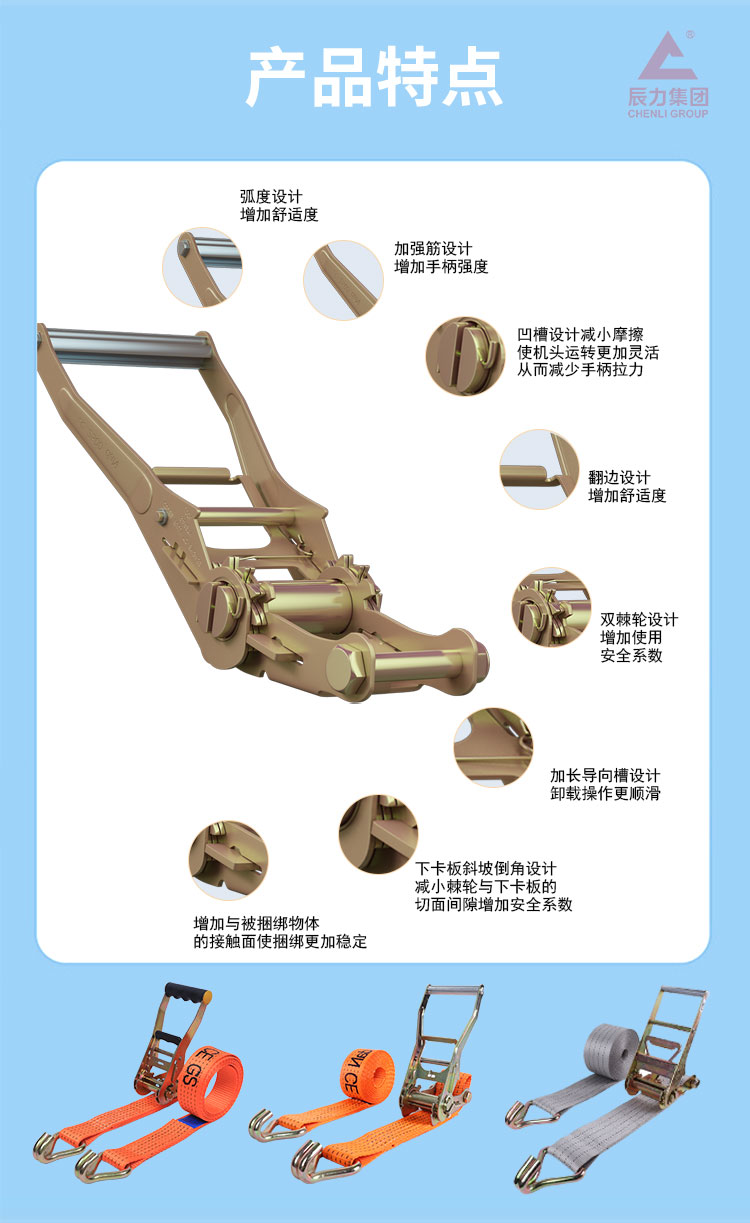

Ratchet tightener is a mechanical device used to fix and secure goods during transportation, mainly to solve the problems of cargo displacement and tipping caused by bumps, turns, or sudden braking during vehicle operation. It tightens and locks the webbing through the one-way transmission principle of the ratchet mechanism, ensuring the stability of the goods. Typical working conditions include long-distance logistics transportation, container fixation, engineering machinery handling, and heavy equipment loading. It is suitable for various types of trucks, flatbed trucks, and trailers and is a key component to ensure road transportation safety.This type of product usually consists of a ratchet handle, release lever, core shaft, webbing (made of polyester or polypropylene material), and metal hook head. The common width of the ribbon is 50mm or 75mm, and the breaking strength is usually between 3 tons and 10 tons. The working load should comply with international standards such as EN12195-2. Metal parts are often treated with galvanizing or spray coating to prevent corrosion, and ratchet gears are precision machined to ensure tight meshing and non slip. When selecting, attention should be paid to the wear resistance and UV resistance of the woven tape, as well as the thickness and welding process of the metal parts, to ensure that they are not easily deformed or broken under high-frequency use.
