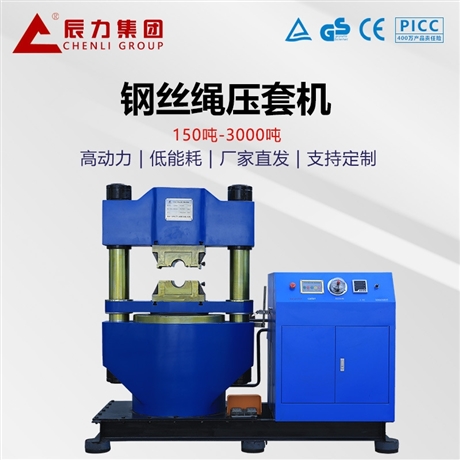

150-3000 ton steel wire rope pressing machine Chenli Group hydraulic pressing steel aluminum sleeve equipment

Description :

Chenli Group produces 150-3000 tons of laminating machines. Consultation hotline: 0312-8037111

The steel wire rope pressing machine is a key specialized equipment used for the production of steel wire rope rigging, mainly solving the problem of fixing and connecting strength of steel wire rope ends. This equipment uses a high-pressure hydraulic system to tightly press the metal casing onto the end of the steel wire rope, forming a firm circular or linear connection. It is widely used in typical working conditions such as lifting and hoisting, port machinery, mining lifting, and ship mooring. The compression machine produced by Chenli Group covers a large tonnage range of 150 tons to 3000 tons, which can meet the compression needs from small-diameter steel wire ropes to ultra large diameter heavy-duty cables, ensuring the safety and reliability of rigging in heavy-duty environments. It is a necessary industrial equipment for rigging processing plants and large-scale engineering projects.

  This series of wire rope pressing machines adopts a high-strength frame structure, equipped with a precision hydraulic pump station and multi-stage pressure cylinder body, ensuring stable pressure output and no leakage. The equipment supports pressing two common materials, steel sleeve and aluminum sleeve. The mold has undergone special heat treatment process, with strong wear resistance and easy replacement. The execution standards comply with relevant manufacturing specifications for lifting machinery components, with a pressure control accuracy of up to ± 1%, effectively avoiding damage to the rope core caused by overpressure or slippage caused by undervoltage. The wide pressure adjustment range of 150-3000 tons allows the same equipment to adapt to various specifications of steel wire rope diameters, from common 6mm-20mm to special coarse diameter cables, all of which can be pressed and formed in one go without frequent replacement of the main engine, improving the compatibility and operational efficiency of the production line.

  When selecting a steel wire rope compression machine, the required tonnage should be determined based on the actual maximum breaking force of the steel wire rope and the material of the casing. For ordinary lifting rigging, the 150-500 ton model can meet most of the needs; For heavy applications such as large bridge cables and offshore platform mooring chains, it is necessary to choose a 3000 ton heavy-duty press with a capacity of over 1000 tons. Please note that this device is specifically designed for cold pressing processes and is not suitable for hot casting or wedge joint production. Compared with manual tapping or small hydraulic pliers, Chenli Group's large crimping machine has significant advantages in concentricity control and consistent crimping length, making it suitable for batch standardized production. When purchasing, it is important to focus on whether its stroke opening size matches the length requirements of the rigging to be processed.
