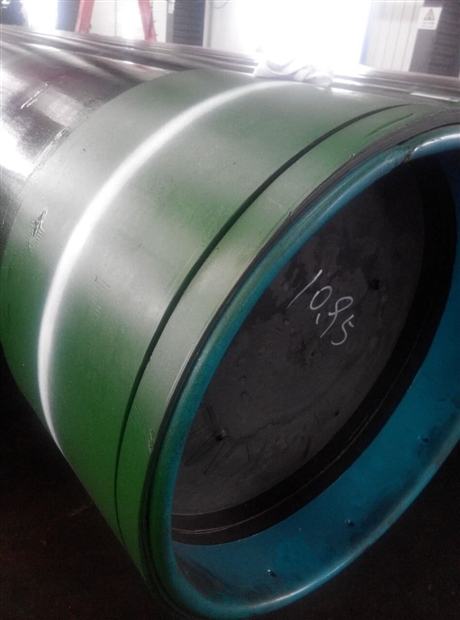

508mm large-diameter petroleum casing, high-strength and corrosion-resistant oil well pipe

Description :

  508mm large-diameter oil casing is a key pipe material used to support the wellbore and isolate the formation during oil and gas well drilling. This product mainly solves engineering problems such as wellbore collapse and formation fluid channeling in deep and ultra deep well operations, and is suitable for surface casing or technical casing conditions in onshore and offshore oil fields. Its core advantage lies in its large diameter design, which can meet the spatial requirements of high displacement drilling fluid circulation and subsequent completion operations, ensuring the safety and continuity of drilling operations. It is the basic equipment for building wellbore integrity under complex geological conditions.

  The outer diameter standard of the oil casing is 508mm (20 inches), usually following the API Spec 5CT international execution standard. The material is mostly made of steel grades such as J55, K55, N80, L80, or P110, which have high yield strength and tensile strength. The pipe body undergoes strict heat treatment process to ensure uniform metallographic structure and good resistance to crushing and internal pressure. The connecting thread is usually BTC (short round thread) or STC (long round thread), and some high-end requirements can be matched with direct connection threads for reliable sealing performance. Each pipe undergoes hydrostatic testing and non-destructive testing (ultrasonic or magnetic particle inspection) to ensure the absence of defects such as cracks and interlayers, meeting the stringent quality certification requirements of the oil and gas industry.

  When selecting, the specific steel grade and wall thickness should be determined based on the well depth, formation pressure coefficient, and drilling fluid density. The 508mm specification is commonly used for surface cementing from shallow to medium deep layers. If used for deeper well sections, it is necessary to focus on verifying the anti collapse strength. Compared with smaller diameter casing, larger diameter casing requires higher centering during the insertion operation and needs to be used in conjunction with high-quality stabilizers. If there is a risk of H2S or CO2 corrosion in the working conditions, sulfur resistant materials or anti-corrosion coating treatment should be prioritized. Not applicable to non pressure bearing structural support scenarios. When purchasing, it is necessary to clarify the joint type and buckle protection requirements to avoid thread damage during transportation that may affect on-site connection efficiency.

  The installation of oil casing must strictly follow the drilling engineering design plan. During the process of lowering the casing, the lowering speed should be controlled to avoid excessive excitation pressure that may cause wellbore leakage or jamming. When connecting, a dedicated torque meter should be used to fasten the buckle to ensure that the recommended tightening torque value is reached and the sealing integrity is guaranteed. Daily maintenance mainly focuses on inventory management stage, which requires keeping the storage site flat and dry, applying anti rust grease to the threaded parts and covering them with protective caps to prevent rust and mechanical collision. Before use, the integrity of the threads and the straightness of the pipe body should be checked again. Common faults such as thread slippage or pipe deformation are often caused by improper operation. Standardized construction can effectively extend the service life of 508mm oil casing and ensure the safety of the entire life cycle of the oil well.
