Chengdu medium efficiency filter Chengdu medium efficiency non-woven fabric filter Chengdu F5F6F7F8 bag filter
Category:
mechanical equipment/Filtering equipment/filter
Model:
CD-5
Brand:
Chengjing High Tech
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
Chengdu medium efficiency filter; Chengdu Zhongxiao Non woven Filter; Chengdu F5F6F7F8 bag filter

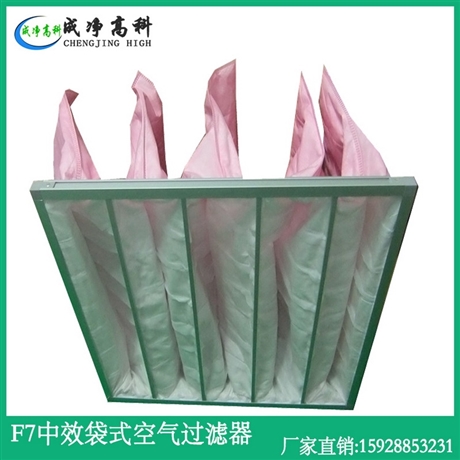

Medium efficiency bag air filter
Air filter bag in effect
Features Features
● Can be reused multiple times
● Low resistance and high air volume
Widely used in intermediate filtration of air conditioning systems
●Adopts reusable times
●Responding to small resistance, air
●Widely used in air conditioning system of intermediate filtration
Composition materials and operating conditions
Materials and operating conditions
Frame material: Aluminum alloy or galvanized sheet outer frame
●External frane：Aluminum alloy steel or frame
● Filter material: New composite non-woven fabric
●Filter material: new composite nonwoven fabric
Filter material color: F5 (white) 45% (light yellow), F6 (green) 65% (orange red)
F7 (pink) 85% (purple), F8 (light yellow) 95% (dark yellow)
●Liao color: The F5 (white) 45% (yellow), F6 (green) 65% (orange),
F7 (pink) 85% (purple), F8 (yellow) 95% (deep yellow)
Sealing strip: Ethyl acetate
●Gasket：EVA
● Operating temperature and humidity: 80 ℃, within 80%
● Use the highest temperature, humidity: 80 ℃, 80%
Model size and other parameters
Standard specification
Model number External Dimensions (mm) Rated air flow (m3/h) Initial resistance (Pa) Efficiency (class) Filter material color Liao color Number of pockets CJ-M1-C1 495×295×500mm20″×12″×20″ 1000m3/h 50Pa F555Pa F660Pa F765Pa F8 40-50% F560-70% F675-85% F785-95% F8 (colorimetric method) colormetric White F5White Green F6Green Pink F7pink Light Yellow F8yellow five CJ-M1-C2 495×495×500mm20″×20″×20″ 1800m3/h five CJ-M1-C3 595×295×500mm24″×12″×20″ 1300m3/h six CJ-M1-C4 595×495×500mm24″×20″×20″ 2200m3/h six CJ-M1-C5 595×595×500mm24″×24″×20″ 2600m3/h eight CJ-M1-C6 495×295×600mm20″×12″×24″ 1200m3/h five CJ-M1-C7 495×495×600mm20″×20″×24″ 2200m3/h five CJ-M1-C8 595×295×600mm24″×12″×24″ 1600m3/h six CJ-M1-C9 595×495×600mm24″×20″×24″ 2700m3/h six CJ-M1-C10 595×595×600mm24″×24″×24″ 3200m3/h eight *Can customize filters of different specifications and models according to user requirements
According to user requirements to customize different specifications and types of filters
