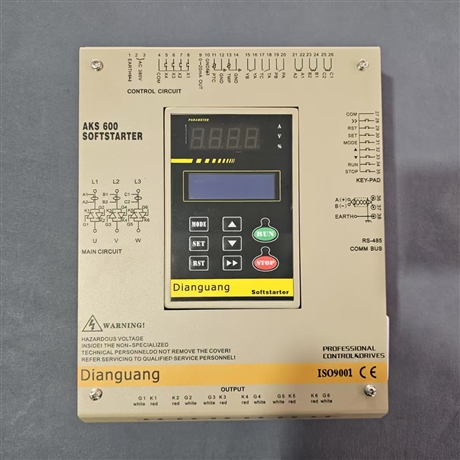

Electric AKS600 soft starter AKS-601/400A Chinese protector
Category:
Electrical Engineering/Low voltage electrical appliances/starter
Model:
AKS 600
Brand:
electric light
Rated working voltage:
AC 380V
Control method:
Microprocessor digital control
Startup method:
Voltage ramp start/current limiting start
communication interface:
RS-485 (COMM BUS)
display mode:
Digital tube+LED indicator
Analog output:
0-20mA
Temperature protection:
Support PTC thermistor input
Protection level:
IP20 (recommended for installation inside the cabinet)
certification standard:
ISO9001, CE
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Rated working voltage AC 380V
Control method Microprocessor digital control
Startup method Voltage ramp start/current limiting start
communication interface RS-485 (COMM BUS)
display mode Digital tube+LED indicator
Analog output 0-20mA
Temperature protection Support PTC thermistor input
Protection level IP20 (recommended for installation inside the cabinet)
certification standard ISO9001, CE
Description :
The Electric Light AKS600 series is a professional three-phase AC motor soft start controller designed to solve the problems of grid impact and mechanical damage caused by direct starting of high-power motors. This device adopts advanced microprocessor control technology and uses thyristor (SCR) voltage regulation to achieve smooth and impact free start and stop of the motor, effectively extending the service life of mechanical equipment and reducing maintenance costs.

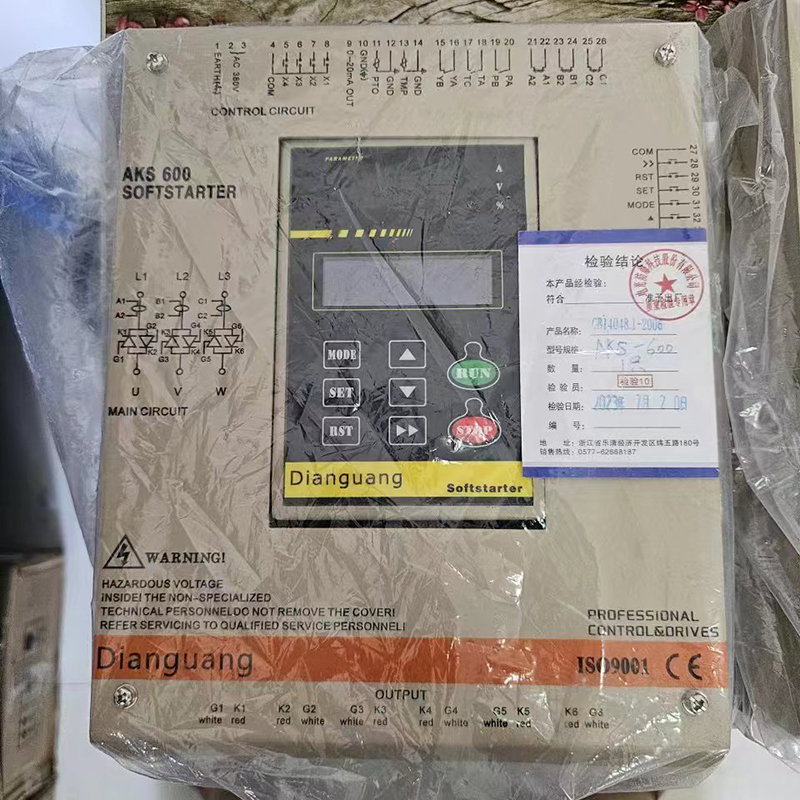

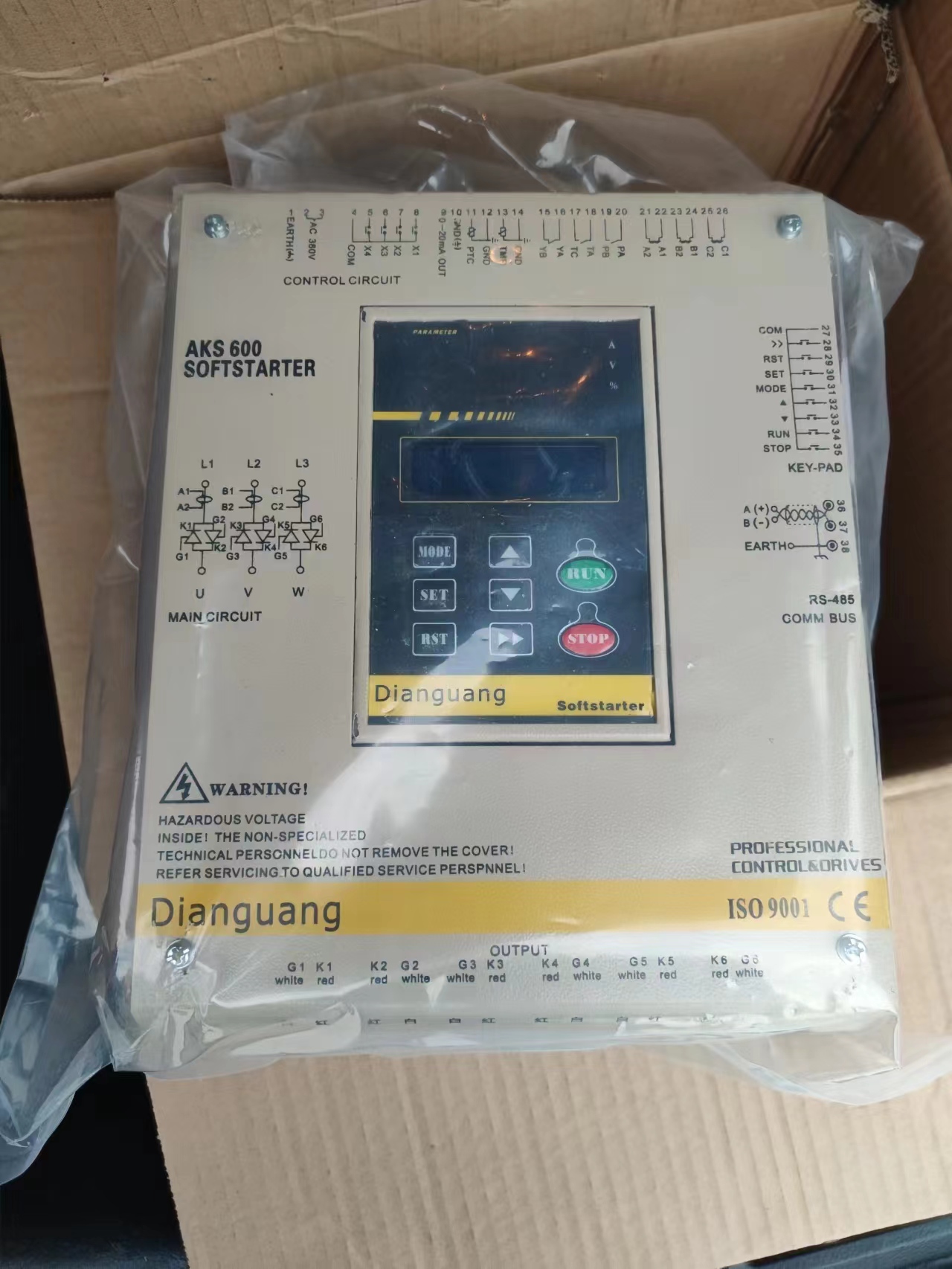

The product is equipped with a clear digital display screen on the front, which can display the operating current (A), voltage (V), and load percentage (%) in real time. Combined with multifunctional LED indicator lights, the device's operating status is clear at a glance. The user-friendly membrane button panel includes MODE, SET, RST, and RUN/STOP keys, supporting local parameter settings and operations. In addition, a standard RS-485 communication interface (COMM BUS) is reserved on the right side of the panel, supporting communication protocols such as Modbus, making it easy to connect to DCS or PLC systems for remote monitoring and automation management.
In terms of safety protection, AKS 600 has multiple built-in protection mechanisms, including overload, phase loss, overcurrent, overheating (TMP terminal supports PTC thermistor input) and other fault detection functions, ensuring the safe operation of the motor and load. Its main circuit adopts L1/L2/L3 incoming line and U/V/W outgoing line design, suitable for AC 380V industrial standard voltage environment. The control circuit provides abundant I/O terminals, supporting external buttons, relays, and analog signals (such as 0-20mA output).
This soft starter is widely used in heavy-duty or high inertia load applications such as fans, water pumps, compressors, crushers, mixers, and conveyor belts. Whether in the municipal water supply, HVAC, mining and metallurgy, or petrochemical industries, Dianguang AKS 600 can provide stable and reliable motor starting solutions. The equipment casing complies with ISO9001 quality system certification and CE safety standards, with a compact structure and easy installation, making it an ideal upgrade choice to replace traditional star delta starters and autotransformer pressure reducing starters.
