Electric Light Technology BKC-100 Control Transformer 100VA 660V to 36V Machine Tool Equipment Voltage Reduction Isolation Power Supply
Category:
energy/Transformers, inductors/Control transformer
Model:
BKC-100
Brand:
Electro optic Technology
rated power:
100VA
rated frequency:
50-60Hz
input voltage:
660V-1140V
output voltage:
36V
Product Type:
Control Transformer
Installation method:
Bottom plate screw fixation
cooling method:
Natural air cooling
Protection level:
IP20
insulation class:
B-level/F-level
Applicable scenarios:
Machine tools/mechanical equipment/automation control
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
rated power 100VA
rated frequency 50-60Hz
input voltage 660V-1140V
output voltage 36V
Product Type Control Transformer
Installation method Bottom plate screw fixation
cooling method Natural air cooling
Protection level IP20
insulation class B-level/F-level
Applicable scenarios Machine tools/mechanical equipment/automation control
Description :

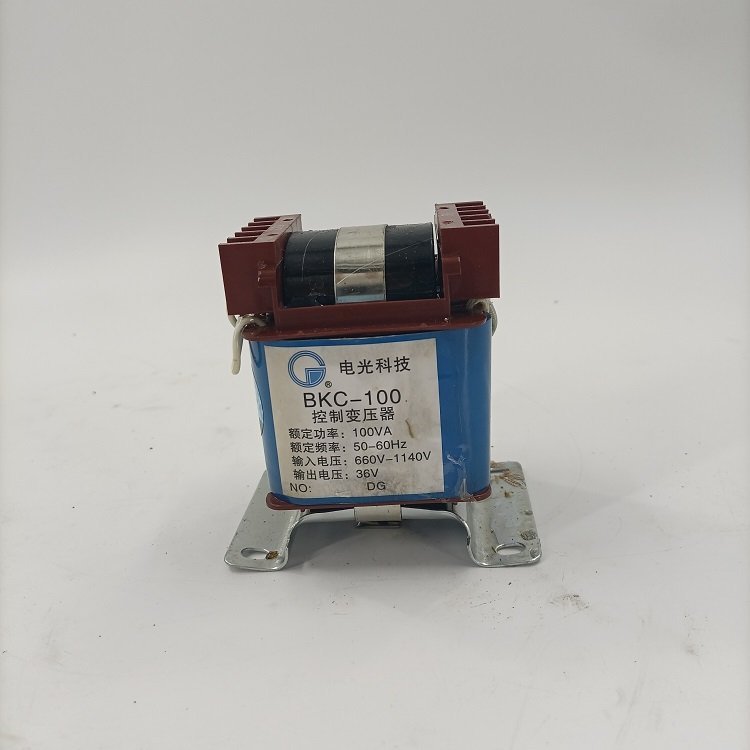

This product is a BKC series BK type control transformer produced by Electro Optical Technology, with a rated power of 100VA, designed specifically for industrial electrical control systems. This transformer is mainly used to convert higher input voltages (such as 660V or 1140V) into lower safety control voltages (such as 36V), and is widely used in various machine tools, mechanical equipment, automated production lines, and power distribution systems as a control power source for local lighting, indicator lights, relays, and contact coils.

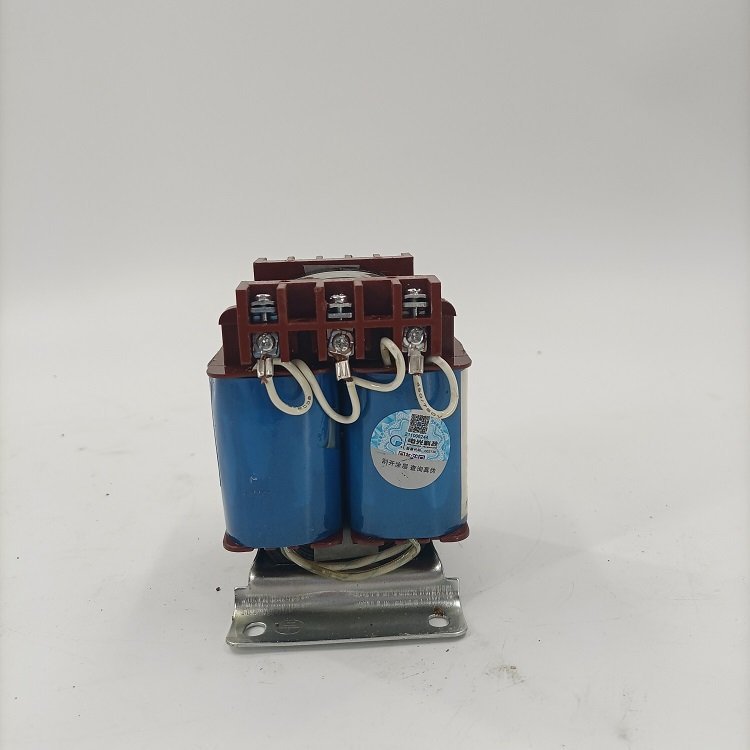

The product uses high-quality cold-rolled silicon steel sheets to stack the iron core, combined with high-strength insulation skeleton and high-purity copper wire winding, ensuring efficient energy conversion rate and low temperature rise. Its structure is compact, easy to install, and equipped with standard metal mounting brackets at the bottom, which can be firmly fixed inside the electrical control cabinet. The shell has been treated with immersion paint, providing excellent moisture resistance, dust resistance, and vibration resistance, making it suitable for complex industrial site environments.
This transformer supports a wide frequency range of 50-60Hz, with an input voltage ranging from 660V to 1140V and an output voltage stable at 36V, which meets industrial safety voltage standards and effectively ensures the safety of operators and equipment. Suitable for control circuit scenarios that require electrical isolation, voltage conversion, and impedance matching, it is a key foundational component in industrial automation and mechanical electrification transformation.
