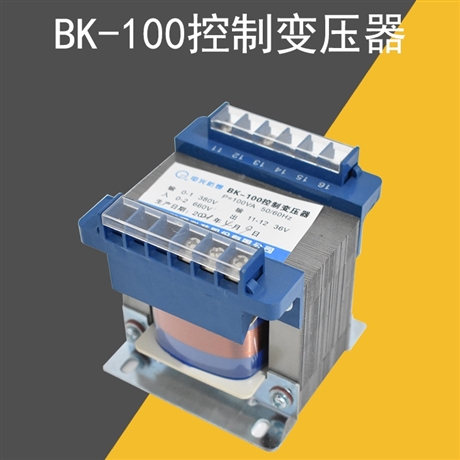

Electric Explosion proof BK-100 Control Transformer 380V/660V to 36V 50/60Hz Industrial Machine Lighting Power Supply
Category:
energy/Transformers, inductors/Control transformer
Model:
BK-100
Brand:
Electro optic explosion-proof
Rated capacity:
100VA
operating frequency:
50/60Hz
input voltage:
380V / 660V
output voltage:
36V
output current:
2.8A
Input terminal number:
0-3 (380V), 0-5 (660V)
Output terminal number:
12-15 (36V)
Product Type:
Dry type control transformer
cooling method:
Air self cooling
Retail Price
9,000,000.00USD
重量
kg
- Product Description
-
Rated capacity 100VA
operating frequency 50/60Hz
input voltage 380V / 660V
output voltage 36V
output current 2.8A
Input terminal number 0-3 (380V), 0-5 (660V)
Output terminal number 12-15 (36V)
Product Type Dry type control transformer
cooling method Air self cooling
Description :

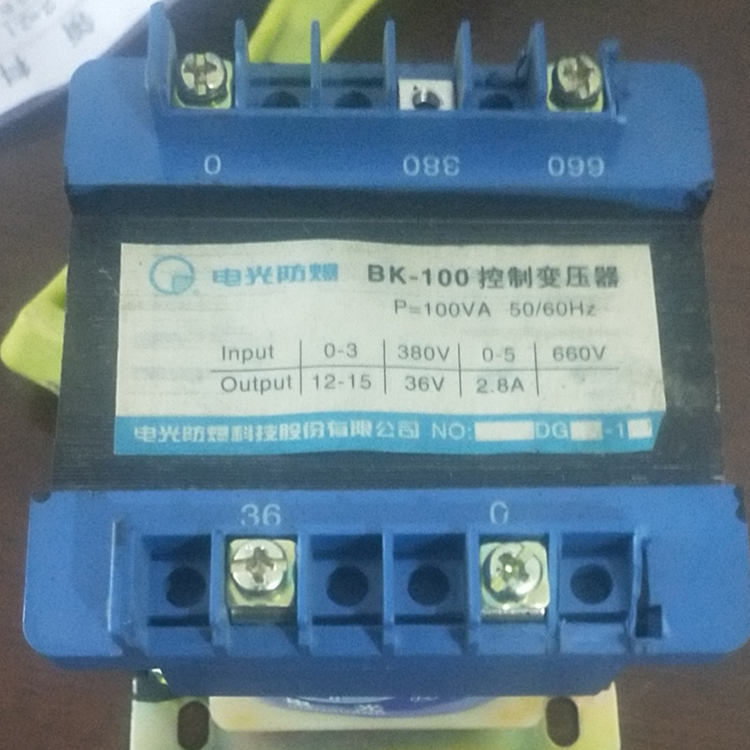

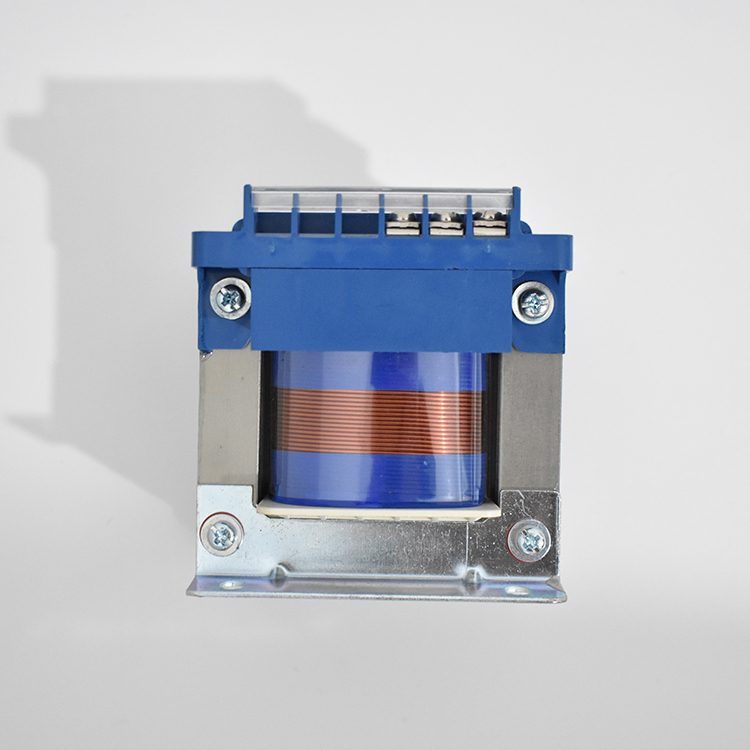

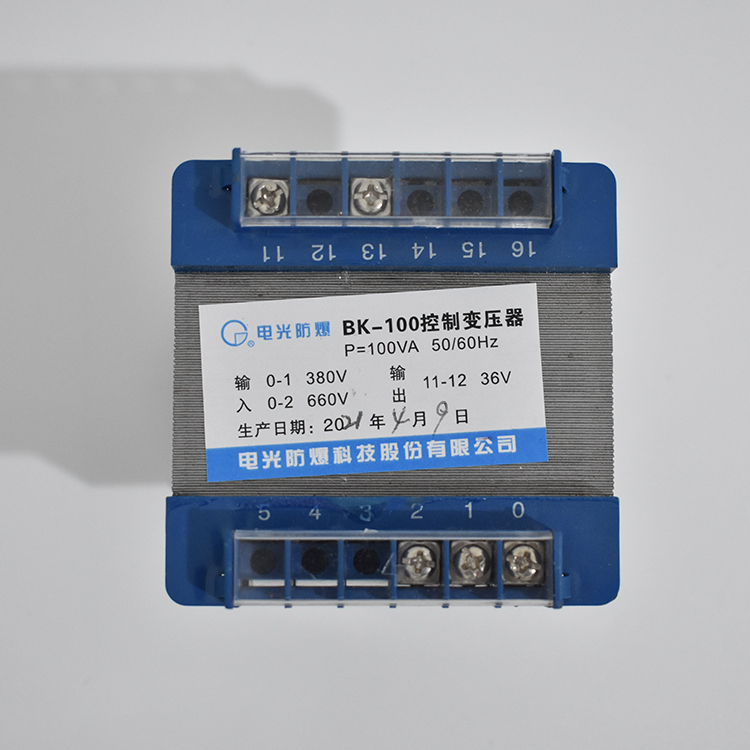

This product is the BK series control transformer produced by Electro Optical Explosion proof Technology Co., Ltd., model BK-100, with a rated capacity of 100VA. The transformer is designed specifically for industrial electrical control systems and is suitable for AC 50Hz or 60Hz circuits. It is used as a control power supply, local lighting, and indicator light power supply for machine tools, mechanical equipment, and automated production lines.
The core advantage of the product lies in its wide voltage input adaptability. The primary winding provides two tap options, 380V (terminals 0-3) and 660V (terminals 0-5), which can flexibly match different industrial power grid environments and ensure stable operation of the equipment under complex voltage conditions. The secondary output is a standard safe voltage of 36V (terminals 12-15), with a rated output current of 2.8A, which complies with industrial safety electricity regulations and effectively ensures the safety of operators and equipment. The transformer adopts high-quality silicon steel sheet iron core and high-strength insulation material winding, which has the characteristics of low no-load loss, high conversion efficiency, and low temperature rise. The layout of external wiring terminals is clear, with clear markings (such as 0, 380, 660, 36, etc.), making it easy to install and maintain quickly on site. The overall structure is compact, with high mechanical strength and good seismic performance, suitable for vibration environments in factory workshops. Widely used in industries such as mechanical manufacturing, metallurgy, chemical engineering, and power, it is an indispensable basic electrical component in various distribution cabinets, control consoles, and automation equipment.
