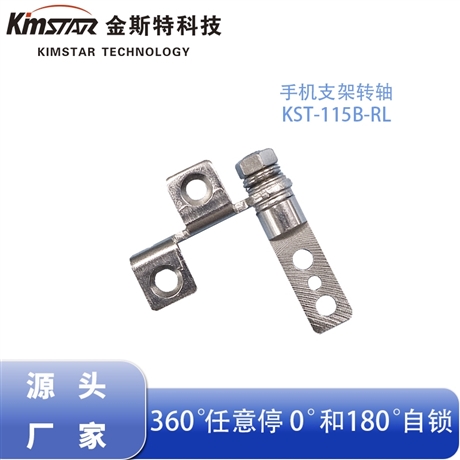

Laptop hinge drone medical equipment hingeL type damper source factory

Description :

Laptop specific pivot shafts, drone gimbal pivot shafts, and medical equipment L-shaped damping hinges are essential precision hardware core accessories in the fields of digital electronics, aviation accessories, and medical equipment. They are mainly used for laptop screen opening and closing positioning, drone lens angle adjustment, and various medical equipment bracket flipping and fixing. Relying on the L-shaped stable structure and balanced damping effect, they achieve angle adjustment at will and stable stability without shaking. With solid workmanship and strict quality standards, they are widely used in many industries such as consumer digital, intelligent aerial photography, and medical equipment.

1、 Product Design Proposal

This series of L-shaped damping shafts and precision hinge hinges are built based on mature industrial design concepts, fully fitting the installation structure and usage scenarios of the three major categories of laptops, drones, and medical equipment. For laptops, a lightweight and compact design is adopted to perfectly adapt to the narrow space inside the body, taking into account the large angle opening and closing of the screen and the overall lightweight texture of the body, meeting the assembly needs of various models such as business laptops, gaming laptops, and lightweight laptops. Focusing on lightweight and anti shake design for drone equipment, it is compatible with multi angle steering adjustment of aerial photography gimbal, taking into account the need for weight reduction and practicality for outdoor use. For medical devices, we strictly follow the assembly specifications for medical equipment, with a regular and safe structure that can be adapted for angle adjustment of diagnostic and treatment brackets, monitoring instruments, portable medical equipment, and other devices.

The product adopts a classic L-shaped design as a whole, with strong installation adaptability. The opening and closing angle, swing amplitude, and installation hole position can be customized according to the customer's equipment structure. At the same time, built-in wiring slots can be designed as needed to facilitate the orderly arrangement of internal circuits of the equipment and avoid circuit compression and wear. Whether it is daily digital product assembly, high-precision medical equipment, or outdoor aerial photography equipment matching, personalized structural customization can be completed according to actual usage needs, fully matching the R&D and mass production standards of different devices.

2、 Torque performance

The torque of the product has been precisely calculated and repeatedly calibrated, and the adaptive force has been divided according to different equipment usage scenarios. The overall torque output is stable and uniform, with consistent force throughout the entire process, and there will be no inconsistent tightness. The torque of the laptop shaft is moderate, making it easy and smooth to open and close the screen in daily life. The opening and closing process feels comfortable, and it will not automatically rebound or slide at any angle, effectively avoiding screen shaking and deviation. The dedicated damping shaft for drones has a tight and balanced torque, which can firmly fix the angle of the aerial camera. During flight, it is not afraid of slight vibrations, with precise and stable positioning, ensuring smooth and clear shooting images.

The L-shaped damper used in medical equipment has delicate and controllable torque, and the adjustment process is smooth and easy for medical staff to accurately adjust the angle of equipment use. The use process is stable and reliable. Our factory can undertake various non-standard torque customization services, and flexibly adjust the damping size according to the equipment's weight, usage intensity, and usage habits, accurately matching the user feel and fixed requirements of various high-end equipment.

3、 Internal structural characteristics

The entire series of shafts adopts a reinforced L-shaped combination internal structure, with a streamlined and solid overall structure, tight and firm assembly, and is not prone to looseness, misalignment, or loose frames during long-term use. The core rotating axis is made of high-quality stainless steel material, which has been quenched, hardened, and finely polished to have extremely strong bending and compression resistance. It is not easily deformed or broken during high-frequency rotation, and has extremely strong durability. Internally equipped with high wear-resistant damping friction components, low wear loss, uniform and stable force distribution, and long-term use still maintains the original damping effect.

The external structure of the product has undergone precision stamping and milling processing, with a flat and regular surface, reserved standard installation and positioning, simple and convenient assembly, and suitable for automated assembly line production. At the same time, a limit protection structure can be installed to accurately control the maximum opening and closing angle, effectively preventing problems such as excessive rotation causing equipment shell collision and internal circuit damage, comprehensively improving the safety and practicality of product use from a structural perspective.

4、 Stability in use

All finished shaft products have undergone large-scale repeated opening and closing life testing. After tens of thousands of swing tests, the damping force attenuation amplitude is extremely low. Despite long-term high-frequency use, they still maintain excellent hovering and fixing ability, solving common faults such as loose laptop screens, drone gimbal movement, and medical bracket tilting from the root. The rotation process of the shaft is smooth and unobstructed, with silent rotation and no noise, no jamming or stiff resistance, providing a quiet and comfortable user experience.

The product has excellent environmental adaptability and can be used stably in various scenarios such as conventional temperature difference environments and indoor and outdoor environments. Temperature changes will not affect the performance of the internal damping structure, and the torque and positioning effects will always be consistent. Especially suitable for harsh working conditions such as outdoor drone operations and long-term use in medical facilities, it operates stably 24/7 and has a long service life.

5、 Salt spray anti-corrosion performance

Considering the outdoor use of drones, humid environments in medical facilities, and long-term home office use of digital products, all metal components are treated with multi-layer environmentally friendly anti rust and anti-corrosion surface technology. The surface protective layer is dense and uniform, with excellent oxidation and corrosion resistance. After professional standard salt spray testing verification, the product is not prone to rusting, oxidation fading, metal surface peeling and other phenomena in humid environments, humid air, and slightly corrosive environments.

Even if it is placed in damp indoor, outdoor, or medical disinfection environments for a long time, it can still maintain its good appearance and stable performance, effectively delay the aging rate of metal, greatly extend the overall service life of the shaft, and reduce the cost of equipment maintenance and replacement in the later stage.

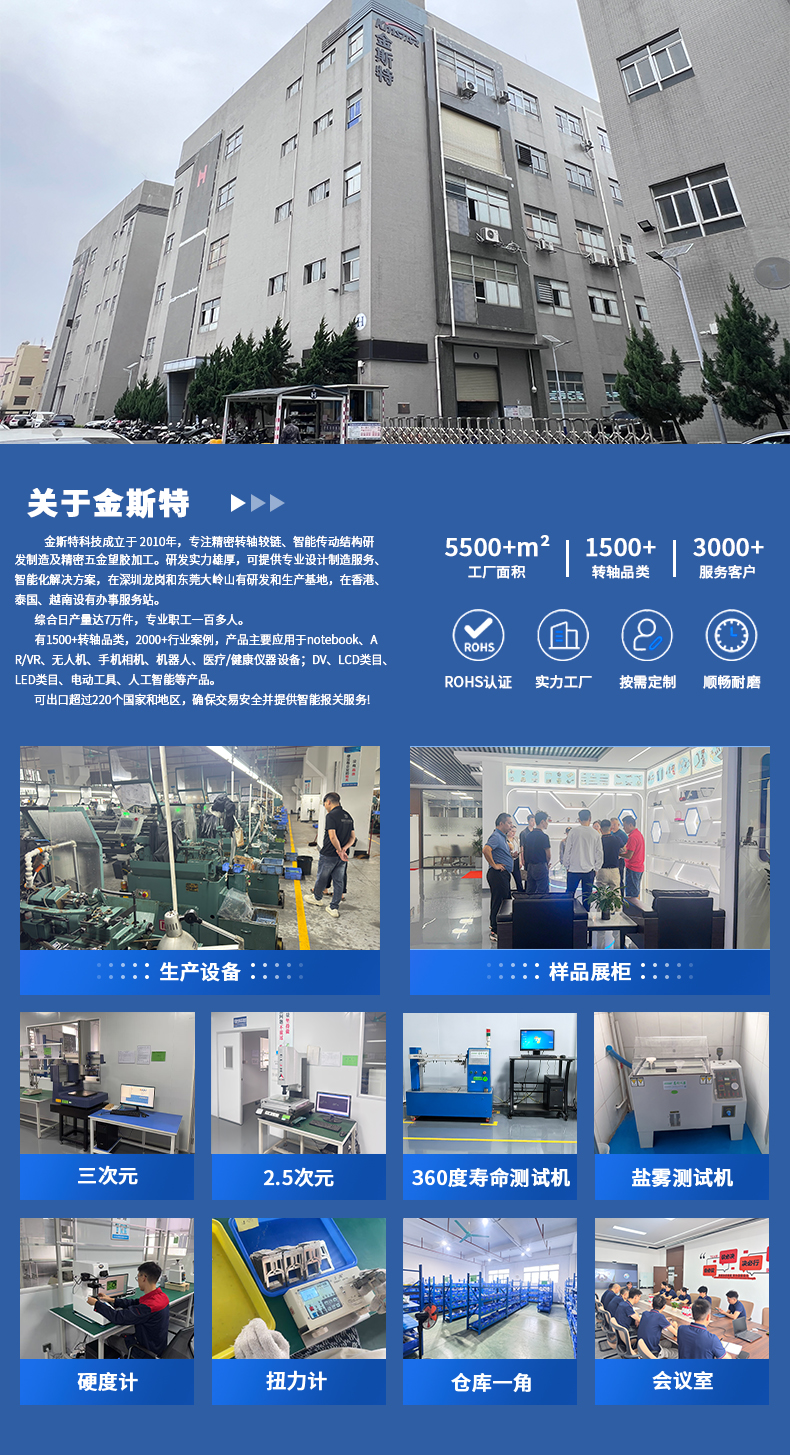

6、 Introduction to Strength Source Factory

Our factory is a professional manufacturer of precision damping hinges that integrates research and development, production, and sales. We have been deeply involved in the precision hinge industry for many years, focusing on the production of laptop hinge shafts, drone gimbal hinge shafts, medical device L-shaped dampers, and various precision hinge accessories. We are deeply involved in the three mainstream supporting fields of digital electronics, aerial photography, and medical equipment. With extensive industry production experience, our product supply covers many domestic and foreign brand manufacturers.

The factory has built its own standardized production workshop, equipped with a complete set of high-precision CNC machining equipment, precision polishing equipment, and professional performance testing instruments. From raw material procurement screening, precision machining and forming, internal structure assembly to full performance inspection of finished products, every production process strictly controls quality accuracy, strictly implements standardized production control, and fully guarantees the unified quality and stable performance of each batch of shipped products.

Our factory supports various irregular sizes, special angles, customized torques, and medical grade standard shafts for quick sampling based on drawings and samples. The sampling cycle is short, and the production capacity for large orders is sufficient, resulting in timely and efficient delivery. We adhere to the business philosophy of precision production, quality-oriented, and pragmatic win-win. With high cost-effective products, rigorous quality control system, and perfect pre-sales and after-sales docking services, we provide one-stop precision damping shaft matching solutions to customers nationwide and even globally, fully assisting major equipment manufacturers in improving product quality and market competitiveness.

if neededContact: Manager Guo 17375546868
