Industrial equipment, electronic devices, 180 degree limit shaft, middle wire hole, desk lamp, hardware damper manufacturer

Description :

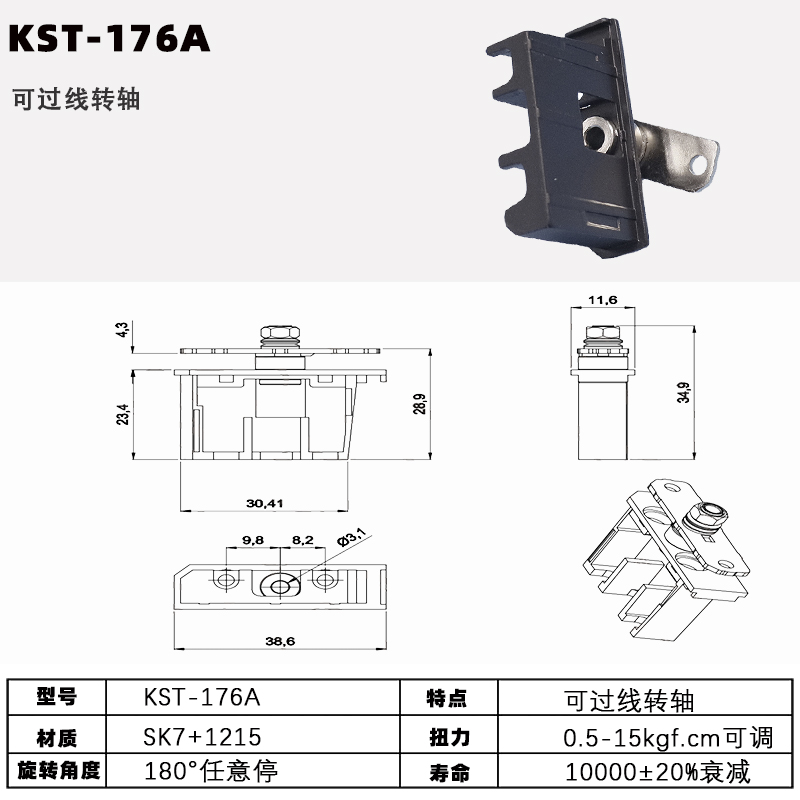

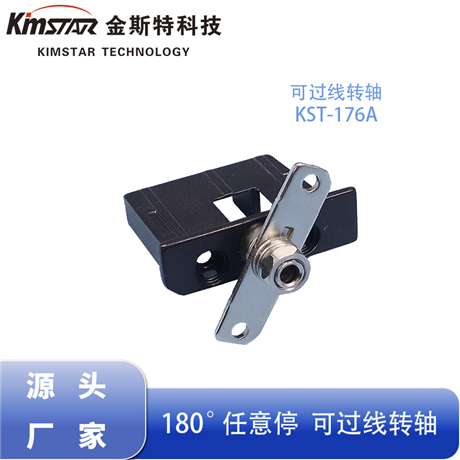

1、 Axis design scheme: 180 degree limit+intermediate wire dual function structure, precise adaptation to multiple scenarios

In response to the diversified usage needs of precise positioning of industrial equipment, wiring and storage of electronic devices, and lightweight and beautiful desk lamps, our company has created a dedicated 180 degree limit middle wire hole damping shaft design scheme. Unlike ordinary infinite and solid shafts, it adopts a hollow wire+mechanical limit integrated structure design, which balances practicality, safety, and equipment adaptability, perfectly adapting to the assembly standards of civil, commercial, and industrial equipment.

The highlight of the core functional design is outstanding: it comes with a precise 180 degree mechanical limit structure, which strictly limits the rotation angle of the equipment, prevents excessive flipping and damage to the circuit and body structure, and avoids equipment failures caused by operational errors. It is particularly suitable for precise operation of industrial instruments, anti overturning of desk lamps, and anti folding scenarios of electronic device flip covers; A standard hollow wire hole is reserved at the center of the shaft, supporting built-in threading of power lines, data lines, and signal lines, achieving a hidden layout of the circuit, completely solving the problems of traditional equipment circuit exposure, entanglement, pulling and wear, dust accumulation and disorder, protecting the safety of the circuit while greatly improving the overall cleanliness and delicacy of the equipment.

The overall structure is compact, lightweight, and does not occupy internal space of the device. The rotation damping is uniform and soft, and the opening and closing angle adjustment is smooth and quiet. Release it to lock and hover, and the angle positioning is precise and not loose. The product supports personalized customization and can flexibly adjust the torque size, wire hole diameter, limit accuracy, installation hole position, and external dimensions according to the specifications of the desk lamp, industrial equipment size, and electronic equipment load-bearing requirements. The standardized installation structure is suitable for automated batch assembly and has strong universality, which can meet the production and matching needs of multi scenario equipment.

2、 Material Structure: High strength industrial grade material, hollow structure that balances lightweight and durability

This 180 degree limit wire damping shaft is constructed with industrial grade high-precision materials, selected from high-quality high hardness carbon steel and alloy precision substrates. The material has uniform density, high toughness, deformation resistance, and wear resistance, ensuring the stability of the shaft for long-term rotation, frequent limiting, and repeated wiring from the source of the substrate. It eliminates problems such as deformation, rapid torque attenuation, limit failure, and hole wear of ordinary shafts. All raw materials have undergone strict screening and impurity purification treatment, with no inferior recycled materials. The material purity is high and meets the standards for industrial equipment and civilian electronic product hardware materials. It is safe, durable, and free of precipitation.

Adopting integrated forging and forming technology, the hollow wire hole position is regular and smooth, without burrs or sharp edges, and the threading is smooth without cutting, effectively protecting the outer skin of the equipment circuit and eliminating the hidden danger of circuit damage and short circuit. The main body of the shaft and the limit structure are integrally formed, with no weak points in the joints. The limit card is precise and stable in force, and long-term repeated limit will not loosen or fail. The axis damping part has undergone high-frequency quenching hardening and precision polishing treatment, combined with CNC micro machining technology, resulting in uniform clearance between components, stable damping friction, and no jamming or abnormal noise during rotation. The surface has undergone multiple layers of anti rust electroplating and anti-oxidation strengthening treatment, possessing good moisture resistance, anti rust, and anti-corrosion capabilities. It can adapt to the humid environment of workshops, industrial environments, and daily home environments for long-term use, and is not easy to rust, peel off, or age.

3、 Core performance advantages: precise positioning, safe wiring, stable damping, and maintenance free

Relying on scientific dual functional structural design and solid material construction, this damping shaft has outstanding performance advantages. Adopting a pure mechanical friction damping structure, there is no hydraulic oil leakage, no hidden danger of spring failure, stable structure, extremely low failure rate, and no daily maintenance throughout the entire process. 180 degree precise positioning, controllable angle without exceeding travel, adapted to the standardized opening and closing angle requirements of the equipment, to prevent structural and circuit damage caused by excessive rotation; The middle large aperture smooth wire passing design is compatible with most devices' conventional wires, and the rotation process does not clamp or grind the wires, providing comprehensive protection for the safety of the circuit.

The damping torque is uniform and stable, supporting multi angle free adjustment and self-locking hovering at any angle. The device is stable and does not shake or fall after angle adjustment, with a delicate and smooth feel. After 10000 times of opening and closing rotation life test, the accuracy of shaft limit and damping force remain stable all the time, the torque attenuation is extremely low, the structure is free of deformation, the hole location is free of wear, and the fatigue resistance and aging resistance are excellent, greatly extending the service life of industrial equipment, electronic equipment, table lamp, and effectively reducing the after-sales failure rate of equipment.

4、 Product utilization value: Optimize equipment structure, enhance overall practicality and competitiveness

This 180 degree limit middle line damping shaft is widely adaptable to various scenarios, including industrial testing equipment, industrial electronic devices, intelligent flip terminals, LED eye protection desk lamps, desktop smart devices, etc. It has high practical value, safety value, and commercial value.

On a practical level, the hidden intermediate wiring design organizes the equipment circuit, bidding farewell to messy wiring, making the appearance of the equipment simple and exquisite, while avoiding the pulling and entanglement of the circuit, reducing the probability of circuit failure; The precise 180 degree limit function standardizes the opening and closing angle of the equipment, preventing damage caused by excessive rotation and greatly improving the safety of equipment use. At the experiential level, the smooth and stable damping self-locking function allows for more flexible angle adjustment, instrument flipping, and device opening and closing of the desk lamp. The positioning is stable and not loose, effectively enhancing the user experience and the exquisite texture of the entire machine. At the commercial level, the product has wide adaptability, strong stability, mass production capability, and high cost-effectiveness. It can help equipment manufacturers optimize product structure, improve equipment safety and appearance, reduce after-sales maintenance costs, effectively enhance the core competitiveness of terminal products in the market, and adapt to the mass production of multiple categories of civilian and industrial equipment.

5、 Manufacturer introduction: Source customized shaft manufacturer, one-stop damper matching service

Our factory is a professional manufacturer specializing in the research and development, production of 180 degree limit shafts, intermediate wire hole dampers, and damping shafts for industrial equipment and desk lamp electronic devices. We have been deeply involved in the field of precision damping hardware accessories for many years, focusing on providing standardized and customized shaft matching services for industrial equipment, intelligent electronics, and home lighting manufacturers. We have a complete R&D, production, testing, and delivery full chain system, with no intermediary premium, controllable quality, efficient delivery, and outstanding cost-effectiveness.

Strong research and development capabilities, with a professional precision structural design team, deeply rooted in the field of limit wire shaft, familiar with the structural pain points and assembly requirements of industrial instruments, desk lamps, and electronic devices. We can customize wire hole diameter, torque parameters, limit accuracy, and external structure according to customer equipment load-bearing capacity, wire specifications, limit angles, and installation dimensions, supporting non-standard structural development and functional optimization, and quickly matching customer differentiated customization needs.

Strict production quality control is implemented, equipped with modern precision machining equipment and standardized production workshops, establishing a closed-loop quality control system throughout the entire process, from raw material screening, material purification, precision machining, damping debugging, limit calibration to finished product sampling, with strict control at every level. Each batch of products undergoes limit accuracy testing, torque consistency testing, threading adaptation testing, and ten thousand life testing to ensure precise limit accuracy, smooth wiring, stable damping, and consistent quality, fully meeting the needs of customers for large-scale production and matching.

The service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, personalized free sampling, providing customized pre-sales solutions, in sales production follow-up, after-sales installation guidance and quality assurance one-stop services, quickly responding to customer needs, and providing high stability and cost-effective hardware damping shaft matching solutions for major industrial equipment, electronic equipment, and desk lamp manufacturers.

if neededContact: Manager Guo 17375546868
