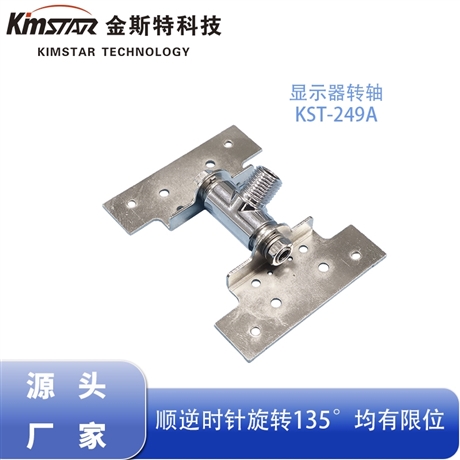

Double board installation type external thread joint industrial equipment connection accessories electronic equipment damper manufacturer

Description :

1、 Product design scheme: Double plate external thread locking structure, suitable for high-strength working conditions of industrial equipment

In response to the core working conditions of industrial instruments and electronic industrial control equipment, such as high vibration, high load-bearing requirements, easy loosening during long-term operation, and the need for stable locking during installation, our factory adoptsDouble plate symmetrical clamping+external thread locking integrated damping design schemeDifferent from ordinary single plate and optical axis simple shafts, it completely solves the disadvantages of traditional accessories such as single point force, weak fixation, equipment vibration displacement, and large assembly clearance, and is suitable for the high-strength, high stability, and long-term durability needs of industrial equipment.

Double plate symmetrical force optimization: The product adopts a symmetrical structure of upper and lower double clamping plates, with uniform and symmetrical force distribution. It can perfectly fit the installation surface of the equipment, increase the contact force area, effectively disperse the load-bearing pressure and mechanical vibration force of the equipment, and eliminate problems such as axis tilt, installation deformation, and equipment shaking caused by single point force. Adapt to frequent flipping and debugging of industrial instruments, long-term static load-bearing of industrial control screens, and high-frequency vibration conditions of equipment, to maintain a smooth and stable structure for a long time without deformation or looseness.

Upgraded design of external thread locking: The end of the shaft is integrated with a precision external thread joint, matched with standard nut locking, which is easy and convenient to assemble, with strong locking force, and can achieve seamless and tight installation. It is suitable for the high-strength anti vibration requirements of industrial equipment and completely solves the problems of screw loosening, shaft displacement, and angle deviation caused by long-term operation of equipment and vehicle vibration. High thread accuracy, tight bite, easy disassembly and maintenance, can be repeatedly disassembled and locked without slipping or loosening, suitable for equipment maintenance and iterative modification needs.

Damping arbitrary stop function: Built in precision friction damping structure, supports multi angle stepless hovering self-locking, 360 ° smooth rotation angle adjustment, uniform and stable damping force, no jamming, no rebound, no mechanical noise, can accurately fix equipment flipping, pitching, and rotation angles, meeting the needs of precise debugging and fixed-point operation of industrial equipment. The product is suitable for embedded and exposed installation of various metal and plastic equipment shells, compatible with automated batch assembly. It can customize thread specifications, damping torque, double plate spacing, and installation hole positions according to industrial instrument specifications, equipment load-bearing capacity, installation space, and thread standards, fully meeting the needs of new product development, private mold modification, and large-scale production matching.

2、 Material construction: Industrial grade high-strength alloy material, anti vibration and anti-corrosion, load-bearing and fatigue resistant without deformation

Considering the harsh working conditions of long-term vibration, heavy load bearing, workshop moisture and dust, and high-frequency angle adjustment of industrial equipment and electronic devices, this double plate external thread damping shaft is selected for selectionThickened industrial grade high carbon steel and high-strength alloy substrateThrough multiple purification, densification, and material strengthening processes, the material has high density, sufficient rigidity, and excellent toughness, possessing super strong resistance to deformation, impact, wear, and fatigue. It solves quality problems such as easy breakage of ordinary shafts, thread slippage, rapid torque attenuation, vibration loosening, oxidation and rust from the root. The material is environmentally friendly and compliant, meeting the standards for hardware materials in industrial electronics and precision equipment.

The overall structure adopts integrated forging and forming technology, with double plates, shaft bodies, and external threaded joints integrated without splicing or welding weak points. The overall structural strength is greatly improved, and the force is uniform and stable. The external thread part adopts precision rolling technology, with regular thread teeth, precise meshing, and firm locking. It is not easy to slide or wear the thread after repeated disassembly and assembly; The double board clamping surface is flat and smooth, with high adhesion, and there is no gap or shaking during installation. The core damping friction part adopts high-frequency quenching and hardening+CNC micron level precision grinding technology, combined with precise and controllable clearance, the damping output is uniform and stable throughout the entire area, without any looseness, tightness, jamming or blockage, and the long-term use has a unified hand feel.

The surface adopts multi-layer industrial grade electroplating, passivation and rust prevention strengthening treatment, with a thick and dense coating and extremely strong adhesion, effectively improving the hardness, corrosion resistance, oxidation resistance, and wear resistance of the shaft, thread, and double plate. It can effectively resist the humid water vapor, dust erosion, and daily mechanical friction in industrial workshops, and is not easy to fade, peel off, or rust. It is perfectly suitable for long-term normal use in various complex industrial environments.

3、 Core Performance Advantages: Salt Spray Testing+Ten Thousand Heavy Load Tests, Industrial Grade Strict Quality Assurance

This series of double plate external thread damping shafts are strictly produced according to industrial precision accessory standards. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts, suitable for long-term, high-strength, and high weather resistance needs of industrial equipment.

1. Industrial salt spray corrosion resistance test: The product has passed the standard industrial salt spray corrosion resistance test, and has no rust, oxidation white spots, coating peeling, or thread jamming failure after long-term testing. It has strong moisture resistance, rust prevention, and corrosion resistance, and can be adapted to industrial workshops, humid working conditions, and dusty environments for long-term use, eliminating problems such as shaft oxidation jamming, thread rust, and locking failure.

2. Ten thousand times heavy load fatigue life test: After tens of thousands of heavy load rotations, flipping angle adjustments, thread locking, and vibration fatigue tests, the shaft body has no deformation, the double plates have no warping, the threads have no slipping, and the torque attenuation is extremely low. It remains stable during long-term high-frequency use without loosening, falling, or abnormal noise. The structural stability is extremely strong, greatly reducing the after-sales failure rate and operation and maintenance costs of industrial equipment.

3. Double plate thread double locking: Double plate symmetrical force+external thread nut locking double protection, full anti vibration and anti loosening performance, fearless of equipment operation vibration and workshop equipment resonance, long-term fixed without displacement, suitable for industrial high-strength working conditions.

4. Accurate arbitrary stop+smooth silence: stepless damping hovering, multi angle locking at will, precise positioning without deviation; Rotating adjustment is gentle and silent, with no mechanical friction or abnormal noise, suitable for the quiet operation needs of precision electronics and industrial equipment.

4、 Product utilization value: improving quality and efficiency, empowering differentiated upgrading of industrial equipment

This dual plate external thread damping shaft is widely compatibleVarious industrial equipment flip devices, industrial control display screens, precision electronic instruments, intelligent device adjustment brackets, industrial small flip electronic control equipmentIt has strong practical value, quality value, and commercial supporting value.

Practical value: Symmetrical installation of double plates ensures even force distribution, greatly improving equipment assembly stability and completely solving pain points such as vibration looseness, angle drop, and image deviation in industrial equipment; The external thread locking structure is firmly installed, easy to maintain, and can be repeatedly disassembled and debugged; The characteristics of corrosion resistance, wear resistance, and vibration resistance make it suitable for all-weather operation in complex industrial conditions. The precise and arbitrary stop function meets the requirements of equipment precision debugging, greatly improving the stability and user experience of equipment operation. Quality value: the industrial grade high-strength material is formed in one body, and the structure is firm, impact resistant, aging resistant, and fatigue resistant. Through salt spray and 10000 times of heavy load double rigorous tests, it effectively eliminates after-sales problems such as equipment looseness, jamming, rust, thread failure, damping attenuation, etc., greatly prolongs the service life of industrial equipment and electronic equipment, and reduces the repair, operation and maintenance costs of manufacturers. Commercial value: The product has strong universality, standardized installation structure, adaptability to multiple categories of industrial electronic equipment, simplifies manufacturer accessory selection, and reduces stocking pressure; Supporting non-standard thread, torque, and size customization, helping manufacturers optimize equipment assembly structures, improve overall stability and precision texture, and create differentiated advantages in seismic resistance, durability, and high stability, effectively enhancing the core competitiveness of the terminal industrial equipment market.

5、 Manufacturer introduction: Industrial grade double plate threaded damping shaft source factory, one-stop customized matching

Our factory is a professional manufacturer of double board mounted external thread damping shafts and industrial electronic equipment dampers. We have been deeply involved in the field of industrial precision damping hardware for many years, focusing on the research and mass production of high-strength damping connection accessories for various industrial control equipment and precision industrial instruments. We are familiar with the core technical standards of anti vibration and anti loosening, high-strength load-bearing, anti-corrosion and weather resistance, and long-term stability of industrial equipment. We have independent research and development, precision processing, industrial grade testing, and large-scale rapid delivery of the entire production chain. Our factory provides direct supply without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

We have mature R&D and customization capabilities, continuously iterating processes to address industry pain points such as vibration loosening, thread slippage, insufficient load-bearing capacity, susceptibility to corrosion, and rapid damping attenuation of industrial shafts. We can customize the spacing between double plates, thread specifications, damping torque, and shaft size based on customer equipment load-bearing specifications, installation dimensions, thread standards, and working condition anti-corrosion levels, and quickly respond to customer needs for new product development, equipment upgrades, and large-scale production support.

The factory has a strict and standardized quality control system, equipped with specialized precision machining equipment for industrial shafts and a complete set of professional testing instruments. It strictly follows the closed-loop quality control process of raw material strength screening, integrated molding, thread precision grinding, hardening strengthening, damping calibration, salt spray anti-corrosion testing, 10000 load life testing, and finished product full inspection. It strictly controls the structural strength, thread accuracy, dimensional tolerance, torque stability, vibration resistance, and anti-corrosion performance of each batch of products, ensuring that the quality of batch products is unified and fully adapted to the harsh working conditions of industry.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-strength, high-precision, high anti loosening, and high weather resistant specialized damping shaft matching solutions for major industrial equipment and electronic industrial control equipment manufacturers.

if neededContact: Manager Guo 17375546868
