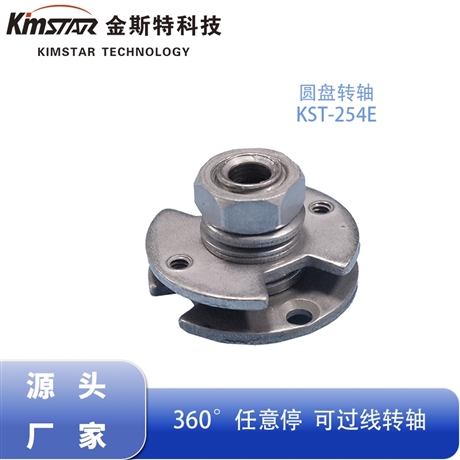

The disc can pass through the wire and rotate 360 degrees to stop at will. Electronic product bracket hardware damper source manufacturer

Description :

1、 Product design scheme: Disc hollow wire+360 ° arbitrary stop exclusive electronic bracket structure

In response to the core requirements of lightweight and simple electronic product brackets, multi angle free adjustment, regular internal wiring, and high-frequency rotation use, our factory adoptsDesign scheme for full range damping of circular discs that can pass through linesDifferent from ordinary solid shaft and ordinary straight shaft damping parts, it is designed with a combination of flat disc structure and central threading hole, which takes into account the appearance texture, wiring protection and rotation stability, and perfectly adapts to the assembly conditions of mobile phone stands, tablet stands, desktop intelligent digital stands, and small electronic rotation support devices.

Hollow cable optimization design: Smooth and burr free threading holes are reserved at the center of the shaft, allowing data cables, signal cables, and connection cables to directly pass through the built-in installation, achieving hidden wiring for the entire device. This completely solves the problems of exposed, tangled, folded, squeezed, worn, and repeatedly rotated clamp wire breakage of electronic bracket harnesses, effectively protecting internal circuits, improving the overall minimalist texture and service life of the bracket, and conforming to the current trend of minimalist design for digital products.

360 ° infinite position arbitrary stop structure: adopting a disc full domain friction damping structure, no angle limit, supporting horizontal 360 ° rotation of the bracket, multi angle fine adjustment of up and down pitch, linear and uniform damping, smooth rotation without jamming. Realize immediate locking, no rebound, no shaking, and no displacement when released, accurately fixing various angles of use such as equipment viewing, office, live streaming, and storage, eliminating the problems of bracket weight falling and angle deviation.

The flat disc structure has high adhesion and is suitable for embedded invisible installation in narrow spaces of electronic brackets. It is not abrupt or takes up space, compatible with various plastic and metal bracket shells, and can be adapted for batch assembly on automated assembly lines. We can customize the threading hole diameter, damping torque, disc diameter, and installation hole position according to the bracket specifications, wire thickness, load-bearing capacity, and tactile requirements, fully meeting the needs of electronic bracket new product development, private mold modification, and large-scale production matching.

2、 Material construction: Industrial grade precision alloy wear-resistant wire protection, fatigue resistance and no deformation

Based on the characteristics of the electronic product bracket's lightweight load-bearing capacity, high-frequency rotation, and daily normal use, this disc can be selected through a wire shaft selectionHigh purity industrial grade precision carbon steel/stainless steel alloy substrateAfter multiple purification and densification strengthening processes, the material has uniform density, high toughness, deformation resistance, wear resistance, and excellent fatigue resistance. It solves common quality problems such as easy deformation of ordinary bracket shafts, rapid torque attenuation, wire clamping and grinding, loose noise, oxidation and rust from the root. The material is environmentally friendly and free of harmful substances, fully complying with the environmental protection material standards for consumer electronics hardware.

Adopting the disc integrated forging and forming process, there is no splicing or weak welding points in the overall structure, with strong overall integrity and uniform and stable stress distribution. The threading holes have been finely chamfered and ground, with smooth and burr free inner walls, preventing wire cuts, wear, and compression fractures, and providing comprehensive protection for the built-in circuits of the bracket. The core damping friction disc adopts high-frequency quenching and hardening+CNC micron level precision grinding technology, with a smooth and uniform friction plane, stable and uniform 360 ° global damping output, and no sudden looseness, tightness, blockage or jamming phenomenon. Each rotation adjustment has a delicate and consistent feel.

The surface adopts multi-layer precision electroplating, passivation and rust prevention strengthening process, with dense and firm coating, strong adhesion, excellent dustproof, moisture-proof, anti-oxidation, and anti-corrosion performance, resistant to daily friction, not easy to fade or peel, and can be used in multiple scenarios such as home, office, and outdoor for a long time, maintaining the exquisite appearance and stable rotation performance of the bracket.

3、 Core Performance Guarantee: Salt Spray Test+Ten Thousand Life Test Industrial Grade Durable Quality

This series of discs can be produced with wire damping shafts in strict accordance with precision electronic accessory standards. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts, suitable for long-term high-frequency use of digital electronic devices.

1. Industrial salt spray anti-corrosion testing: The product has passed standard industrial salt spray testing and has no rust, oxidation white spots, coating peeling, or jamming failure after long-term testing. It effectively resists air humidity, daily water vapor, and dust erosion, and eliminates problems such as shaft oxidation and jamming, rotation failure, and aging appearance. It has excellent weather resistance and is suitable for long-term daily use of electronic devices.

2. Ten thousand rotation fatigue test: After tens of thousands of 360 ° full range rotations, angle hovering, and folding adjustment fatigue tests, the disc structure has no deformation, the threading holes have no wear, the torque attenuation is extremely low, the positioning accuracy is constant, and long-term high-frequency use does not loosen, fall, or produce abnormal noise, greatly reducing the after-sales failure rate and operation and maintenance costs of electronic bracket equipment.

3. Thread protection+arbitrary stop dual function: innovative hollow hidden wiring design, wire protection and wear resistance, beautiful and simple overall appearance; 360 ° infinite free rotation, stepless damping hovering, precise locking without deviation, suitable for various electronic bracket multi angle adjustment and positioning needs.

4. Silent and smooth adjustment: Precise disc clearance matching design, gentle and silent rotation adjustment, no mechanical hard friction noise, suitable for the exquisite and quiet use texture of high-end digital brackets.

4、 Product utilization value: improving quality and efficiency, empowering differentiated upgrading of electronic bracket products

This disc can be widely adapted to wire damping shaftsMobile phone folding stand, tablet support stand, desktop live streaming stand, smart digital device adjustment stand, small electronic product rotating baseIt has extremely high practical value, quality value, and commercial supporting value.

Practical value: Hollow hidden wiring design, bidding farewell to the problem of messy exposed wiring harnesses, and enhancing the simple and high-end texture of the entire bracket; The anti pinch and anti-wear wire structure effectively extends the service life of equipment wires and eliminates wire breakage faults; 360 ° arbitrary stop function with angle locking at will, completely solving pain points such as bracket falling, angle deviation, and rotation lag. The silent and smooth adjustment feel greatly enhances the user experience. Quality value: industrial grade precision materials are provided, which are resistant to wear, aging and fatigue. Through salt spray and ten thousand life tests, it can effectively reduce after-sales problems such as looseness, abnormal noise, rust and angle failure of the electronic support, significantly extend the service life of the whole equipment, and reduce the repair, operation and maintenance costs of the manufacturer. Commercial value: The product has strong universality and is compatible with the vast majority of digital electronic bracket products on the market, simplifying the selection of accessories for manufacturers and reducing stocking pressure; Supporting customized non-standard aperture, torque, and size, helping manufacturers optimize the internal structure of the bracket, improve the overall precision and stability of the machine, and create differentiated advantages of invisible wiring, smooth and durable products, effectively enhancing the core competitiveness of the terminal product market.

5、 Manufacturer introduction: Disc can pass through the line damping shaft source factory one-stop customized matching

Our factory is a professional manufacturer specializing in the research and development, production, and manufacturing of electronic product bracket special disc wire passing damping shafts and precision digital dampers. We have been deeply involved in the field of precision damping hardware for many years, focusing on the research and mass production of wire passing damping shafts for consumer electronics and intelligent digital devices. We are familiar with the core technical requirements of minimalist appearance, silent and smooth operation, wire protection and wear resistance, and long-term stability of electronic brackets. We have an independent research and development, precision processing, full testing, and fast delivery full chain production system. Our factory provides direct supply without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

Our R&D and customization capabilities are mature, and we continuously optimize our structural processes to address industry pain points such as wire clamping and grinding, disorderly wiring, uneven damping, long-term looseness, and easy rusting of ordinary bracket shafts. We can customize the threading aperture, disc size, damping torque, and installation structure according to customer bracket size, wire specifications, load-bearing capacity, and tactile requirements, and quickly respond to customer new product development, product redesign, and large-scale production matching needs.

The factory has a strict and standardized quality control system, equipped with precision machining equipment and a complete set of professional testing instruments for disc threading and rotating shafts. It strictly follows the closed-loop quality control process of raw material quality screening, integrated molding, hole precision grinding, hardening treatment, damping fine adjustment, salt spray anti-corrosion testing, 10000 rotation life testing, and finished product full inspection. It strictly controls the dimensional accuracy, hole smoothness, rotation feel, torque stability, and anti-corrosion performance of each batch of products, ensuring that the quality of batch products is unified and compatible with high-end digital equipment matching standards.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high wire protection, high stability, and cost-effective damping shaft matching solutions for major digital electronics and intelligent equipment manufacturers.

if neededContact: Manager Guo 17375546868
