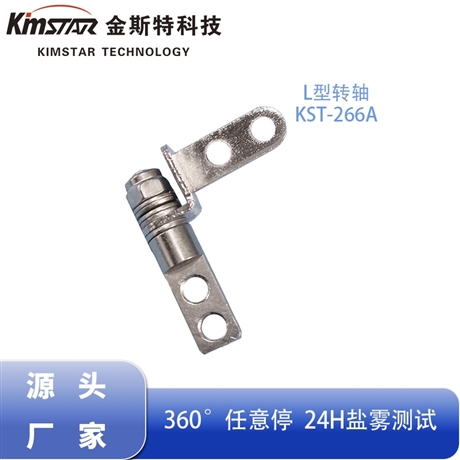

Electronic display pivot multi angle electronic device flip hinge hinge hardware damper manufacturer

Description :

1、 Product design scheme: Electronic device exclusive multi angle flip damping structure

Our factory adopts the core working conditions of multi angle precise angle adjustment, high-frequency opening and closing, lightweight assembly, and long-term stable positioning for electronic displays and digital flip devicesMulti angle global damping arbitrary stop flip design schemeAbandoning the shortcomings of traditional shaft limit fixation, stiff damping, and insufficient locking force, optimizing the hinge friction structure, achieving multi-dimensional angle adjustment and precise self-locking, perfectly adapting to the differentiated usage needs of civilian digital and industrial electronic equipment.

Exclusive optimization for display devices: Designed with a balanced damping structure specifically for LCD displays, industrial control displays, and desktop electronic display stands, it supports screen up and down pitch, left and right rotation, and multi angle adjustment of horizontal and vertical screens. The damping is linear and uniform, and fine tuning is smooth without lagging. It can accurately lock the screen usage angle, eliminate the problems of self weight drop, screen deviation, and slight vibration displacement when the device is stationary, and adapt to the precise viewing and debugging operation needs of multiple scenarios such as office, industrial computer rooms, and home use.

Exclusive optimization for flip electronic devices: Upgraded flexible opening and closing damping parameters, suitable for various electronic device flip and operation panel flip working conditions, high-frequency opening and closing without impact or rebound, with smooth and silent operation throughout the process. Multi angle free adjustment design, without rigid angle restrictions, can meet the multiple usage needs of device opening and closing, fine-tuning, and hovering fixation. The structure is compact and lightweight, does not occupy internal space of the device, and conforms to the minimalist and lightweight design trend of modern electronic devices.

The product has strong universality and is suitable for plastic and metal electronic device casings. It supports embedded and exposed bidirectional installation and can be adapted to batch assembly on automated assembly lines. We can customize damping torque, opening and closing angles, shaft specifications, and installation hole positions according to monitor size, device weight, flip stroke, and assembly space, fully meeting the needs of electronic device new product development, private mold modification, and large-scale production matching.

2、 Material Structure: Industrial grade precision alloy, wear-resistant and fatigue resistant, long-lasting damping stability

Based on the characteristics of electronic devices such as lightweight, precision, high-frequency opening and closing, normal daily use, and multi scene placement, this electronic damping shaft is carefully selectedHigh purity industrial grade precision carbon steel, environmentally friendly alloy substrateAfter purification, impurity removal, densification and strengthening processes, the material has uniform density, sufficient toughness, excellent deformation resistance, wear resistance, and fatigue resistance. It solves the common quality problems of ordinary electronic shafts, such as easy wear, rapid torque attenuation, loose flip cover, friction noise, oxidation rust, etc. from the root. The material is environmentally friendly and free of harmful substances, fully complying with the environmental protection material standards for electronic digital equipment hardware.

Adopting the integrated forging and forming process, the hinge of the shaft has no splicing or weak welding points, with strong structural integrity and uniform and stable stress. It can withstand the fatigue loss of repeated angle adjustment of displays and high-frequency flip opening and closing of electronic devices for a long time, and is not easy to bend, loosen, deform or fail. The core damping friction part adopts high-frequency quenching and hardening+CNC micron level precision grinding technology to accurately control the clearance between components. The damping output is uniform and unified throughout the entire area, without any looseness, tightness, blockage or jamming. The hand feel is consistent every time it is opened, closed or adjusted, and it will not loosen or slip after long-term use.

The surface adopts multi-layer precision electroplating, passivation and rust prevention strengthening process, with dense and firm coating, strong adhesion, excellent dustproof, moisture-proof, anti-oxidation, and anti-corrosion performance, resistant to daily friction, not easy to fade or peel, suitable for long-term use in multiple scenarios such as home, office, and industrial workshops, and can maintain smooth opening and closing of equipment and precise positioning for a long time.

3、 Core performance guarantee: salt spray test+10000 fold flip test, industrial grade precision quality

This series of electronic devices' damping shafts are strictly produced according to the industrial standards of precision electronic components. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian hinges, suitable for the long-term high-frequency use needs of various electronic devices.

1. Industrial salt spray corrosion resistance test: The product has passed the standard industrial salt spray corrosion resistance test, and has no rust, oxidation white spots, coating peeling, or jamming failure after long-term testing. It can effectively resist air humidity, dust erosion, daily environmental oxidation, and prevent problems such as rusting, jamming, opening and closing failure, and appearance aging of the rotating shaft. It has excellent weather resistance and is suitable for normal use in all scenarios of electronic devices.

2. Ten thousand fold flip fatigue life test: After tens of thousands of multi angle flips, opening and closing angle adjustments, hovering self-locking fatigue tests, the shaft structure has no deformation, extremely low torque attenuation, constant positioning accuracy, and long-term high-frequency opening and closing without loosening, falling, or abnormal noise, greatly reducing the after-sales failure rate and operation and maintenance costs of electronic displays and flip devices.

3. Multi angle arbitrary stop self-locking: supports 360 ° multi angle free adjustment, stepless damping hovering, precise locking immediately upon release, no rebound, no offset, perfectly adapted to display viewing angle adjustment and electronic flip device opening and closing positioning needs, with adjustable angles and precise positioning.

4. Silent and Smooth+Precise Adaptation: Precise gap matching design, gentle and silent opening and closing adjustment, no mechanical hard friction noise, enhancing the high-end texture of electronic devices; The structure is lightweight and precise, suitable for the assembly needs of various small and precision electronic devices, with strong compatibility.

4、 Product utilization value: improving quality and reducing costs, empowering differentiated upgrading of electronic devices

This multi angle damping hinge is widely compatibleVarious types of LCD electronic displays, industrial control displays, computer display stands, digital flip devices, electronic instrument operation panels, portable intelligent electronic devicesIt has extremely high practical value, quality value, and commercial supporting value.

Practical value: Multi angle free adjustment+precise stop function, completely solving pain points such as fixed angle of electronic displays, screen shaking, and device flip rebound and fall, suitable for use in office, home, and industrial debugging scenarios; The characteristics of silent and smooth operation, anti-corrosion and wear-resistant, and long-term stability effectively enhance the feel and service life of the equipment, optimizing the user experience. Quality value: industrial grade precision materials, wear resistance, aging resistance and fatigue resistance, through salt spray and ten thousand times of fatigue double rigorous tests, effectively reduce equipment looseness, jamming, abnormal noise, rust, angle failure and other after-sales problems, significantly reduce the cost of equipment repair, operation and maintenance, and improve the stability and durability of electronic equipment. Commercial value: The product has strong universality, with a hinge that can adapt to multiple categories of electronic devices, simplifying the selection of accessories for manufacturers and reducing inventory pressure; Supporting customized non-standard torque, size, and installation structure, helping manufacturers optimize the internal structure of equipment, enhance the lightweight and delicate texture of the whole machine, create differentiated advantages of smooth opening and closing, precise positioning, durability and stability, and effectively enhance the core competitiveness of the terminal electronic device market.

5、 Manufacturer introduction: Electronic equipment damping shaft source factory, one-stop customized matching

Our factory is a professional manufacturer of damping hinge shafts for electronic displays and flip electronic devices. We have been deeply involved in the field of precision hardware damping for many years, focusing on the research and mass production of damping hinges for civilian digital and industrial electronic equipment. We are familiar with the core technical requirements of lightweight assembly, silent opening and closing, multi angle precise positioning, and long-term weather resistance and stability of electronic equipment. We have an independent research and development, precision processing, full testing, and fast batch delivery full chain production system. Our factory provides direct supply without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

We have mature R&D and customization capabilities, continuously iterating processes to address industry pain points such as uneven damping, long-term looseness, angle limit, susceptibility to corrosion, and abnormal noise and jamming of ordinary electronic shafts. We can customize damping torque, shaft length, installation hole position, and opening and closing angle based on customer equipment size, load-bearing specifications, opening and closing requirements, and assembly standards, and quickly respond to customer new product development, product redesign, and large-scale production matching needs.

The factory has a strict and standardized quality control system, equipped with specialized processing equipment for electronic precision shafts and a complete set of professional testing instruments. It strictly follows the closed-loop quality control process of raw material quality screening, integrated molding, hardening treatment, precise damping calibration, salt spray anti-corrosion testing, ten thousand fold flip life testing, and full inspection of finished products. It strictly controls the dimensional accuracy, smooth opening and closing, torque stability, noise reduction effect, and anti-corrosion performance of each batch of products, ensuring that the quality of batch products is unified and compatible with various precision electronic equipment supporting standards.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, and high durability damping shaft hinge matching solutions for major digital, electronic, and industrial control equipment manufacturers.

if neededContact: Manager Guo 17375546868
