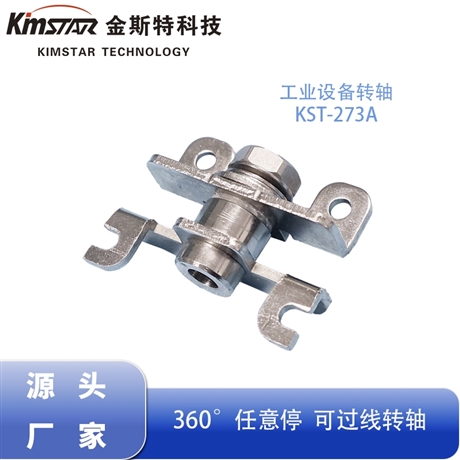

Electronic display screen damping shaft I-shaped cable passing VR equipment product hardware damper manufacturer

Description :

1、 Product design scheme: I-shaped stable+hollow cable dual function digital device exclusive structure

In response to the differentiated working conditions of electronic display screens requiring stable load-bearing and precise viewing angle positioning, VR devices requiring high-frequency flipping, invisible wiring, and lightweight assembly, our factory adoptsI-shaped mechanical reinforcement+hollow passable line full domain damping design schemeDifferent from ordinary single letter and disc type shafts, relying on the double reinforced structure of I-shaped upper and lower plates, the force is more balanced and the deformation resistance is stronger. At the same time, it solves the problem of disorderly equipment wiring, while taking into account structural strength, assembly appearance, and stability of use.

I-shaped high-strength load-bearing anti shake design: adopting the classic I-shaped mechanical structure, symmetrically installing clamping plates with a reinforced connection structure in the middle, increasing the equipment fitting installation area, and evenly dispersing the load-bearing pressure of the display screen and VR device body. The bending strength far exceeds that of ordinary shafts. Effectively solves problems such as long-term static looseness of large screen displays, equipment vibration and image deviation, frequent flipping and structural deformation of VR devices, and angle drop. After adjusting the angle of the device, it is firmly locked without shaking or rebounding, and is suitable for precise framing of display devices and multi angle experience adjustment of VR devices.

Optimization design of hollow wire protection: A large diameter smooth threading hole is reserved at the center of the shaft, and the hole position is finely chamfered without burrs. It can directly penetrate equipment signal lines, power lines, and data lines, achieving hidden wiring of the whole machine. Thoroughly eliminate the disorderly exposure, rotation, winding, folding and squeezing wear, and wire breakage faults of VR devices and display screens, protect the safety of internal circuits, conform to the minimalist and lightweight design trend of high-end digital devices, and avoid external wire pulling and aging, greatly extending the service life of equipment wiring harnesses.

360 ° global arbitrary stop damping structure: Built in precision friction damping components, no angle limit, support equipment up and down pitch, left and right horizontal 360 ° free rotation, linear and uniform damping, fine and quiet adjustment, precise self-locking immediately upon release, stepless hovering without running or jamming. Suitable for multi angle adjustment of display screens for office viewing and immersive multi angle flipping of VR devices. The product structure is compact and lightweight, suitable for embedded installation in small internal spaces of equipment, compatible with various plastic and metal shells, and suitable for automated batch assembly. The aperture, torque, installation hole position, and shaft size can be customized according to equipment specifications, wire thickness, and load-bearing size, meeting the needs of new product development, private mold modification, and large-scale production.

2、 Material structure: Industrial grade precision alloy, high-strength load-bearing, wear-resistant wire protection, anti-corrosion and fatigue resistance

Considering the harsh working conditions of long-term load-bearing static placement of electronic displays, high-frequency repeated flipping of VR devices, and daily multi scene use of digital devices, this I-shaped wire passing damping shaft is carefully selectedHigh purity industrial grade carbon steel/environmentally friendly alloy substrateThe material is dense and uniform, free of impurities, environmentally compliant, and meets the safety standards for consumer digital device hardware. It has excellent properties such as high rigidity, high toughness, deformation resistance, wear resistance, fatigue resistance, and oxidation resistance. It solves common quality problems such as easy deformation of ordinary shafts, rapid torque attenuation, wire clamping and grinding, loose noise, and damp rust from the root.

Adopting an integrated forging and forming process, the I-shaped structure has no splicing or weak welding points, with strong structural integrity and uniform stress, eliminating fracture and deformation problems caused by welding stress. It can withstand long-term fatigue losses from heavy load static placement of display screens and high-frequency flipping of VR devices, and the structure is stable and not easy to loosen. The threading hole has undergone CNC precision grinding and chamfering treatment, with smooth and burr free inner walls, providing comprehensive protection for the wire from cuts and wear. The core damping friction contact surface adopts high-frequency quenching and hardening+micrometer level precision grinding technology, with precise and controllable clearance. The 360 ° global damping output is stable and uniform, without any looseness, tightness, blockage or jamming phenomenon. It has consistent hand feel and accurate positioning after long-term use.

The surface adopts multi-layer precision electroplating+passivation anti rust strengthening process, with thick and dense coating, strong adhesion, excellent dustproof, moisture-proof, anti-oxidation, and anti-corrosion performance, resistant to daily friction, not easy to fade or peel, suitable for long-term use in home, office, and indoor environments, and can maintain smooth rotation, stable structure, and exquisite appearance of the equipment for a long time.

3、 Core Performance Guarantee: Salt Spray Test+Ten Thousand Fatigue Tests Precise Digital Grade Strict Quality

This series of I-shaped damping shafts are strictly produced according to the industrial standards of precision digital accessories. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts. It is suitable for long-term high-frequency use of electronic displays and VR smart devices.

1. Industrial salt spray corrosion resistance test: The product has passed the standard industrial salt spray corrosion resistance test, and has no rust, oxidation white spots, coating peeling, or jamming failure after long-term testing. It effectively resists air humidity, daily water vapor, and dust erosion, and eliminates problems such as shaft oxidation and jamming, rotation failure, and appearance aging. It has excellent weather resistance and is suitable for long-term normal use of digital devices.

2. Ten thousand flipping fatigue life test: After tens of thousands of 360 ° rotations, multi angle adjustments, and hover self-locking fatigue tests, the I-shaped structure has no deformation, no wear on the threading holes, extremely low torque attenuation, constant positioning accuracy, and long-term high-frequency flipping without loosening, falling, or abnormal noise, greatly reducing the after-sales failure rate and maintenance costs of display screens and VR devices.

3. Double advantages of I-shaped stability and wire protection: I-shaped reinforced structure enhances equipment load-bearing stability, with strong earthquake resistance, anti shake, and anti deformation capabilities; Hollow large wire holes achieve invisible wiring, anti pinch and anti-wear wires, balancing equipment aesthetics and practicality.

4. 360 ° arbitrary stop+silent smooth operation: unlimited free rotation throughout the range, stepless damping hover, angle locking at will, precise and non offset; The rotation is gentle and silent, with no mechanical friction or abnormal noise, matching the exquisite texture of high-end intelligent digital devices.

4、 Product utilization value: improving quality and reducing costs, empowering differentiated upgrading of digital devices

This I-shaped damping shaft is widely compatible with wire passing dampingVarious intelligent electronic display screens, touch displays, desktop display stands, VR glasses devices, AR intelligent digital devices, portable flip digital productsIt has ultra-high practicality, quality, and commercial matching value.

Practical value: The high-strength I-shaped structure completely solves the problems of screen shaking and falling, VR device flipping and deformation, and the device angle positioning is precise and stable; Hollow hidden wiring design, bidding farewell to the problems of messy exposed wires, winding and broken wires, effectively extending the service life of equipment and wires; Silent and smooth adjustment of tactile sensation, 360 ° free angle adjustment function, comprehensively enhance user experience. Quality value: industrial grade precision materials are provided, which are resistant to wear, aging and high-frequency fatigue. Through salt spray and ten thousand times of fatigue tests, it can effectively reduce after-sales problems such as equipment looseness, jamming, abnormal noise, rust and angle failure, significantly extend the service life of digital equipment and reduce the cost of repair, operation and maintenance of manufacturers. Commercial value: A universal display device with a rotating shaft and two categories of VR intelligent devices, simplifying the selection of accessories for manufacturers and reducing stocking pressure; Supporting non-standard customization, helping manufacturers optimize the internal structure of equipment, enhance the lightweight and high-end texture of the whole machine, and create differentiated advantages of stable, durable, invisible wiring, smooth and silent products, effectively enhancing the core competitiveness of the terminal digital equipment market.

5、 Manufacturer introduction: One stop customized matching of I-shaped wire passing damping shaft source factory

Our factory is a professional manufacturer specializing in the research and development, production of electronic display screens and VR equipment dedicated I-shaped adjustable damping shafts. We have been deeply involved in the field of precision digital damping hardware for many years, focusing on the research and mass production of high-end intelligent digital equipment dampers. We are deeply familiar with the core technical requirements of stable load-bearing positions for display equipment, high-frequency flipping of VR equipment, invisible wire protection, and long-lasting noise reduction. We have an independent research and development, precision processing, full inspection, and fast batch delivery full chain production system. Our factory provides direct supply without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

Our R&D and customization capabilities are mature, and we continuously iterate our processes to address industry pain points such as unstable shaft structures, wire clamping and grinding, damping attenuation, corrosion, and inaccurate positioning. We can customize the threading hole diameter, damping torque, I-beam specifications, and installation hole positions based on customer equipment load capacity, wire specifications, installation space, and torque requirements, and quickly respond to customer new product development, product redesign, and large-scale production support needs.

The factory has a strict and standardized quality control system, equipped with digital precision machining equipment and a complete set of professional testing instruments. It strictly implements a closed-loop quality control process of raw material quality screening, integrated molding, hole precision grinding, hardening strengthening, damping calibration, salt spray anti-corrosion testing, ten thousand flip life testing, and finished product full inspection. It strictly controls the structural strength, dimensional accuracy, rotational smoothness, torque stability, and anti-corrosion performance of each batch of products, ensuring that the quality of batch products is unified and compatible with high-end digital equipment supporting standards.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop technical guidance for after-sales installation. We provide high stability, high wire protection, high precision, and high stability damping shaft matching solutions for major digital and intelligent equipment manufacturers.

if neededContact: Manager Guo 17375546868
