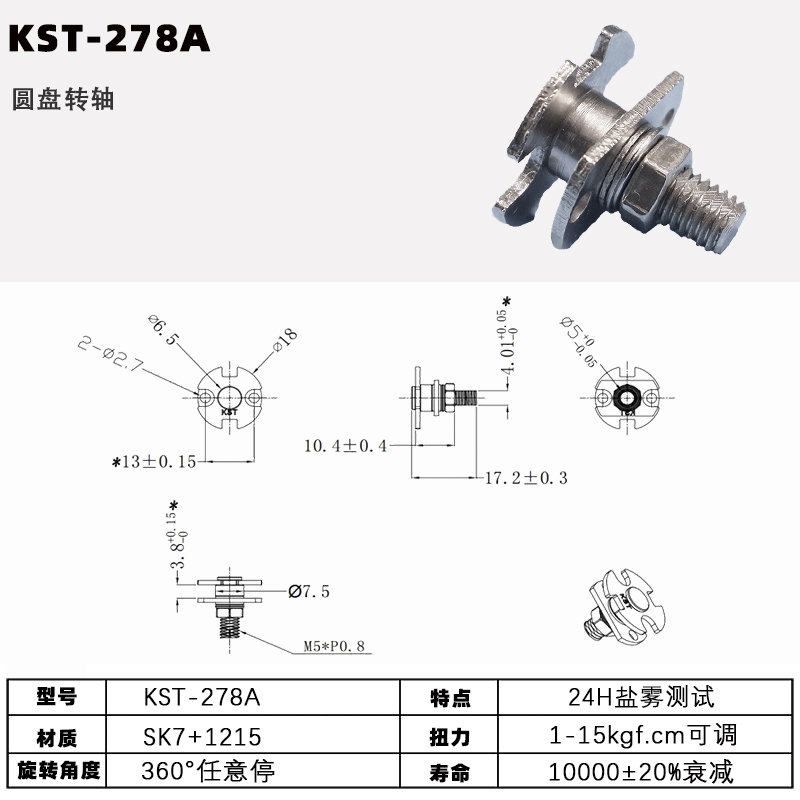

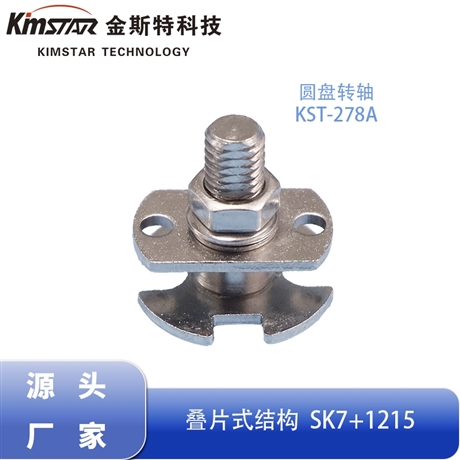

Manufacturer of specialized hardware dampers for electronic products and instruments, such as disc damping, rotary shaft, and rotating body

Description :

1、 Product design scheme: Precision disc rotating body instrument grade exclusive damping structure

For precision electronic products, testing instruments, and small industrial control instruments that require high-precision fine-tuning, smooth rotation, fixed-point locking, and long-term stable operation under harsh working conditions, our factory adoptsDesign scheme of high concentricity disk rotating body+global uniform dampingDifferent from the drawbacks of eccentric shaking, uneven damping, and loose positioning of ordinary shafts, the integrated precision structure of a disc achieves smooth rotation and precise hovering of instruments and equipment, meeting the core requirements of fine angle adjustment and precise positioning of precision equipment.

High precision disc rotor design: The overall structure adopts a disc integrated rotating structure, and the concentricity of the axis is precisely calibrated. The rotation is non eccentric, non shaking, and non offset, completely solving the problems of precision instrument rotor rotation shaking and fine adjustment of displacement. The disc has uniform force and stable support, which can ensure the stable rotation process of precision components such as instrument heads, detection panels, and electronic display rotors, without affecting the accuracy of equipment detection and use. It is compatible with various high-precision precision equipment assembly standards.

Global uniform damping arbitrary stop design: Built in multi-layer precision friction damping components, damping ratio is specially calibrated by instrument equipment, 360 ° global rotation damping is uniform and linear, without looseness, tightness, jamming or mechanical impact. Support multi angle fine adjustment and large-scale rotation adjustment of devices, with precise locking immediately upon release, no rebound, looseness, or displacement. It can fix the working posture of instruments and electronic products at any angle, adapting to the precise positioning needs of device debugging, testing, display, storage, and other multiple scenarios.

Lightweight and compact structure: The product has a small volume and exquisite thickness, suitable for installation in narrow internal spaces of precision instruments and small electronic products. It supports embedded and exposed bidirectional assembly, compatible with plastic and metal equipment shells, and is suitable for automated batch assembly production. We can customize damping torque, disc specifications, and installation hole positions according to the instrument's load-bearing capacity, adjustment accuracy, installation size, and tactile requirements, fully meeting the needs of precision equipment new product development, old model upgrades, and large-scale production matching.

2、 Material Structure: Industrial grade precision alloy, high-precision wear-resistant, rust proof, fatigue resistant, and deformation resistant

Based on the characteristics of precision instruments, high-precision adjustment of electronic products, high-frequency fine-tuning, long-term static operation, and indoor multi scenario use, this disc damping shaft is carefully selectedHigh purity industrial grade precision carbon steel/environmentally friendly stainless steel alloy substrateThe material is dense and uniform, with high purity, excellent toughness, and no impurity precipitation, fully meeting the environmental protection material standards for precision electronics and instrument equipment. It has ultra-high dimensional stability, wear resistance, deformation resistance, fatigue resistance, oxidation resistance, and corrosion resistance, solving common quality problems such as easy deformation, large precision deviation, fast torque attenuation, loosening noise, rust and jamming of ordinary shafts from the root.

Adopting the integrated forging and forming process, the disc rotating body and the axis are formed in an integrated manner without splicing or welding weak points. The overall structural strength is high, the concentricity is precise, and the force is uniform and stable. It can withstand long-term fatigue losses caused by high-frequency fine-tuning, repeated rotation, and static load-bearing of instruments and equipment, without problems such as axis deviation, disc deformation, and structural looseness, and can maintain the accuracy of equipment rotation adjustment for a long time.

The core damping friction part adopts high-frequency quenching hardening+CNC micron level precision grinding technology, with a smooth and uniform friction surface, precise and controllable fit clearance, ensuring uniform and stable damping output throughout the entire area, consistent hand feel for long-term use, and no attenuation of adjustment accuracy. The surface adopts multi-layer precision electroplating+passivation anti rust strengthening process, with dense and firm coating, strong adhesion, excellent dustproof, moisture-proof, anti-oxidation, and anti-corrosion performance, resistant to daily friction, not easy to fade or peel, not rusting or aging, suitable for long-term stable use in multiple scenarios such as laboratories, workshops, and home offices.

3、 Core performance guarantee: salt spray testing+10000 precision fatigue testing instrument level rigorous quality

This series of precision disc damping shafts is strictly produced according to the standards of precision instruments and high-end electronic product accessories. The entire batch has passed multiple rigorous performance tests, and the quality far exceeds that of ordinary civilian shafts, suitable for the long-term stable use needs of high-precision equipment.

1. Industrial salt spray corrosion resistance test: The product has passed high standard industrial salt spray corrosion resistance testing. After long-term testing, there is no rust, oxidation white spots, coating peeling, or axis jamming failure. It can effectively resist humid air, dust, and slight acid-base environment erosion, and prevent problems such as shaft corrosion, jamming, rotation failure, accuracy decline, and appearance aging. It has excellent weather resistance and is suitable for long-term normal use of precision instruments.

2. Ten thousand precision rotation fatigue tests: After tens of thousands of 360 ° full range rotations, fine angle adjustments, and hover lock fatigue tests, the disc structure has no deformation, the axis has no offset, the torque attenuation is extremely low, the positioning accuracy is constant, and long-term high-frequency adjustments are not loose, shaking, or abnormal noise, effectively ensuring the adjustment accuracy of precision equipment and significantly reducing the equipment's after-sales failure rate and maintenance costs.

3. High precision anti shake rotation: Designed with a high concentricity disc rotor, the rotation is smooth without shaking, and the fine adjustment accuracy is high, meeting the high-precision adjustment requirements of precision instruments and detection equipment without affecting the working accuracy of the equipment.

4. Silent and Smooth+Long term Stability: Precise gap matching design, gentle and silent rotation adjustment, no mechanical hard friction noise, suitable for precision instruments and high-end electronic products with exquisite texture; The damping performance is long-lasting and does not decay, and it remains smooth and precise even after long-term use.

4、 Product adaptation scenarios and utilization value

This precision disc damping shaft is widely compatibleVarious precision testing instruments, small industrial control equipment, electronic testing equipment, intelligent display rotors, medical small instruments, portable digital electronic products, laboratory adjustment bracketsIt combines high-precision practical value, long-term quality value, and commercial matching value.

Practical value: High precision disc rotating structure, stable rotation, anti shake, precise fine adjustment, completely solves the pain points of precision equipment angle deviation, inaccurate positioning, and loose rotation, ensuring the accuracy of instrument and equipment testing and debugging; Uniform and smooth damping, silent and durable, suitable for strict use standards of precision equipment, greatly improving product experience and equipment reliability. Quality value: industrial grade precision materials are reinforced, resistant to wear, aging, high-frequency fatigue, rust and corrosion. Through salt spray and ten thousand times of precision fatigue double rigorous testing, it effectively eliminates equipment looseness, abnormal noise, rust, precision failure, damping failure and other after-sales problems, significantly extends the service life of precision instruments and electronic products, and reduces the cost of repair, operation and maintenance of manufacturers. Commercial value: The product has strong universality, adapts to multiple categories of precision electronics and instrument equipment, simplifies the selection of manufacturer accessories, and reduces stocking pressure; Support non-standard precision customization, assist manufacturers in optimizing equipment rotation structures, improving overall precision and high-end texture, and creating differentiated advantages of high-precision, high stability, and high durability products, effectively enhancing the core competitiveness of the terminal precision equipment market.

5、 Manufacturer introduction: Precision disc damping shaft source factory instrument level customized matching

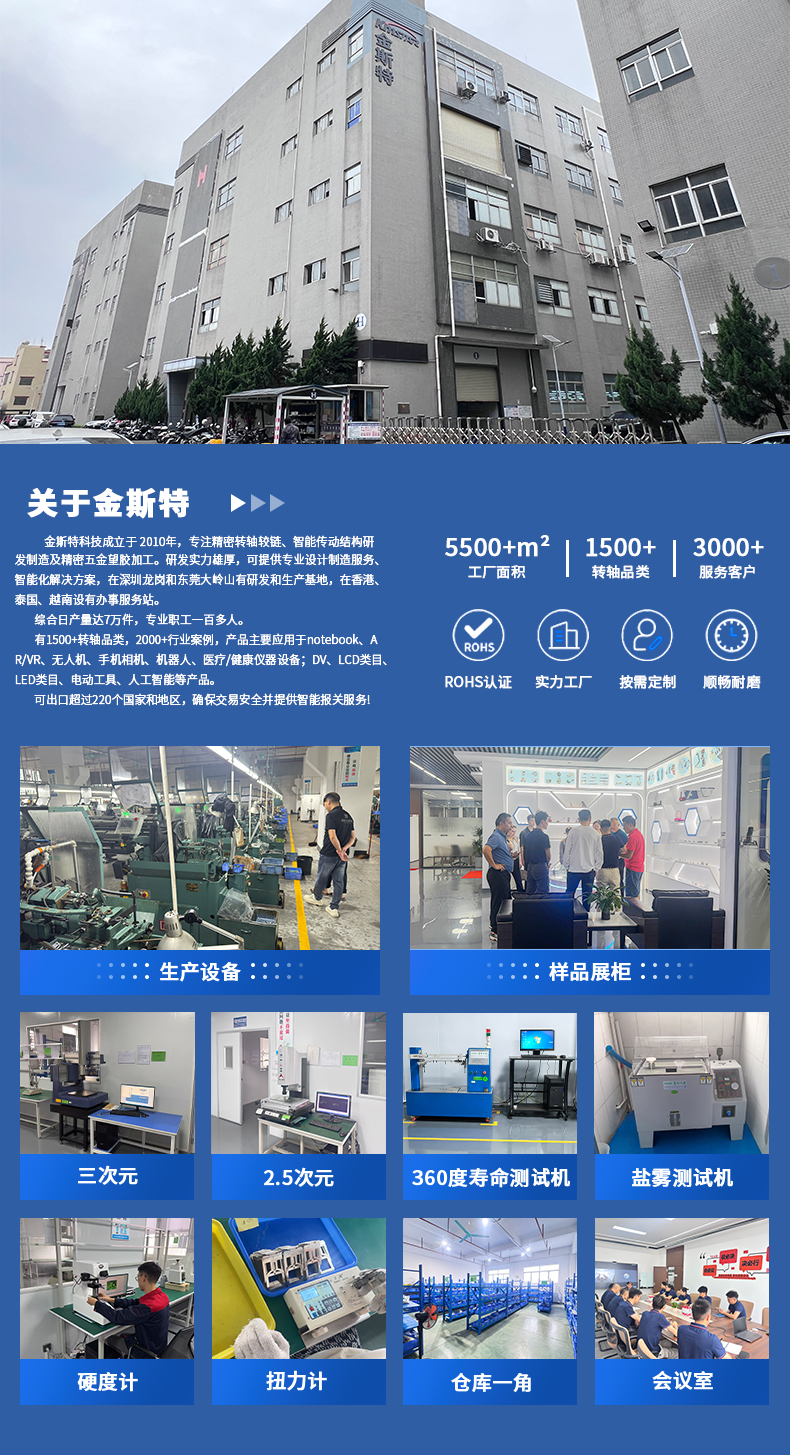

Our factory is a professional manufacturer specializing in the research and production of precision disc damping shafts and electronic instrument specific dampers. We have been deeply involved in the field of precision damping hardware for many years, focusing on the research and mass production of various precision instruments, industrial control electronics, and intelligent digital equipment specific rotary damping accessories. We have a deep understanding of the core technical standards for high-precision, high stability, rust resistance, fatigue resistance, and silent fine-tuning of precision equipment. The factory has an independent research and development, precision machining, instrument level comprehensive testing, and a full chain production system for rapid delivery of large quantities. It provides direct supply from the source without any intermediary premium, with controllable quality, efficient delivery, and outstanding cost-effectiveness.

Our R&D and customization capabilities are mature, and we continuously iterate our processes to address industry pain points such as poor precision of ordinary shafts, rotational shaking, uneven damping, susceptibility to corrosion, and fast fatigue attenuation. We can provide customized round disk sizes, torque parameters, installation structures, and accuracy standards based on customer instrument and equipment accuracy requirements, load-bearing specifications, installation dimensions, and damping feel. We can quickly respond to customer needs for new product development, equipment upgrades, and large-scale production support.

The factory has a strict quality control system, strictly following the quality inspection specifications for precision instrument accessories. It is equipped with high-precision shaft processing equipment and a complete set of professional testing instruments. It strictly follows the closed-loop quality control process of raw material accuracy screening, integrated molding, precision grinding, damping calibration, salt spray anti-corrosion testing, ten thousand fatigue testing, and finished product inspection. It strictly controls the concentricity, dimensional accuracy, torque stability, rotation smoothness, and anti-corrosion performance of each batch of products to ensure that the quality of the batch of products is unified and fully adapted to the harsh working conditions of precision instruments and equipment.

Our service system is complete, supporting standard spot delivery in seconds, rapid production scheduling for bulk orders, free sampling and trial installation. We provide pre-sales equipment condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, high corrosion resistance, and long-life disc damping shaft matching solutions for major precision instrument and electronic equipment manufacturers.

if neededContact: Manager Guo 17375546868
