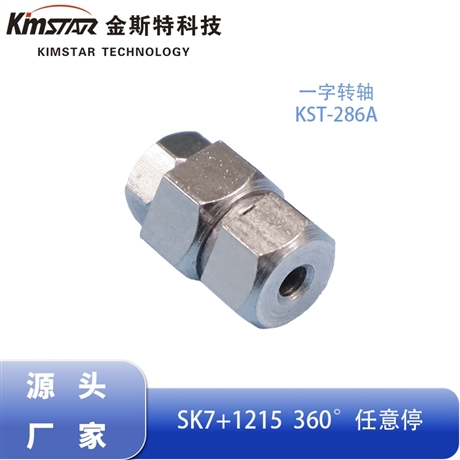

LED desk lamp fan with a straight axis adjustable angle damping and any stopping damper manufacturer

Description :

1、 Product Design Proposal: A single letter adjustable damping structure specifically designed for desk lamp fans

In response to the special working conditions of the LED desk lamp fan all-in-one machine, such as the thin and light body, narrow internal space, large weight of the dual function head, easy vibration during high-frequency operation of the fan, and the need for precise angle adjustment and positioning from multiple angles, our factory adoptsOne line straight board embedded+adjustable damping+all domain arbitrary stopExclusive design scheme, different from conventional discs and I-shaped shafts, with a simpler structure, more fitting installation, and lightweight design suitable for all-in-one machines, perfectly balancing the needs of lighting angle adjustment and hair blowing positioning.

One line simple embedded structure design: adopting an integrated straight board and one line shape, the body is compact and thin, specially optimized for the small body of multifunctional desk lamp fans. It can be directly embedded and installed in close contact with the body, without occupying internal space. It is suitable for the assembly of plastic and metal shells of most integrated desk lamp fans on the market, compatible with automated batch assembly, with seamless assembly and higher overall appearance, in line with the trend of modern small home appliance minimalist and thin design.

Adjustable damping+multi angle stop design: Built in precision adjustable friction damping components, supporting free torque adjustment, can flexibly adjust damping force according to the weight of the desk lamp fan head and the load-bearing size of the blowing head, completely solving the adaptation problem of light machine being too tight and heavy machine being too loose. Supports up and down pitch and multi angle flip adjustment, with precise self-locking and no rebound, no shaking, and no falling when released. It can fix the lighting and blowing posture at any angle, meeting the needs of desktop fixed-point air supply, global lighting, storage and folding, and other multi scene use.

Anti vibration and seismic special optimization: In response to the problem of loose shaft and angle deviation caused by continuous vibration of the fan during operation, the damping locking structure has been upgraded. The friction fit clearance is uniform and stable, which can effectively buffer the vibration force generated by high-frequency operation of the fan, prevent long-term angular displacement, head shaking, and abnormal noise of the equipment, and ensure the long-term stable operation of the desk lamp fan. We can customize the length of the shaft body, installation hole position, torque range, and rotation angle according to customer equipment specifications, installation dimensions, and tactile needs, and adapt to new product development, old model upgrades, and large-scale production matching.

2、 Material structure: High quality carbon steel, precision material, wear-resistant and earthquake resistant, long-lasting and durable

Based on the characteristics of high-frequency angle adjustment, continuous vibration of the fan, humidity and dust in the home, and long-term static use of the desk lamp fan integrated machine, this one shaped damping shaft is selectedHigh toughness and high-quality carbon steel materialThe material is dense and uniform, with high hardness, sufficient toughness, and strong deformation resistance. Compared with ordinary iron materials, it has higher hardness, better wear resistance, and is not easily deformed or broken. It fully meets the environmental protection and safety material standards for household small appliances and is the preferred substrate for multifunctional desk lamp fan shafts.

Material core performance: Carbon steel substrate has excellent fatigue resistance, vibration resistance, and wear resistance, which can withstand multiple losses such as high-frequency vibration of fans, repeated angle adjustment of machine heads, and daily folding and storage for a long time. It is not easy to encounter problems such as torque slippage, structural looseness, and shaft bending deformation. It can maintain damping stability and locking force for a long time, and prevent equipment from falling, loosening, and angle deviation after long-term use. The material has uniform hardness, small plastic deformation, precise rotation concentricity after long-term use, and a uniform and delicate touch when adjusting angles.

Precision Forming Process: Adopting an integrated forging and forming process, the straight body has no splicing or welding weak points, and the overall structural strength is high and the stress is uniform and stable. The core damping friction part passes throughHigh frequency quenching and hardening+CNC micro precision grindingProcessing: The friction surface is smooth and even, with precise and controllable clearance. The overall damping output is uniform and linear, without any looseness, tightness, or jamming, effectively solving the problems of uneven damping and displacement failure caused by fan vibration.

Moisture and rust prevention process: The surface is treated with multi-layer precision electroplating and passivation rust prevention enhancement, with a thick and dense coating and strong adhesion, which can effectively isolate the corrosion of humid water vapor and air dust at home, prevent the oxidation and rusting of carbon steel substrates, and prevent coating peeling. It is resistant to daily wiping and moisture corrosion, suitable for long-term stable use in multiple scenarios such as bedrooms, study rooms, and offices.

3、 Core performance guarantee: salt spray testing+10000 vibration fatigue testing, strict quality control

All of our factory's desk lamp fans are equipped with a single type damping shaft, which is strictly produced according to the quality standards of precision accessories for small household appliances. Sampling and inspection are carried out for the entire batch, and multiple rigorous performance tests have been passed to meet the long-term high-frequency usage needs of multifunctional equipment.

1. Industrial salt spray corrosion resistance test: The product has passed standardized industrial salt spray corrosion resistance testing, simulating home humidity, temperature difference changes, and dust corrosion conditions. After testing, the shaft has no rust spots, oxidation corrosion, coating peeling, or jamming, effectively solving the problem of carbon steel material rust prone short boards. It has excellent moisture and rust resistance performance and can be used in indoor humid environments for a long time, eliminating after-sales problems such as shaft rust, jamming, rotation failure, and appearance aging.

2. Ten thousand vibration fatigue tests: After tens of thousands of multi angle angle adjustment, hover self-locking, and simulated high-frequency vibration fatigue tests of the fan, the shaft body has no deformation, extremely low torque attenuation, constant locking accuracy, outstanding anti vibration and anti fatigue performance, long-term use does not loosen, fall, have no abnormal noise, and damping does not fail, greatly reducing the overall failure rate and maintenance cost of the desk lamp fan.

3. Strong adaptability with adjustable damping: Supports flexible torque adjustment, suitable for desk lamp and fan all-in-one machines of different specifications, with a wider range of adaptation scenarios and stronger universality.

4. Silent and smooth operation+anti shake stable stop: precision gap matching design, gentle and quiet angle adjustment, no mechanical hard friction noise; Anti seismic and anti shake structure, eliminating the shaking and angle deviation of the fan head during operation, providing a better user experience.

4、 Product adaptation scenarios and core commercial value

This one line adjustable damping shaft is widely compatibleLED fan desk lamp, 2-in-1 lighting and hair dryer, foldable fan eye protection desk lamp, student multifunctional reading and writing desk lamp, desktop office lighting and hair dryer desk lamp, portable storage fan desk lamp.

Practical value: Multi angle adjustable stop design, flexible locking of lighting and blowing angles, suitable for use in multiple scenarios; Exclusive anti shake structure solves the pain points of fan vibration and head drop, ensuring more stable operation; Silent and smooth adjustment, moisture-proof, rust proof and durable, greatly improving the user experience of end users. Quality Value: Made of high toughness carbon steel material that is wear-resistant, earthquake resistant, and not easily deformed, combined with mature anti-corrosion technology, it has passed dual tests of salt spray and fatigue for thousands of times, effectively eliminating after-sales problems such as equipment looseness, abnormal noise, rust, damping failure, and angle deviation, greatly extending the service life of the integrated machine and reducing the manufacturer's maintenance costs. Commercial value: A universal structure in a straight line, suitable for the vast majority of desk lamp and fan all-in-one machines on the market, simplifying manufacturer accessory selection and reducing stocking pressure; Supporting customized non-standard torque, size, and hole position, helping manufacturers optimize the internal structure of equipment, solve industry pain points such as unstable vibration and difficult angle locking of multifunctional equipment, create differentiated products that are anti shake, stable, smooth, and durable, and enhance core competitiveness in the terminal market.

5、 Manufacturer introduction: One stop customized matching for desk lamp fan shaft source manufacturer

Our factory specializes in research and development, as well as productionTable lamp fan special straight adjustable damping shaftAs the original manufacturer, we have been deeply involved in the field of precision damping hardware for small household appliances for many years. We specialize in the research and mass production of multifunctional lighting and blowing equipment, as well as intelligent damping accessories for small household appliances. We have a deep understanding of the core technical requirements for lightweight assembly, earthquake resistance, adjustable damping, moisture and rust prevention, and long-term stability of desk lamp and fan all-in-one machines. The factory has an independent research and development design, precision machining, comprehensive testing, and a full chain system for rapid delivery of large quantities. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

Our customized research and development capabilities are mature, and we continuously iterate processes to address industry pain points such as torque fixation, poor seismic resistance, easy rusting, and long-term loosening and falling of ordinary shafts. We can customize shaft specifications, installation hole positions, damping torque, and rotation angles according to customer equipment models, head load-bearing capacity, installation space, and torque feel requirements, and quickly respond to customer new product development, product upgrades, and large-scale production matching needs.

The factory's quality control system is strict and standardized, strictly implementing a closed-loop quality control process of raw material quality screening, integrated molding, hardening and strengthening, precise damping calibration, salt spray anti-corrosion testing, 10000 vibration fatigue testing, and full inspection of finished products. We strictly control the dimensional accuracy, rotational smoothness, torque stability, seismic resistance, and anti-corrosion performance of each batch of products, ensuring that the quality of batch products is unified and fully adapted to the harsh working conditions of multifunctional desk lamps and fans.

Our service system is complete, supporting spot wholesale, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop technical guidance for after-sales installation. We provide high adaptability, high stability, and high durability one-stop matching solutions for various home appliance and intelligent equipment manufacturers with a single type damping shaft.
