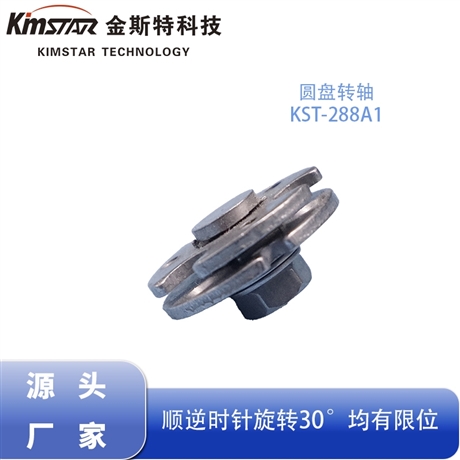

Projector disc damping shaft rotating body electronic product instrument dedicated hardware shaft

Description :

1、 Product design scheme: Precision damping structure for projector specific disc

For the needs of projectors and precision electronic instrumentsHigh precision fine-tuning, smooth rotation without shaking, precise locking at fixed points, lightweight assembly of the bodyOur factory adopts exclusive core operating conditionsHigh concentricity disk rotating body+global uniform damping arbitrary stop design schemeDifferent from the drawbacks of eccentric shaking, uneven damping, and loose positioning of ordinary shafts, the disc integrated symmetrical structure completely solves the problems of image shaking and angle deviation in projection equipment angle adjustment, meeting the needs of precise multi angle alignment and fine adjustment positioning of precision equipment.

High precision disc integrated rotating structure: The product adopts a symmetrical disc integrated molding design, with precise axis calibration and extremely high rotational concentricity. It rotates 360 ° without eccentricity, shaking, or shaking. Structurally eliminate issues such as image deviation, lens shake, and image blur during projector angle adjustment, ensuring the accuracy of projection equipment and precision instrument adjustment, and adapting to high-precision scenarios such as home projection fine-tuning, office projection alignment, and precision instrument detection and positioning. The disc is uniformly stressed and has strong load-bearing stability, which can stably support the self weight of the projector body. It will not loosen or fall down after long-term static placement.

360 ° global stepless stop design: equipped with multiple layers of precision friction damping components, the damping ratio is specially tuned for projection equipment, and the global damping is linear and uniform, without looseness, tightness, or jamming. Support device horizontal 360 ° infinite rotation, multi angle fine adjustment of up and down pitch, and precise self-locking hover immediately upon release. There is no rebound, no movement, and no offset. The projection image and instrument working posture can be fixed at any angle, accurately adapting to multi scene angle adjustment needs such as ceiling projection, desktop placement, side projection, and storage.

Lightweight embedded adaptation design: The overall structure is ultra-thin and compact, suitable for embedded installation inside narrow bodies of projectors and precision electronic instruments, without occupying device space, in line with the trend of lightweight and simple design of smart devices. Compatible with plastic and metal equipment casings, suitable for automated assembly line batch assembly, with seamless assembly and high-end overall quality. We can customize damping torque, disc specifications, and installation hole positions according to the weight, installation size, fine tuning feel, and instrument accuracy requirements of the projector model, comprehensively covering new product development, old model upgrades, private model upgrades, and large-scale production scenarios.

2、 Material structure: Industrial grade high-quality carbon steel, high-precision wear-resistant, fatigue resistant and non deformable

Considering the characteristics of long-term static load-bearing capacity, frequent angle adjustment, indoor multi scene use, and humid and dusty air conditions of the projector, this disc damping shaft is carefully selectedHigh toughness industrial grade high-quality carbon steel materialThe material is dense and uniform, with high purity, sufficient hardness, excellent deformation resistance, and fatigue resistance, fully meeting the environmental protection material standards for precision electronics and smart home appliances. Compared to ordinary iron shafts, carbon steel substrates have stronger wear resistance, are less prone to deformation, and have better torque stability, solving common quality problems such as precision equipment shaft accuracy deviation, looseness and slippage, damping attenuation, rusting and lagging from the root.

Integrated precision forming process: The disc body and the axis are formed by integrated forging without splicing or welding weak points. The overall structural strength is high and the stress is balanced, eliminating deformation and eccentricity problems caused by welding stress. It can withstand the fatigue loss caused by repeated fine-tuning, rotation, and static load-bearing of the projector for a long time, maintaining the accuracy of the axis and structural stability for a long time, without problems such as rotational shaking or angular displacement.

Precision hardening grinding process: The core damping friction disc surface adoptsHigh frequency quenching hardening+CNC micro precision grinding processThe friction surface is smooth and even, and the clearance between the components is precise and controllable, ensuring a uniform and stable 360 ° damping output. Long term fine adjustment has a delicate and consistent feel, without lagging, dryness, or mechanical impact, meeting the high-precision adjustment requirements of precision equipment.

Multi layer anti rust and anti-corrosion process: The surface is treated with precision electroplating and passivation composite anti rust treatment. The coating is thick and dense, with strong adhesion, which can effectively isolate air moisture, dust, slight oxidation corrosion, prevent rusting of carbon steel substrate, coating peeling, shaft jamming and other problems. It is resistant to daily friction, moisture, aging, and suitable for long-term stable use in multiple scenarios such as home, office, laboratory, etc.

3、 Core performance guarantee: salt spray testing+10000 precision fatigue testing instrument level strict quality control

Our factory's dedicated disc damping shaft for projectors is produced strictly in accordance with the quality standards for precision electronic instrument accessories. Sampling and full inspection are carried out for all batches, and multiple rigorous performance tests have been passed. The quality far exceeds that of ordinary civilian shafts and is suitable for high-end projection and long-term high-precision use of precision instruments.

1. Industrial salt spray corrosion resistance test: The product has passed standardized industrial salt spray corrosion resistance testing, simulating complex environments such as humidity, dust, and temperature differences. After testing, the shaft has no oxidation white spots, rust corrosion, coating peeling, or axis jamming. It has excellent moisture and rust prevention, oxidation resistance, and effectively solves after-sales problems such as long-term indoor use of equipment, moisture and rust, rotation jamming, and appearance aging. It has strong weather resistance.

2. Ten thousand precision rotation fatigue tests: After tens of thousands of 360 ° full range rotations, fine angle adjustments, and hover lock fatigue tests, the disc structure has no deformation, no axis offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency fine adjustments do not loosen, shake, make abnormal noises, or fail damping, continuously ensuring stable projection equipment images and precise instrument adjustments, greatly reducing equipment repair failure rates.

3. High precision anti shake rotation: With a high concentricity disk structure, the rotation is smooth and without shaking, completely solving the problems of projection image shaking and imaging blur, and meeting the high-precision adjustment standards of precision equipment.

4. Silent and Smooth+Long term Stability: Precise gap matching design, gentle and silent angle adjustment process, no mechanical friction noise, suitable for high-end intelligent devices with exquisite texture; The damping performance is long-lasting and does not decay, greatly improving the overall service life of the machine.

4、 Product adaptation scenarios and commercial value

This precision disc damping shaft is widely compatibleHome intelligent projectors, office high-definition projection equipment, portable mini projectors, intelligent rotating display devices, small industrial precision instruments, laboratory adjustable rotating equipment, various digital rotating electronic products.

Practical value: High precision anti shake rotation design, completely solving the pain points of projection image shaking and angle deviation, precise adjustment, and stable positioning; 360 ° flexible locking angle, suitable for multi scene projection use; Silent and smooth, rust resistant and durable, greatly improving the end-user experience and device stability. Quality Value: High quality carbon steel material is wear-resistant, fatigue resistant, and not easy to deform. It is equipped with strict anti-corrosion technology. Through dual testing of salt spray and fatigue, it effectively eliminates equipment looseness, abnormal noise, rust, damping failure, accuracy decline and other faults, greatly extending the service life of projection equipment and precision instruments, and reducing the maintenance costs of manufacturers. Commercial value: Highly versatile, suitable for the vast majority of projection equipment and small precision rotating electronic products on the market, simplifying manufacturer accessory selection and reducing stocking pressure; Support non-standard precision customization, assist manufacturers in optimizing equipment rotation structure, improving overall precision and high-end texture, creating differentiated products with high precision, high stability, anti shake and durability, effectively enhancing the core competitiveness of terminal product market.

5、 Manufacturer introduction: Projector disc damping shaft source manufacturer precision customized matching

Our factory specializes in research and development, as well as productionSpecial disc damping shaft for projectors and precision electronic instrumentsAs the original manufacturer, we have been deeply involved in the field of precision damping hardware for many years, focusing on the research and mass production of damping accessories for intelligent projection equipment, precision digital, and industrial control instruments. We have a deep understanding of the core technical standards for high-precision, high stability, anti shake and noise reduction, moisture and rust prevention, and long-term fatigue resistance of precision equipment. The factory has a production system that includes independent research and development, precision machining, instrument level comprehensive testing, and large-scale rapid delivery throughout the entire production chain. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

Our customized research and development capabilities are mature, and we continuously iterate our processes to address industry pain points such as poor precision, rotational vibration, uneven damping, susceptibility to corrosion, and fast fatigue attenuation of ordinary disc shafts. We can customize the disc size, threading hole diameter, damping torque, and installation hole position according to customer equipment load-bearing capacity, installation space, accuracy requirements, and damping feel, and quickly respond to customer needs for new product development, equipment upgrades, and large-scale production support.

The factory's quality control system is strict and standardized, strictly following the quality inspection standards for precision instrument accessories. It is equipped with high-precision shaft processing equipment and a complete set of professional testing instruments. It strictly follows the closed-loop quality control process of raw material accuracy screening, integrated molding, precision grinding, damping calibration, salt spray anti-corrosion testing, 10000 fatigue testing, and finished product inspection. It strictly controls the concentricity, dimensional accuracy, torque stability, rotation smoothness, and anti-corrosion performance of each batch of products, ensuring that the quality of the batch of products is unified and fully adapted to the harsh working conditions of high-end precision equipment.

Our service system is complete, supporting spot wholesale, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales equipment condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, high corrosion resistance, and long-life disc damping shaft matching solutions for major intelligent equipment and precision instrument manufacturers.

if neededContact: Manager Guo 17375546868
