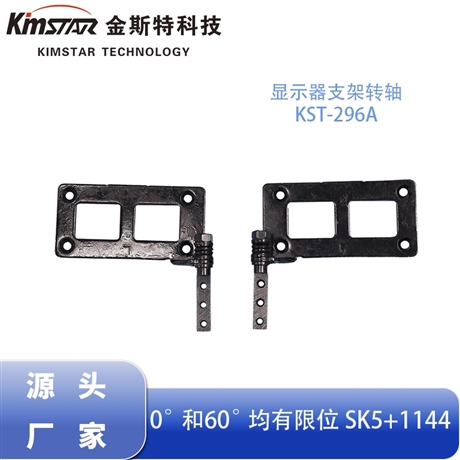

Flip electronic display instrument with 360 degree rotating shaft and matching hardware damper manufacturer

Description :

1、 Product design scheme: Flip up display instrument with exclusive 360 ° precision damping structure

Different from ordinary household equipment shafts, electronic display instruments require shaftsRotation accuracy, positioning stability, angle flexibility, and smooth operationThe requirements are extremely high. Our factory has customized a dedicated 360 ° flip cover damping design solution to meet the needs of multiple debugging scenarios, high alignment accuracy, and comprehensive viewing angle adjustment for flip display devices. The design takes into account flexible rotation, precise locking, equipment protection, and long-term stability, and is suitable for industrial use standards of various precision display instruments.

360 ° panoramic infinite flip design: breaking the traditional 90 °/180 ° angle limit of the pivot, supporting the display panel to rotate freely in all directions without dead angles, and adjusting the flip in both directions without jamming, obstruction, or angle limitations. According to the scenarios of instrument detection, data debugging, image observation, and multi person operation, the screen can freely switch between horizontal and vertical viewing angles, as well as tilt angles, completely solving the problems of traditional instrument viewing angles being single and inconvenient for debugging and alignment, greatly improving equipment operation flexibility and work efficiency.

Precise and stepless anti shake structure: Built in multi-layer stacked high-precision friction damping components, with instrument level torque precise tuning, the damping output is linear and uniform throughout the entire range, achieving zero to 360 ° release and stepless self-locking. It can stably lock the adjustment angle of the display panel, without rebound, shaking, or falling, effectively eliminating problems such as screen deviation, screen shaking, and misalignment caused by instrument touch operation and equipment vibration, ensuring the accuracy of precision display equipment debugging and data accuracy.

Built in wire protection+lightweight adaptation design: optimized hollow wire structure, adapted to the internal wiring harness of the instrument, 360 ° rotation without pulling or twisting the internal circuit, effectively protecting the integrity of the equipment circuit and reducing the probability of instrument failure. The overall structure is ultra-thin and compact, optimized for the narrow body space of precision instruments, supports embedded invisible installation, does not occupy internal space of the equipment, is compatible with various metal and plastic instrument housings, adapts to automated batch assembly, and conforms to the design trend of lightweight and integrated precision instruments.

Long term anti attenuation structure upgrade: Targeting the high-frequency opening and closing, repeated angle adjustment, and long-term static load-bearing conditions of instruments, the damping locking structure and friction ratio have been upgraded to significantly improve fatigue and anti loosening performance. The damping force is stable and does not slip during long-term high-frequency use, maintaining a smooth and unified adjustment feel. According to the size of the instrument screen, the weight of the panel, the debugging feel, and the installation specifications, the damping torque, shaft length, and installation hole position can be customized one by one to fully adapt to new product development, equipment modification, and large-scale production matching.

2、 Material and process: Industrial grade high-strength precision material, high-precision wear-resistant, corrosion-resistant and non deformable

In combination with the harsh working conditions of high dust, humid air, high-frequency debugging, and long-term static operation in the electronic display instrument workshop, this instrument is equipped with a specially selected damping shaftHigh toughness industrial grade carbon steel/304 stainless steel precision substrateThe material is dense and free of impurities, with uniform hardness and sufficient toughness. It has excellent resistance to deformation, wear, fatigue, and oxidation, fully meeting the environmental and safety material standards for industrial electronics and medical instruments. It eliminates quality problems such as precision deviation, deformation looseness, rusting, lagging, and damping failure of ordinary shafts from the root.

Integrated precision forming process: The main body of the shaft, the rotating shaft core, and the installation position are formed by integrated forging without splicing gaps or welding weak points. The overall structural strength is high and the force is uniform and stable. Eliminate the problems of axis eccentricity and structural deformation caused by welding stress, maintain ultra-high rotational concentricity for a long time, ensure that the instrument screen rotates without eccentricity or shaking, and continuously guarantee the accuracy of equipment debugging.

Damping surface hardening precision grinding process: The core damping friction position adoptsHigh frequency quenching and hardening+CNC micro precision grindingProcess processing ensures smooth and even friction surfaces, precise and controllable clearance between components, uniform and stable damping output across the entire range, without any looseness, tightness, dryness, or mechanical hard impact. The flip cover rotates gently and quietly throughout the entire process, without any metal friction or abnormal noise, matching the high-end and exquisite equipment texture of precision instruments.

Multiple anti-corrosion and moisture-proof processes: The surface is treated with thickened precision electroplating+passivation and rust prevention composite strengthening treatment. The coating is dense and firm, with strong adhesion and not easy to fall off. It can effectively isolate industrial dust, humid water vapor, and slight acidic and alkaline environment corrosion, and prevent problems such as oxidation, rust, blackening, stuttering, and rotation failure of the shaft. It is resistant to daily friction, moisture aging, and suitable for long-term stable use in multiple scenarios such as workshops, laboratories, and medical rooms.

3、 Core performance guarantee: salt spray testing+10000 precision fatigue testing instrument level strict quality control

Our factory's flip electronic display instrument damping shaft strictly follows the quality standards of industrial precision instrument accessories in production. The entire batch undergoes sampling and full inspection, performance retesting, and has passed multiple rigorous performance tests. The quality far exceeds ordinary civilian shafts and is suitable for long-term high-frequency use of precision equipment.

1. Industrial salt spray anti-corrosion testing: The product has passed standardized industrial salt spray corrosion resistance testing, simulating complex working conditions such as humidity, dust accumulation, temperature difference changes, and slight corrosion in industrial workshops. After testing, the shaft has no oxidation white spots, rust corrosion, coating detachment, or shaft jamming. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, and can effectively adapt to long-term industrial use of instruments and equipment, eliminating after-sales problems such as shaft jamming, rotation failure, and equipment failure caused by humid environments.

2. Ten thousand precision flip fatigue tests: After tens of thousands of 360 ° full range rotations, multi angle flip opening and closing, and hover self-locking fatigue tests, the shaft structure has no deformation, concentricity has no offset, torque attenuation is extremely low, and positioning accuracy is constant. Long term high-frequency debugging ensures no looseness, no falling, no abnormal noise, and no damping failure, continuously guaranteeing smooth rotation and precise positioning of the display panel, greatly reducing the failure rate and maintenance cost of precision instrument repair.

3. High precision anti shake positioning: High concentricity axis core design, 360 ° rotation without eccentric shaking, completely solves the problems of instrument screen shaking, image offset, and inaccurate touch, meeting the high-precision debugging standards of precision equipment.

4. Silent and long-lasting stable operation: Precise gap matching design, silent and noiseless opening and closing rotation throughout the entire process, suitable for quiet work scenarios in laboratories, medical facilities, and offices; The damping performance is long-lasting and does not decay, effectively extending the service life of the entire instrument.

4、 Product adaptation scenarios and commercial core values

This 360 ° rotating flip damping shaft is widely compatibleIndustrial industrial control flip display screen, medical testing display instrument, portable intelligent terminal panel, small testing equipment flip screen, vehicle mounted precision display instrument, laboratory debugging flip equipment.

Practical value: 360 ° all-round free rotation, unlimited viewing angle, suitable for multi scene device debugging, data observation, operation and use; High precision arbitrary stop anti shake structure, stable screen without shaking, ensuring precise instrument debugging accuracy; Silent and smooth, moisture-proof and rust proof, long-lasting durability, greatly improving the stability of equipment use and terminal operation experience. Quality value: Made of high-strength and precision materials that are wear-resistant, fatigue resistant, and not easily deformed. Through rigorous testing with salt spray and ten thousand cycles of fatigue, common faults such as rusting, loosening, falling, jamming, damping failure, and angle deviation of the instrument shaft are effectively eliminated, greatly reducing the after-sales failure rate of equipment and extending the service life of precision instruments. Commercial value: Strong universality, suitable for the vast majority of flip type precision electronic display devices on the market, simplifying manufacturer accessory selection and reducing stocking pressure; Supporting non-standard precision customization, the structure can be optimized according to equipment accuracy, load-bearing capacity, and size requirements, helping equipment manufacturers improve overall accuracy, texture, and stability, creating differentiated products with high precision and durability, and enhancing core competitiveness in the terminal market.

5、 Manufacturer introduction: Precision display instrument shaft source manufacturer one-stop customized matching

Our factory specializes in research and development, as well as productionElectronic display instrument 360 ° rotating flip damping shaftAs the original manufacturer, we have been deeply involved in the field of industrial precision damping hardware for many years, focusing on the research and mass production of precision damping accessories for industrial control equipment, medical instruments, and intelligent terminals. We have a deep understanding of the core technical requirements for high-precision, high stability, anti shake and noise reduction, moisture-proof and anti-corrosion, and long-term fatigue resistance of precision display equipment. The factory has a production system that includes independent research and development, precision machining, instrument level comprehensive testing, and large-scale rapid delivery throughout the entire production chain. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

Our customized research and development capabilities are mature, targeting industry pain points such as poor precision of ordinary instrument shafts, rotation lag, easy rusting, long-term loosening and falling, fast damping attenuation, and image shaking. We continuously iterate processes to meet customer needs for instrument models, screen load-bearing capacity, installation space, debugging accuracy, torque and tactile sensation. We can customize shaft body specifications, installation hole positions, damping torque, and rotation angles to quickly respond to customer needs for new product development, equipment upgrades, and large-scale production support.

The factory's quality control system is strictly standardized, and the closed-loop quality inspection process for precision instrument accessories is strictly implemented. From raw material quality screening, integrated molding, hardening and strengthening, precise damping calibration, to salt spray anti-corrosion testing, ten thousand precision fatigue testing, and full inspection of finished products, the concentricity, dimensional accuracy, torque stability, rotation smoothness, and anti-corrosion performance of each batch of products are strictly controlled layer by layer, ensuring that the quality of batch products is unified and fully adapted to the harsh working conditions of industrial grade precision instruments.

Our service system is complete, supporting spot wholesale, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales equipment condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, high corrosion resistance, and long-life exclusive damping shaft matching solutions for major industrial control, medical, and intelligent equipment manufacturers.

if neededContact: Manager Guo 17375546868
