Electronic display screen wire axis remote control device display beauty instrument I-shaped bracket axis

Description :

1、 Product design scheme: Beauty device/display screen exclusive I-shaped wire damping structure

For beauty devices, remote control displays, and small electronic devicesThin and narrow body, hidden wiring inside, frequent flipping and angle adjustment, high handheld vibration, requiring precise hovering and positioningOur factory adopts an innovative I-shaped hollow wire damping design scheme for the core working conditions, which is different from the drawbacks of ordinary solid shafts that cannot be wired, exposed wires are messy, and are easy to pull and break. It takes into account the four core performance of structural load-bearing, line protection, angle adjustment, and installation adaptation, and perfectly adapts to the needs of various small intelligent electronic devices.

Hollow wire hidden protection design: Smooth through wire holes are reserved at the center of the shaft, and the inner wall is precisely polished without burrs. The equipment power lines, signal lines, and data lines can be directly threaded through the shaft to achieve a hidden layout of the entire machine circuit. Thoroughly solve the problems of wire exposure, pulling, bending, wear, breakage, and poor signal contact caused by repeated flipping and rotation of equipment. It not only protects the safety of internal circuits, but also simplifies the equipment assembly process, making the overall appearance more concise and orderly, greatly improving the service life and product quality of the equipment.

360 ° global arbitrary stop and fall prevention structure: Built in multi-layer precision stacked damping friction components, precise torque adjustment for the lightweight and load-bearing conditions of the beauty device and the display screen, supporting 360 ° free rotation and multi angle flipping up and down, achieving true stepless self-locking and stopping when released. It can accurately lock the device posture at any angle, without rebound, shaking, or falling, eliminating common problems such as lowering the head during beauty device operation, remote screen displacement, and screen angle deviation. It is stable and reliable for handheld operation and static placement.

I-shaped high load-bearing stable structure: Adopting the classic I-shaped bridge load-bearing structure, the flanges installed at both ends are evenly stressed, which has stronger load-bearing capacity and higher stability compared to a straight axis, and is less prone to deformation and warping. It can effectively resist the structural damage caused by the working vibration of the beauty device, daily handheld collision, and frequent angle adjustment of the equipment. It will not loosen or slip after long-term use, and continuously maintain damping stability and positioning accuracy.

Lightweight universal adaptation design: The overall structure is compact and streamlined, optimized for small electronic devices with limited internal space, supports embedded invisible installation, adapts to various plastic and metal device shells, and is compatible with automated assembly line batch assembly. We can customize the wire diameter, damping torque, shaft length, and installation hole position according to the device model, wire thickness, load-bearing capacity, and installation space, comprehensively covering new product development, old model upgrades, private mold upgrades, and large-scale production scenarios.

2、 Material and process: High toughness carbon steel, precision material, wear-resistant, fatigue resistant, moisture-proof, and corrosion-resistant

Combining the complex working conditions of home humidity, high moisture, corrosion of cosmetics, long-term indoor dust accumulation, high-frequency flipping, and static load-bearing of display screens and remote control devices, this I-shaped cable shaft is carefully selectedHigh purity industrial grade carbon steel materialThe material is dense and uniform, with high purity, sufficient toughness, deformation resistance, wear resistance, and excellent fatigue resistance. It fully meets the environmental and safety material standards for consumer electronics and smart small appliances, and solves quality problems such as easy deformation, rusting, fast damping attenuation, and jamming noise of ordinary shafts from the root.

Integrated forging and forming process: The I-shaped body, shaft core, and installation position are formed by integrated forging and forming, without splicing gaps or welding weak points. The overall structural strength is high and the stress is balanced and stable. Eliminate problems such as eccentricity of the shaft core, structural deformation, cracking, and detachment caused by welding stress. Long term repeated rotation, flipping, and vibration are not easy to loosen or deform, and always maintain ultra-high rotational concentricity to ensure smooth equipment adjustment without shaking.

Damping surface hardening precision grinding process: The core damping friction part adoptsHigh frequency quenching hardening+CNC micro precision grinding processProcessing: The friction surface is smooth and even, the clearance between components is precise and controllable, and the damping output is linear and uniform throughout the entire range, without any looseness, tightness, dryness, or mechanical hard impact. The device flips and rotates gently and quietly throughout the entire process, without any metal friction or abnormal noise, greatly improving the high-end texture and user experience of beauty devices and display devices.

Multiple anti rust and anti-corrosion surface technology: The surface is treated with thickened precision electroplating+passivation anti rust composite strengthening treatment. The coating is thick and dense, with strong adhesion and is not easy to peel off. It can effectively isolate moisture, air dust, hand sweat, and trace corrosive media of cosmetics, prevent carbon steel substrate oxidation, rust, blackening, lagging, and rotation failure. It is resistant to daily friction, moisture aging, and suitable for long-term stable use in multiple scenarios such as bathrooms, bedrooms, offices, and cars.

3、 Core Performance Guarantee: Salt Spray Testing+Ten Thousand Fatigue Tests, Electronic Grade Strict Quality Control

Our factory produces I-shaped wire damping shafts strictly in accordance with the quality standards for intelligent electronic devices and beauty instrument accessories. The entire batch undergoes sampling and full inspection, as well as performance retesting. Through multiple rigorous performance tests, the quality far exceeds that of ordinary civilian shafts and is suitable for long-term high-frequency use of small intelligent devices.

1. Industrial salt spray anti-corrosion testing: The product has passed standardized industrial salt spray corrosion resistance testing, simulating complex working conditions such as wet corrosion of beauty equipment, indoor dust oxidation, and temperature difference changes. After testing, the shaft has no oxidation white spots, rust or corrosion, no coating peeling off, and no shaft jamming. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, completely solving after-sales problems such as rusting, lagging, unsmooth rotation, line wear, and equipment failure of the shaft in humid environments. Its weather resistance fully meets the standard for long-term use of civilian intelligent devices.

2. Ten thousand flips and rotations fatigue test: After tens of thousands of 360 ° global rotations, multi angle flip flips, and hover self-locking fatigue tests, the I-shaped structure has no deformation, no concentricity offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency use ensures no looseness, no falling, no abnormal noise, and no damping failure, continuously guaranteeing accurate equipment angles and stable operation, significantly reducing the overall repair failure rate of beauty devices and display equipment.

3. Wire protection and anti-wear performance: The inner wall of the wire hole is smooth and free of burrs, and the internal wires are not cut or worn by repeated rotation and flipping, providing comprehensive protection for the safety of the circuit and effectively reducing the probability of equipment circuit failures.

4. Silent and anti shake long-lasting stability: precise gap matching design, adjustable throughout the entire process to be silent and noise free, suitable for home, office, and beauty scenes; Anti vibration damping structure effectively resists equipment working vibration, avoiding angle deviation and image shaking.

4、 Product adaptation scenarios and commercial core values

This I-shaped over line damping shaft is widely compatibleVarious household beauty instruments, skincare and therapy equipment, flip remote control display screens, small industrial control displays, portable intelligent display terminals, desktop mini display stand devices.

Practical value: Hollow hidden wiring design, wire protection to prevent breakage and eliminate signal failures, resulting in a cleaner appearance of the equipment; 360 ° arbitrary hovering and adjustable angle, easy to operate, stable positioning, solving the pain point of equipment falling and shaking; Silent and smooth, moisture-proof and rust proof, suitable for high-frequency use in multiple scenarios, greatly improving the terminal experience. Quality Value: High strength carbon steel material is wear-resistant, fatigue resistant, and not easy to deform. Through rigorous testing with salt spray and ten thousand fatigue cycles, it effectively eliminates common faults such as rusting, loosening, jamming, damping failure, and angle deviation of the rotating shaft, greatly extending the service life of intelligent equipment and reducing the after-sales operation and maintenance costs of manufacturers. Commercial value: The I-shaped structure has strong universality and is suitable for the vast majority of small flip electronic devices on the market, simplifying the selection of accessories for manufacturers and reducing stocking pressure; Supporting non-standard precision customization, helping equipment manufacturers optimize the body structure, solve industry pain points such as messy wiring and unstable equipment, create differentiated products with high-end texture, stability and durability, and enhance core competitiveness and product premium in the terminal market.

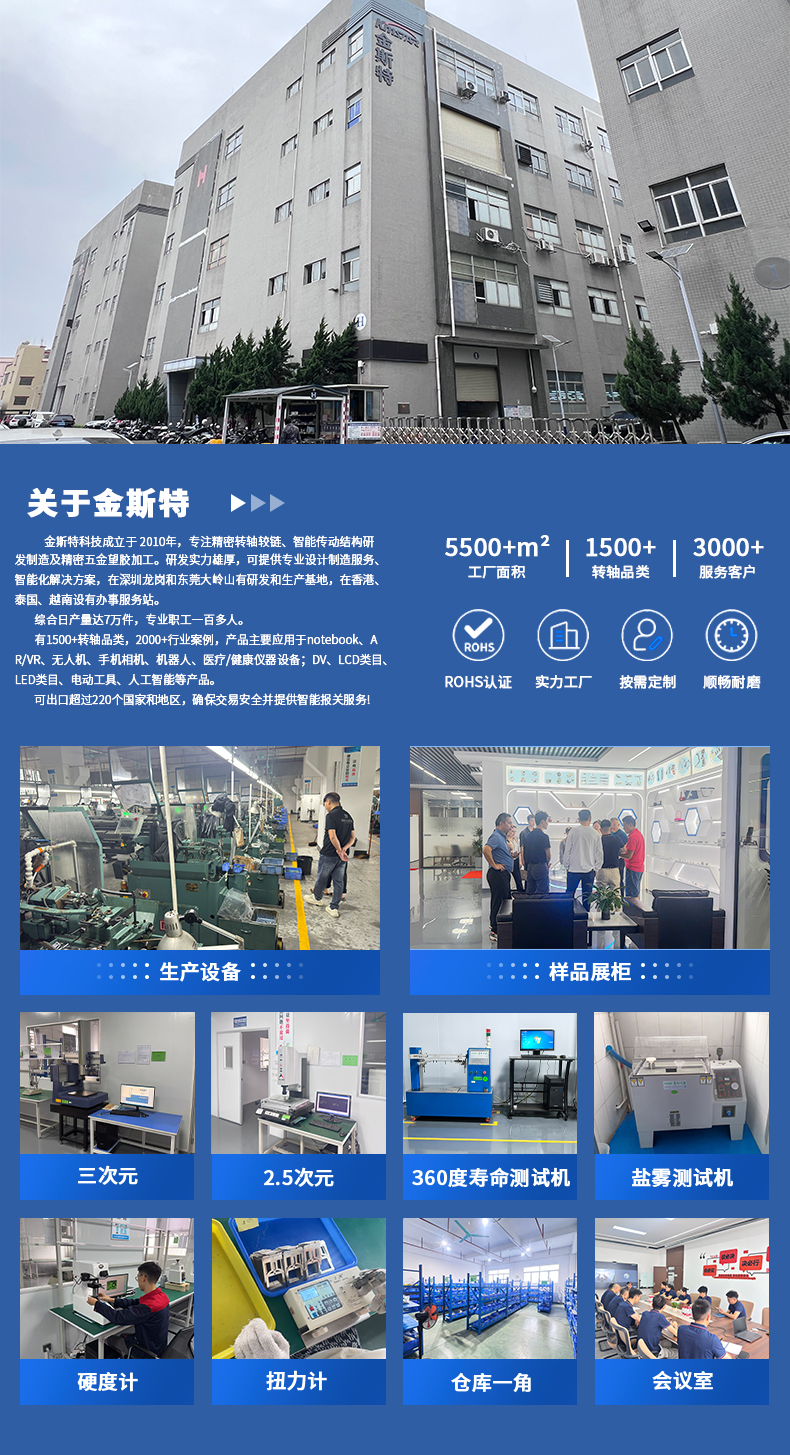

5、 Manufacturer introduction: One stop precision customized matching for the source manufacturer of I-shaped wire passing shaft

Our factory specializes in research and development, as well as productionBeauty equipment, display screen dedicated I-shaped wire damping shaftAs the original manufacturer, we have been deeply involved in the field of 3C digital and intelligent small home appliance damping hardware for many years. We specialize in the research and mass production of damping accessories for small flip electronic devices, intelligent beauty instruments, and precision display devices. We have a deep understanding of the core technical requirements for concealed wiring, silent smoothness, precise hovering, moisture and rust prevention, and earthquake resistance and fatigue resistance of lightweight devices. The factory has independent research and development, precision CNC machining, electronic grade comprehensive testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

Our customized research and development capabilities are mature, and we continuously iterate our processes to address industry pain points such as limited wire routing, easy to wear wires, long-term loosening and falling, uneven damping, and susceptibility to rusting and abnormal noise in ordinary shafts on the market. We can customize wire diameter, shaft size, installation hole spacing, damping torque, and rotation angle one-on-one according to customer equipment weight, wire specifications, installation space, and torque feel requirements, and quickly respond to customer new product development, equipment upgrades, and large-scale production matching needs.

The factory's quality control system is strict and standardized, strictly implementing a closed-loop quality inspection process. From raw material screening, integrated molding, hardening and strengthening, precise damping calibration, to salt spray anti-corrosion testing, fatigue testing, and full inspection of finished products, each batch of products is strictly controlled in terms of dimensional accuracy, rotational smoothness, torque stability, wire protection performance, and anti-corrosion performance, ensuring that the quality of batch products meets the standard uniformly and fully adapts to high-end intelligent electronic equipment matching standards.

Our service system is complete, supporting spot wholesale, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, and high durability wire damping shaft overall matching solutions for major beauty equipment, intelligent electronics, and display equipment manufacturers.

if neededContact: Manager Guo 17375546868
