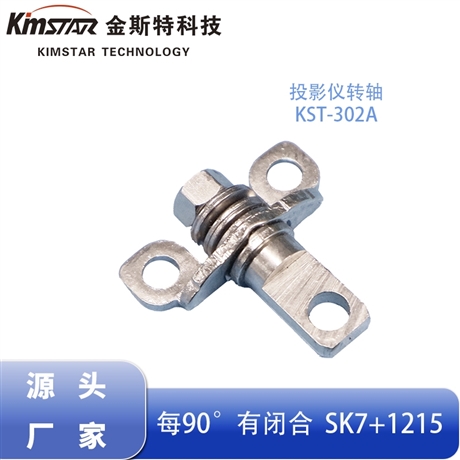

Electronic instrument shaft rotates 360 degrees, stops at any point, fan, beauty equipment, damper manufacturer

Description :

1、 Product design scheme: universal damping structure for instruments/fans/beauty equipment

In response to the diverse working conditions of high-precision debugging of electronic instruments, frequent flip operation of beauty equipment, multi angle wind direction adjustment of rotating fans, long-term static placement of equipment, and frequent working vibrations, our factory has upgraded the universal precision damping design scheme. Different from the drawbacks of ordinary shaft limit, poor locking force, easy loosening, and rough hand feel, it takes into account the four core performance of flexible adjustment, precise locking, seismic and anti shake, and long-term durability of the equipment, and is suitable for all types of small flip electronic products.

360 ° global infinite rotation design: abandons the traditional shaft angle limit structure, supports horizontal 360 ° free rotation without dead angles, and is equipped with up and down pitch flip adjustment, with no jamming, obstruction, or angle limitation throughout the entire process. The fan can adjust the direction of air supply as desired, with no blind spots in the air supply; The beauty device can be operated from multiple angles and is suitable for handheld and desktop use; The electronic instrument screen can switch horizontally and vertically, adjust and align from multiple angles, meeting various needs such as equipment debugging, daily use, and scene storage, greatly improving the flexibility of equipment use.

High precision stepless stop and anti shake structure: Built in multi-layer stacked high-precision friction damping components, accurately matching damping torque for different self weights of light load fans, medium load beauty devices, and precision instruments, truly achieving 0-360 ° arbitrary angle release stop and stepless self-locking. No rebound, no falling, no shaking, completely solves common problems such as fan shaking and displacement, beauty device flip head lowering, instrument screen touch deviation, equipment vibration displacement, etc. Static placement and dynamic operation are stable and accurate throughout the process.

Lightweight and compact universal adaptation structure: The overall volume is concise and compact, suitable for embedded and invisible installation in various small cavities of devices, does not occupy internal space, compatible with plastic, metal, aluminum alloy equipment shells, and suitable for batch assembly on automated assembly lines. Supports both solid regular and hollow cable options, with a smooth and burr free inner wall of the hollow shaft core. It can hide the power and signal wires that run through the equipment, avoiding repeated flipping, pulling, and grinding of the wires, effectively protecting the circuit, preventing poor contact and wire breakage of the equipment.

Long term anti attenuation and seismic structure: Optimized damping preloading locking structure, improved friction fit stability, effectively resisted fan motor vibration, beauty instrument working vibration, and instrument equipment operation vibration, greatly improved damping slip, torque attenuation, and positioning failure caused by long-term high-frequency flipping, unified opening and closing feel and precise hovering tens of thousands of times. We can customize damping torque, shaft specifications, and installation hole positions based on device type, load-bearing capacity, installation space, and user experience, fully adapting to new product development, old model upgrades, private mold upgrades, and large-scale production scenarios.

2、 Material and process: High strength and wear-resistant material suitable for long-term use in multiple scenarios

Combined with the complex working conditions of home humidity, sweat corrosion, long-term idle vibration of fan equipment, dust accumulation and variable temperature difference in electronic instrument workshops, this universal damping shaft is carefully selectedHigh toughness industrial grade carbon steel materialThe material is dense and uniform, with moderate hardness and excellent toughness. It has outstanding resistance to deformation, wear, fatigue, and seismic performance, fully meeting the environmental protection material standards for consumer electronics, small appliances, and precision instruments. It solves quality problems such as deformation, rusting, damping failure, jamming noise, and short service life of ordinary shafts from the root.

Integrated precision forming process: The main body, core, and mounting base of the shaft are forged and formed in one piece, with no splicing gaps or weak welding points. The overall structural strength is high and the force is uniform and stable. Eliminate the problems of eccentricity, structural deformation, cracking and loosening of the shaft core caused by welding stress. Long term repeated rotation, flipping, and vibration are not easy to loosen and deform. Always maintain ultra-high rotational concentricity to ensure smooth adjustment of fans, beauty devices, and electronic instruments without shaking.

Damping surface hardening and precision grinding process: The core damping friction working surface adoptsHigh frequency quenching hardening+CNC micro precision grinding processProcessing: The friction surface is smooth and even, the clearance between components is precise and controllable, and the damping output is linear and uniform throughout the entire range, without any looseness, tightness, dryness, or mechanical hard impact. The device flips and rotates quietly and softly throughout the entire process, without any metal friction or abnormal noise. It is suitable for quiet use scenarios such as home, office, and laboratory, and enhances the overall high-end texture of the device.

Multiple anti-corrosion and moisture-proof processes: The surface is treated with thickened precision electroplating and passivation sealing composite anti rust treatment. The coating is thick and dense, with strong adhesion and is not easy to peel off. It can effectively isolate moisture, air dust, hand sweat, trace corrosive media, and prevent rusting, blackening, jamming, and rotation failure of the shaft. It is resistant to moisture, aging, and frequent friction, and is perfectly suitable for long-term stable use in various scenarios such as beauty equipment, desktop fans, and precision instruments.

3、 Core Performance Guarantee: Salt Spray Test+Ten Thousand Fatigue Tests Strict Quality Control

Our factory produces universal damping shafts for multiple devices, strictly adhering to the dual quality standards of small household appliances and precision electronic instruments. All batches undergo sampling and testing, as well as performance retesting, to ensure stable operation of terminal equipment with strict industrial level testing standards. The quality far exceeds that of ordinary civilian shafts.

1. Industrial salt spray anti-corrosion testing: The product passes standardized industrial neutral salt spray testing, simulating complex working conditions such as home humidity, workshop dust, temperature difference corrosion, sweat erosion, etc. After testing, the shaft has no oxidation white spots, rust spots or corrosion, no coating peeling off, and no axis jamming failure. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, effectively solving after-sales problems such as long-term use of beauty equipment, fans, and electronic instruments that are affected by moisture, rust, rotation lag, appearance aging, and equipment failure.

2. Ten thousand precision fatigue tests: After tens of thousands of 360 ° full range rotations, repeated flip opening and closing, and multi angle hovering self-locking fatigue tests, the shaft body has no deformation, no concentricity offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency use ensures no looseness, no falling, no abnormal noise, and no damping failure, continuously guaranteeing stable equipment angle and precise adjustment, greatly reducing the failure rate of fan, beauty instrument, and precision instrument repair.

3. Seismic and anti shake performance: High concentricity axis core design, rotation without eccentric shaking, effectively resisting equipment working vibration, eliminating fan shaking, beauty device flip shaking, and instrument screen touch offset problems, ensuring stable equipment operation.

4. Silent and long-lasting stability: With precise gap ratio design, the entire process is silent and noise free, suitable for various quiet usage scenarios. The damping performance is long-lasting and does not decay, effectively extending the overall service life of various terminal devices.

4、 Product adaptation scenarios

This 360 ° rotating damping shaft has strong versatility and core compatibility:Electronic testing instruments, industrial flip display screens, desktop rotating fans, floor standing small fans, household beauty instruments, skincare and therapy equipment, portable flip smart devices, small digital standsVarious flip and rotate electronic products.

5、 Manufacturer Introduction: Multi Category Damping Shaft Source Customization Manufacturer

Our factory specializes in research and development, as well as production360 ° damping shaft for beauty equipment, rotating fans, and electronic instrumentsAs the original manufacturer, we have been deeply involved in the field of precision damping hardware for many years, focusing on the research and mass production of damping accessories for small household appliances, consumer electronics, industrial precision instruments, and intelligent beauty equipment. We are deeply familiar with the dual core technical requirements of silent and smooth operation, moisture and rust prevention, earthquake resistance and durability, and arbitrary hovering for civilian equipment, as well as high precision, low attenuation, and strong stability for industrial instruments. The factory has independent mold research and development, precision CNC machining, comprehensive performance testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

Our customized research and development capabilities are mature, targeting industry pain points such as uneven damping, easy rusting, long-term loosening and falling, vibration displacement, stuttering and abnormal noise, and worn parts of ordinary shafts in the market. We continuously iterate our processes, and can customize the shaft size, installation hole position, wire diameter, damping torque, and rotation angle according to the load-bearing capacity, installation space, wire specifications, and damping feel requirements of different equipment such as fans, beauty devices, and electronic instruments. We can quickly respond to customers' new product development, equipment upgrades, and large-scale production matching needs.

The factory's quality control system is strict and standardized, implementing a closed-loop quality inspection process: raw material screening → integrated molding processing → hardening and precision grinding treatment → precise damping calibration → salt spray anti-corrosion testing → 10000 fatigue tests → full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, rotational smoothness, torque stability, seismic resistance, and anti-corrosion performance, ensuring that the quality of the batch products meets the standard uniformly. At the same time, it is suitable for harsh working conditions of civilian small appliances, high-end beauty equipment, and industrial precision instruments.

Our service system is complete, supporting spot wholesale, rapid production scheduling for bulk orders, free sampling and trial installation, providing pre-sales condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high-precision, high stability, and high durability universal damping shaft overall matching solutions for major electronics, home appliances, and beauty equipment manufacturers.

if neededContact: Manager Guo 17375546868
