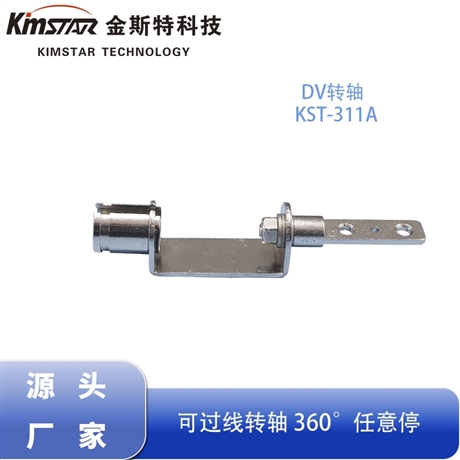

Display damping pivot, LCD screen, high torsion hinge, 360 ° arbitrary stop, hardware damper manufacturer

Description :

1、 Product design scheme: LCD large screen display with exclusive high torque damping structure

Unlike small digital lightweight pivot shafts, LCD displays and industrial control screens have a larger weight and higher center of gravity, which affects the pivot shaftLoad bearing capacity, torque stability, earthquake resistance and anti shake, positioning accuracyThe requirements are extremely high. Our factory has upgraded the high torque heavy load damping structure solution specifically for optimizing the working conditions of large screen equipment, completely solving the common problems of large screen falling, shaking, and angle deviation, while balancing adjustment flexibility and long-term structural stability.

360 ° global infinite free rotation designThe shaft supports continuous horizontal rotation of 360 ° without dead angles, and is equipped with multi angle flipping adjustment for up and down pitch, without any jamming points, angle limits, or travel obstacles. It can achieve screen horizontal and vertical switching, left and right angle reversal, and high and low angle fine-tuning, adapting to multi scene viewing needs such as office debugging, industrial control, commercial display, and home movie watching, with flexible adjustment and no blind spots.

Large torque heavy load arbitrary stop anti fall structureBuilt in multi-layer thickened precision damping friction components can accurately match high torque damping parameters according to the weight of screens of different sizes from 10-32 inches, with a wide range of adjustable torque intervals. Realize seamless self-locking from 0 to 360 °, stop immediately upon release, without rebound, shaking, or falling below zero, completely eliminating the problems of long-term use of large screen devices such as bowing, moving, and angle deviation. The touch operation, device vibration, and daily movement are stable throughout the entire process.

High seismic and anti shake reinforcement structureAdopting a thickened laminated damping locking structure, the pre tension is sufficient and the force is uniform, effectively resisting industrial equipment operation vibration, desktop collision, and daily frequent angle adjustment losses. The damping locking force is long-lasting and not loose, with excellent anti fatigue and anti vibration performance. Long term high-frequency adjustment still maintains precise positioning, eliminating screen shaking and image deviation, and meeting the long-term continuous operation needs of industrial equipment.

Universal Embedded Adaptation ArchitectureReasonable structural layout, simple installation, standard flange hole design, suitable for embedded installation of various display brackets, screen housings, and industrial control equipment housings, compatible with metal and plastic material bodies, and suitable for automated assembly line assembly. Available in solid regular and hollow cable styles, the hollow structure can hide the screen data cable and power cable, avoiding repeated rotation, pulling, and grinding of the cable, and protecting the integrity of the equipment circuit. Support on-demand customization of shaft diameter, length, hole spacing, torque parameters, suitable for new private molds, old model upgrades, and mass production.

2、 Material and process: Industrial grade high-strength thickened material, heavy-duty wear-resistant, long-lasting anti-corrosion

This high torque damping shaft is selected for the long-term static and heavy load, high-frequency angle adjustment, dusty and humid industrial workshops, and long-term exposed use in commercial environments of LCD displaysThick and high toughness industrial carbon steel materialThe board is thick, dense in material, high in hardness, and has strong load-bearing capacity. Its resistance to deformation, wear, and fatigue far exceeds that of ordinary shafts, fully meeting the material standards for industrial display equipment and commercial precision hardware. It solves quality problems such as deformation, torque attenuation, rusting, lagging, and load-bearing failure of large screen shafts from the root.

Integrated forging and thickening forming processThe main body, core, mounting base, and damping force bearing parts of the shaft are integrally forged and formed, with no splicing gaps or welding breakpoints. The overall structure has strong rigidity and excellent load-bearing and compressive performance. Eliminate welding eccentricity, stress cracking, and structural looseness issues. Long term heavy load support and repeated rotation do not deform, maintaining ultra-high concentricity at all times. The screen adjustment is smooth without eccentric shaking.

Damping surface hardening precision grinding processThe core heavy-duty damping friction surface adopts high-frequency quenching hardening+CNC micron level precision grinding treatment. The friction surface is flat and uniform, with precise and controllable fit clearance. The high torque output is linear and stable, without sudden tightening, loosening, dryness, jamming, or mechanical hard impact. The screen angle adjustment is completely silent and soft, with no metal friction or abnormal noise, enhancing the high-end texture of large screen devices.

Industrial grade multiple anti rust and anti-corrosion processesThe surface is treated with thickened electroplating and passivation sealing composite anti rust treatment, with a thick and firm coating, strong adhesion, and less likely to peel off. It can effectively isolate industrial dust, humid water vapor, air oxidation, and daily dust erosion, prevent rusting, blackening, jamming, and rotation failure of the shaft, and is resistant to aging, friction, and moisture. It is suitable for long-term stable use in multiple environments such as workshops, offices, and commercial sites.

3、 Core performance guarantee: salt spray test+10000 times heavy load fatigue test

Our factory's high torque damping shaft for monitors is strictly produced according to the hardware accessory standards for industrial display equipment. Full batch sampling testing and performance retesting are carried out to ensure the long-term stable operation of large screen equipment with strict industrial level testing standards, greatly reducing the after-sales failure rate.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate complex working conditions such as industrial humidity, dust corrosion, temperature difference oxidation, and long-term exposed use. After testing, the shaft has no rust spots, no oxidation or whitening, no coating peeling off, and no shaft jamming. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, completely solving the problems of long-term use of large screen shafts such as rusting, lagging, unsmooth rotation, aging appearance, and failure.

Ten thousand heavy load fatigue testsAfter tens of thousands of 360 ° full range rotations, multi angle heavy-duty flips, and hover self-locking cycle tests, the shaft structure has no deformation, no concentricity offset, extremely low torque attenuation, and stable load-bearing performance. Long term high-frequency angle adjustment, heavy-duty static placement without loosening, falling, abnormal noise, and damping failure, continuously ensuring the stability and accuracy of the large screen, and adapting to the long-term operation needs of industrial equipment.

Overload anti shake positioning testHigh concentricity precision axis core design, no eccentric shaking under heavy load, effectively resisting equipment vibration and external touch, eliminating screen shaking and viewing angle deviation, ensuring display device control and observation accuracy.

Silent long-term stability testPrecise gap ratio design, silent and noise free throughout the entire process, suitable for various quiet scenarios such as office, laboratory, industrial workshop, commercial display, etc. The damping performance is long-lasting and stable, greatly extending the service life of the entire display equipment.

4、 Product adaptation range

This high torque 360 ° arbitrary stop damping shaft is widely compatible with various large screen display devices:LCD display screen, desktop computer display screen, industrial control touch screen, industrial all-in-one machine, commercial advertising display screen, desktop lifting display bracket, medical testing display screen, equipment control flip screenWait for overloaded flipping and rotating display devices.

5、 Manufacturer Introduction: Customized Manufacturer of Industrial Large Screen Damping Shaft Source

Our factory specializes in research and development, as well as productionLCD display with high torque damping hinge, 360 ° arbitrary stop large screen pivotAs the source hardware manufacturer, we have been deeply involved in the fields of industrial display, commercial digital, and precision damping hardware for industrial control equipment for many years. We focus on the research and mass production of heavy-duty and high load bearing shafts, and are well versed in the core technical requirements of high load bearing, anti falling, high stability, anti vibration, rust prevention, and durability for large screen equipment. The factory has independent mold research and development, precision CNC machining, industrial grade comprehensive testing, large-scale and fast delivery full chain production system, direct supply from the source without intermediary premium, controllable quality, stable delivery time, and outstanding cost-effectiveness.

We continuously iterate our technology to address industry pain points such as insufficient torque, easy falling, rapid damping attenuation, poor seismic resistance, easy rusting, and rotation stuttering in the market for large screen shafts. We can customize shaft specifications, installation hole positions, damping torque, and rotation structures one-on-one according to customer screen size, equipment weight, installation space, torque feel, and wiring requirements, and quickly respond to customer needs for new product development, equipment upgrades, private mold customization, and large-scale production support.

The factory implements a strict closed-loop quality control system, from raw material screening, integrated molding processing, hardening and precision grinding treatment, precise calibration of heavy-duty damping, to salt spray anti-corrosion testing, 10000 load fatigue testing, and full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, load-bearing stability, rotational smoothness, torque uniformity, and anti-corrosion performance. The batch quality is standardized and standardized, fully meeting the standards for industrial and commercial high-end display equipment production.

The one-stop service system is complete, supporting free sample installation, small batch trial orders, and large-scale urgent production scheduling. We provide pre-sales working condition selection matching, structural scheme optimization, full process follow-up during sales and production, and one-stop after-sales installation technical guidance. We provide high load-bearing, high-precision, and long-life damping shaft overall matching solutions for major display equipment, industrial control electronics, and medical equipment manufacturers.

if neededContact: Manager Guo 17375546868
