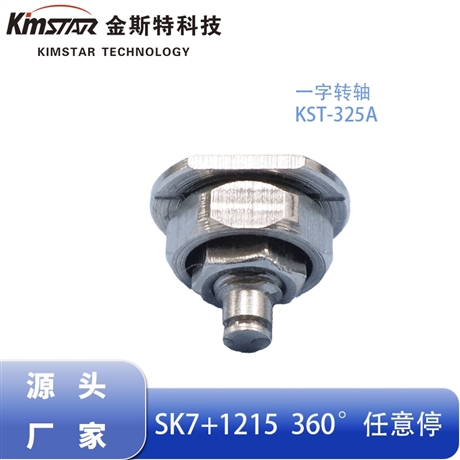

Display damping shaft flat bracket micro straight damping shaft hardware damper source manufacturer

Description :

1、 Product Design Proposal: Monitor& Exclusive micro single axis structure for flat bracket

The monitor and tablet stand belong to ultra-thin precision display accessories, and the core requirements for the pivot shaft areMicro sized, space saving, stable load-bearing, can stop and fall freely, precise angle adjustment, silent and noiselessOur factory abandons the traditional bulky and irregular shaft structure and adopts a dedicated micro straight through damping design. The structure is minimalist and highly adaptable, balancing lightweight assembly with stable load-bearing capacity, fully meeting the mass production assembly standards for display devices.

Micro ultra-thin single axis compact designAdopting an integrated straight through single axis design without any unnecessary protruding structures, the overall volume is miniaturized and the thickness is lightweight, specially designed for narrow side brackets of displays and ultra-thin brackets of tablets with small cavity volumes. It can achieve embedded invisible installation without top shell, bulging, or damaging the appearance of the device, perfectly adapting to the minimalist display bracket structure design. Compatible with plastic, aluminum alloy, and metal shell materials, suitable for rapid assembly on automated assembly lines, easy to assemble, and high yield rate.

0-360 ° stepless arbitrary stop precise locking structureSupports 360 ° full range free rotation, multi angle pitch, flip, and angle adjustment, with no jamming, jerking, or angle restrictions throughout the entire process. Built in multi-layer precision damping friction components, achieving seamless self-locking throughout the entire process, stopping immediately upon release, and precise fixation at any angle, without rebound, falling, or shaking. Effectively solves the problems of monitor static lowering, tablet stand weight deviation, and touch operation screen shaking, with precise multi angle adjustment, suitable for the needs of office, study, design, and movie viewing full scene angle adjustment.

Light medium load adaptive anti shake structureDamping torque can be accurately adjusted, suitable for dual load-bearing conditions of small-sized flat plates under light load and large-sized flat plates/displays under medium load. The damping force is linear and uniform, and the support stability is strong. It can effectively resist slight vibrations during device operation, desktop touch shaking, and long-term static pressure, prevent screen angle deviation and bracket loosening and displacement, provide stable static hovering, and smooth dynamic adjustment.

Pre press locking anti fatigue and anti attenuation structureUpgrade the precision preloading locking process, optimize the internal clearance ratio, ensure tight and even damping engagement, and effectively solve problems such as torque slippage, damping attenuation, dryness and abnormal noise caused by long-term high-frequency angle adjustment and rotation storage. After tens of thousands of uses, the torque is stable and the feel is uniform. Based on the equipment size, screen load capacity, installation space, and feel requirements, a certain pair of shaft specifications and damping parameters can be customized to adapt to new private mold research and development, old equipment redesign, and large-scale production matching.

2、 Material and process: Precision, high-strength material, compact, wear-resistant, stable and durable

For long-term indoor office use of monitors and tablet holders, dust accumulation, humid and oxidized air, and frequent angle adjustment and load-bearing conditions, this mini one letter damping shaft is carefully selectedHigh toughness precision industrial carbon steel materialThe material is dense and pure, with uniform hardness and excellent toughness, ensuring ultra-high structural strength under the premise of micro small volume. It has outstanding resistance to deformation, wear, fatigue, and oxidation, fully meeting the environmental protection material standards of 3C digital and display devices. It solves the common quality problems of micro shafts such as deformation, rusting, damping failure, jamming noise, and insufficient load-bearing from the root.

Integrated precision car forming processIntegrated CNC precision machining of shaft body, damping friction surface, and installation positioning position, without splicing gaps or welding breakpoints, with strong overall structural rigidity and extremely high concentricity. Eliminate the defects of eccentricity, loosening under stress, cracking and deformation of ordinary welding shafts, and maintain precise and smooth adjustment feel through long-term repeated rotation, angle adjustment and load-bearing without shaking or deformation.

Micro scale hardening and precision grinding process for damping surfaceThe core damping friction working surface adopts high-frequency quenching hardening+micrometer level precision grinding treatment, with smooth and delicate friction surface, precise and controllable fit clearance, and linear and uniform damping torque output throughout the process, without sudden tightening, loosening, dryness, jamming, or mechanical hard impact. The device's angle adjustment is completely silent and soft, with no metal friction or abnormal noise, greatly enhancing the high-end texture of the monitor and tablet stand.

Digital grade multiple anti-corrosion and anti rust processesThe surface is treated with thickened precision electroplating and passivation sealing composite anti rust treatment, with a thick and dense coating, strong adhesion, and less likely to peel off. It can effectively isolate moisture, air dust, and hand sweat corrosion, prevent micro shafts from blackening, rusting, jamming, and rotating failure. It is resistant to moisture, aging, and frequent friction, and has stable long-term performance and a new appearance.

3、 Performance testing: salt spray test+10000 fatigue tests, industrial grade strict quality control

Our factory specializes in producing miniature damping shafts for monitors and tablet stands, strictly adhering to the quality standards of high-end 3C digital and precision display accessories. We conduct full batch sampling and testing, as well as multiple performance retests, to ensure long-term and stable use of equipment with strict industrial testing standards, significantly reducing post sales failure rates.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate complex working conditions such as office humidity, dust accumulation, temperature difference oxidation, and daily hand contact corrosion. After testing, the shaft has no rust spots, oxidation white spots, coating peeling, or axis jamming. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, completely solving the after-sales problems of long-term use of the display bracket, such as shaft rusting, lagging, unsmooth rotation, damping failure, and appearance aging.

Ten thousand high-frequency angle adjustment fatigue testsAfter tens of thousands of 360 ° rotations, multi angle pitch adjustments, and hover self-locking cyclic fatigue tests, the shaft structure has no deformation, no concentricity offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency use ensures no looseness, no falling, no abnormal noise, and no damping failure, continuously guaranteeing stable angles and accurate viewing angles of the monitor and tablet bracket, effectively extending the service life of the entire equipment.

Silent and anti shake stability testHigh concentricity micro axis core design, rotation without eccentric shaking, effectively resisting slight device vibration and external touch shaking, eliminating screen image deviation and viewing angle shaking; The entire process is silent and noise free, suitable for various quiet usage scenarios such as office, study, design studio, and home leisure.

4、 Product adaptation range

This miniature one character damping shaft has a wide range of adaptability and is specially customized for display devices. The core adaptation is:Portable tablet stand, desktop tablet lifting stand, lightweight monitor rotating base, small industrial control monitor stand, computer secondary screen stand, learning machine display stand, various micro flip rotating display digital accessoriesWaiting for equipment.

5、 Manufacturer introduction: Manufacturer of damping shaft source for display equipment

Our factory specializes in research and development, as well as productionDisplay damping shaft, flat bracket micro straight damping shaftAs a precision hardware manufacturer at the source, we have been deeply involved in the field of 3C digital and display equipment damping accessories for many years. We specialize in the research and mass production of miniaturized, high-precision, silent, stable hovering, and long-life linear damping shafts. We have a deep understanding of the core technical requirements for ultra-thin assembly, precise angle setting, anti fall and anti shake, moisture-proof and anti rust, and high-frequency durability of displays and tablet supports. The factory has independent mold research and development, CNC precision machining, comprehensive performance testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

In response to industry pain points such as uneven torque, insufficient load-bearing capacity, easy loosening and falling, jamming and abnormal noise, rusting and aging, rapid damping attenuation, and large volume of the top shell in the market, the iterative process can be continuously developed. Based on screen size, bracket thickness, installation hole spacing, load-bearing size, and damping feel requirements, the diameter, length, torque parameters, and installation structure of the shaft body can be customized one-to-one to quickly respond to customer new product development, product modification, private mold customization, and large-scale production matching needs.

The factory implements a strict closed-loop quality control system, from raw material screening, integrated precision molding, hardening and grinding treatment, precise damping calibration, to salt spray anti-corrosion testing, ten thousand fatigue testing, and full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, angle adjustment smoothness, torque stability, anti shake performance, and anti-corrosion performance. The batch quality is standardized and fully meets the standards for high-end display digital equipment production.

The one-stop service system is complete, supporting free sample installation, small batch customization, and large-scale urgent production scheduling. We provide pre-sales equipment selection matching, structural scheme optimization, full process follow-up during sales and production, and after-sales installation technical guidance. We provide high-precision, ultra quiet, and long-life micro damping shaft overall matching solutions for major digital accessories, display equipment, and industrial and trade brand manufacturers.

if neededContact: Manager Guo 17375546868
