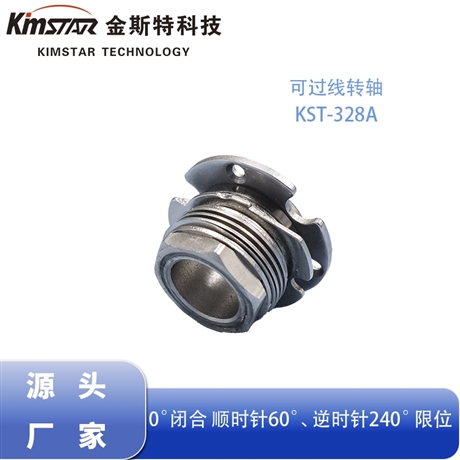

The camera knob can be wired in the middle of the shaft and can be stopped at will, with adjustable damping force and hardware dampers from the manufacturer

Description :

1、 Product design scheme: Camera specific wire adjustable damping structure

Intelligent cameras and pan tilt lenses have extremely high requirements for the rotation axis, which not only needs to meet the flexible adjustment of multiple angles, stable and anti shake of the lens, but also solves the problems of messy wiring, grinding and breakage, and poor adaptability due to different weights. Our factory abandons the traditional solid fixed damping shaft structure and exclusively optimizes the * * hollow wire passing+knob adjustable damping * * exclusive design, perfectly adapting to the structural assembly and usage needs of various small camera equipment, and suitable for mass production of civilian, intelligent, and security multi category cameras.

Mid hollow cable protection design (core advantage)Adopting an axis through hollow structure, the inner wall is finely ground at the micrometer level, without burrs, sharp angles, or scratches. The camera signal line and power line can directly pass through the hidden wiring inside the shaft core, completely eliminating the problems of messy external wiring, tape peeling, repeated rotation and pulling, broken wires, exposed aging and damage of the circuit. Effectively protect precision circuits, enhance the overall appearance and service life of the camera, and adapt to high-end integrated lens designs without exposed circuits.

Adjustable knob resistance structureEquipped with an external knob to fine tune the damping structure, the damping tightness can be freely adjusted according to the weight of the camera lens and the weight of the gimbal. Easy to adapt to lightweight small live streaming cameras and medium to heavy-duty monitoring pan tilt zoom lenses, solving the common problems of excessive torque and difficult angle adjustment for ordinary shafts, as well as lens falling due to insufficient torque. The torque adjustment is precise, the locking is stable, and it can meet the weight requirements of different types of camera equipment, making it highly versatile.

360 ° infinite stop and anti shake structureSupports 360 ° infinite horizontal rotation and multi angle flipping and angle adjustment for up and down pitch, with no jamming, jerking, or angle restrictions throughout the entire process. Built in multi-layer precision stacked damping friction components achieve stepless self-locking, stop immediately upon release, and precise locking at any angle, without rebound, shaking, or falling. Effectively eliminate camera shake, angle deviation, and static head down issues during shooting. Whether manually adjusting the angle or experiencing equipment vibration during operation, the lens angle remains stable and accurate, ensuring stable and clear shooting images.

Micro compact anti attenuation structureThe overall structure is concise and compact, designed specifically for the narrow internal cavity of the camera. It is embedded and invisible without a top shell, does not occupy equipment space, and does not damage the appearance structure of the lens. Upgraded pre pressure locking technology ensures even and stable damping engagement, and long-term high-frequency rotation and repeated angle adjustment will not cause slipping, damping attenuation, dryness or abnormal noise. We can customize the parameters of the shaft body according to the customer's equipment size, wiring specifications, installation hole spacing, and hand feel requirements, and adapt to new product private mold research and development, old model modification, and large-scale production matching.

2、 Material and process: High strength and precision materials, wear-resistant, rust proof, and stable rotation

For complex working conditions such as indoor office work, live streaming scenes, outdoor security, humidity and dust, frequent rotation and angle adjustment, and long-term static work with cameras, this wire passing adjustable damping shaft is selectedHigh toughness precision industrial carbon steel materialThe material is dense and uniform, with moderate hardness, excellent deformation resistance, wear resistance, fatigue resistance, and oxidation resistance. It fully meets the environmental protection material standards for intelligent digital and security equipment, and solves quality problems such as deformation, rusting, damping failure, jamming noise, and worn parts of micro shafts from the root.

Integrated precision car forming processHollow shaft core, damping friction surface, and installation positioning integrated CNC precision machining, without splicing gaps or welding weak points, with strong overall structural rigidity and ultra-high concentricity. Eliminate welding shaft eccentricity, force looseness, cracking and deformation defects, and maintain precise and smooth adjustment effects through long-term 360 ° rotation and pitch angle adjustment without deformation or shaking.

Micro scale hardening and precision grinding process for damping surfaceThe core damping friction working surface adopts high-frequency quenching hardening+micrometer level precision grinding treatment, with a smooth and delicate friction surface, precise and controllable fit clearance, linear and uniform damping output, smooth knob adjustment without jamming or mechanical hard impact. The lens angle adjustment is completely silent and soft, without any metal friction or abnormal noise, greatly enhancing the high-end texture of the intelligent camera.

Industrial grade moisture-proof and anti-corrosion processThe surface is treated with thickened precision electroplating and passivation sealing composite anti rust treatment, with a thick and firm coating, strong adhesion, and less likely to peel off. It can effectively isolate moisture, air dust, hand sweat, and slight outdoor corrosion, prevent blackening, rusting, jamming, and rotation failure of the shaft. It is resistant to moisture, aging, and frequent friction, and is suitable for long-term stable use in multiple indoor and outdoor scenarios.

3、 Performance testing: salt spray test+10000 fatigue tests, strict quality control

Our factory's dedicated hollow wire damping shaft for cameras is produced strictly in accordance with the quality standards of intelligent digital and security precision accessories. The entire batch is sampled and tested, and multiple performance tests are conducted to ensure the long-term stable operation of the equipment with strict industrial testing standards, greatly reducing the after-sales failure rate of end products.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate complex working conditions such as outdoor humidity, dust accumulation, temperature difference oxidation, and daily hand contact corrosion. After testing, there are no rust spots, oxidation white spots, coating peeling, or hollow shaft core jamming on the shaft. It has excellent moisture resistance, rust prevention, oxidation resistance, and corrosion resistance, completely solving after-sales problems such as long-term use of the camera shaft, rusting, lagging, unsmooth rotation, line wear, and appearance aging.

Fatigue test for angle adjustment with ten thousand rotationsAfter tens of thousands of 360 ° global rotations, multi angle pitch adjustments, and hover self-locking cyclic fatigue tests, the shaft structure has no deformation, no concentricity offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency use ensures no looseness, no falling, no abnormal noise, and no loss of damping, continuously guaranteeing stable lens angles and accurate shooting, effectively extending the service life of the entire camera equipment.

Silent and anti shake+wire protection performance testHigh concentricity hollow core design, rotation without eccentric shaking, effectively resisting equipment working vibration, external touch shaking, and preventing image shaking and deviation; Smooth and zero wear inner wall, fully protecting internal precision circuits, adjusting angles and rotating silently without noise, suitable for various usage scenarios such as live streaming, office, security monitoring, etc.

4、 Product adaptation range

This adjustable damping cable shaft is specifically designed to adapt to various intelligent camera devicesComputer external live streaming camera, beauty camera lens, intelligent pan tilt camera, home monitoring camera, small security camera equipment, facial recognition lens, intelligent device flip camera moduleCamera accessories that are rotatable and adjustable in angle.

5、 Manufacturer introduction: Camera wire damping shaft source manufacturer

Our factory specializes in research and development, as well as productionCamera hollow cable shaft, adjustable damping lens knob damperAs a precision hardware manufacturer at the source, we have been deeply involved in the fields of intelligent digital and security camera accessories for many years. We focus on the research and mass production of heavy-duty hidden wires, adjustable torque, silent stop, and micro precision damping shafts. We are well versed in the core working requirements of intelligent camera anti wear wires, anti fall, anti shake and silent, moisture-proof and anti rust, and precise angle adjustment. The factory has independent mold research and development, CNC precision machining, comprehensive performance testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

We continuously iterate our technology to address industry pain points such as camera shaft damping fixation, poor adaptability, wire breakage due to grinding, easy loosening and falling, rusting and abnormal noise, and fast damping attenuation in the market. Based on lens weight, wire thickness, equipment cavity size, installation hole position, and damping feel, we can customize the wire diameter, shaft specifications, torque parameters, and limit angles in a one-to-one manner to quickly respond to customer needs for new product development, product upgrades, private mold customization, and large-scale production support.

The factory implements a strict closed-loop quality control system, from raw material screening, integrated precision molding, hardening and grinding treatment, precise damping calibration, to salt spray anti-corrosion testing, 10000 fatigue testing, and full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, rotational smoothness, torque stability, wire protection effect, and anti-corrosion performance, and batch quality is standardized to fully meet the mass production supporting standards of intelligent digital and security camera equipment.

The one-stop service system is complete, supporting free sample installation, small batch customization, and large-scale urgent production scheduling. We provide pre-sales equipment selection matching, structural scheme optimization, full process follow-up during sales and production, and after-sales installation technical guidance. We provide high-precision, ultra quiet, and long-life camera damping shaft overall matching solutions for major intelligent digital, security equipment, and optoelectronic manufacturers.

if neededContact: Manager Guo 17375546868
