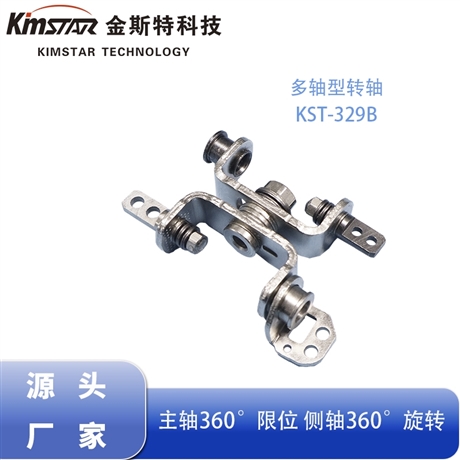

Supplier of True Color LED Rotating Shaft Multi angle Rotating Field Light Damper Source Manufacturer

Description :

1、 Product Design Proposal: Exclusive Damping Structure for True Color LED Venue Lights

LED field lights and outdoor fill lights are different from ordinary indoor lighting fixtures, requiring frequent multi angle switching of illumination directions, long-term outdoor static use, and exposure to slight wind shaking, which affects the rotation axisLoad bearing stability, multi angle adjustability, outdoor weather resistance, positioning accuracyThe requirements are extremely high. Our factory has abandoned the traditional lightweight shaft structure of indoor lighting fixtures and upgraded the heavy-duty damping design for outdoor venue lights, perfectly solving problems such as limited angle adjustment, unstable hovering, and easy aging and failure of lighting fixtures.

Multi angle global rotation with infinite stopping designSupports 0-360 ° free rotation and large angle up and down tilt adjustment, with no jamming points, no angle limit, and no travel obstruction, which can meet the needs of large-scale scanning, fixed-point supplementary lighting, and multi angle projection lighting for venue lights. Built in multi-layer thickened precision damping friction components achieve seamless self-locking hovering throughout the entire process, locking at any angle without rebound, falling, or shaking, completely eliminating the problems of lamp head displacement and illumination deviation caused by outdoor breeze and equipment vibration. The lighting angle is precise and controllable.

Heavy duty anti-skid damping stable structureIn response to the heavy weight of LED field lamp heads and long-term outdoor load-bearing conditions, the damping preloading locking structure is optimized. The damping bite force is sufficient and uniform, and the torque can be accurately matched according to the specifications of the lamps. Effectively solves common problems such as insufficient torque of ordinary shafts, long-term load-bearing slippage, and lamp heads falling down. It remains stable even after prolonged standing and frequent rotation for angle adjustment, and is suitable for heavy-duty use scenarios of high-power floor lamps and outdoor engineering lighting fixtures.

Outdoor adaptation compact structureThe overall structure is streamlined and well-organized, with strong assembly compatibility. It is specially optimized for the aluminum alloy shell and plastic lamp body structure of LED lamps, and can be embedded and installed invisibly without top shell or damaging the appearance of the lamp. It is suitable for batch assembly on automated assembly lines. The structure is designed to prevent dust and water accumulation, with even and tight gaps, which can effectively block outdoor dust and rainwater residue from entering the interior of the shaft, reducing lagging, rusting, and jamming faults structurally. It is suitable for complex scenarios such as outdoor venues, stages, and outdoor projects.

Anti aging damping anti attenuation structure: Upgrade the high temperature resistant, anti-aging damping formula, be free from outdoor sun exposure and temperature difference changes, and avoid the problems of high temperature softening, low temperature stiffness, and rapid damping attenuation of ordinary rotating shafts. After tens of thousands of high-frequency rotations and angle adjustments, the torque is stable, the hand feel is uniform, and there is no dry or abnormal noise. It can be customized according to the size of the customer's lighting fixtures, the load-bearing capacity of the lamp head, the installation hole distance, and the lighting adjustment requirements, with a pair of fixed shaft parameters and rotation angles, to adapt to the research and development of new lighting fixtures, the iteration of old lighting fixtures, and large-scale production matching.

2、 Material and process: High strength and wear-resistant material, outdoor rust prevention, long-term weather resistance

In response to the harsh working conditions of long-term outdoor use, exposure to wind, sun, moisture, rain, dust accumulation, and frequent rotation and load-bearing of LED true color venue lights, this lighting fixture's damping shaft is carefully selectedHigh toughness industrial thick carbon steel materialThe material is dense and sturdy, with high hardness, deformation resistance, wear resistance, UV resistance, and excellent fatigue resistance. It far exceeds the materials used for ordinary indoor lamp shafts and fully meets the environmental protection and durability standards for outdoor engineering lighting and security lamps. It solves quality problems such as rusting, deformation, damping failure, lagging noise, aging and brittleness of outdoor shafts from the root.

Integrated forging and forming processThe main body of the shaft, the shaft core, the damping force surface, and the installation base are integrally forged and formed, with no splicing gaps or welding breakpoints. The overall structure has strong rigidity and excellent load-bearing and compressive performance. Eliminate welding eccentricity, stress cracking, and structural looseness defects. Long term outdoor heavy-duty rotation and alternating use with temperature differences will not deform or shake, and always maintain ultra-high concentricity. The lamp angle adjustment will be smooth and uniform.

Damping surface hardening precision grinding processThe core damping friction working surface adopts high-frequency quenching hardening+CNC micron level precision grinding treatment, with smooth and delicate friction surface, precise and controllable fit clearance, linear and stable damping output, and no sudden tightening or loosening, mechanical hard impact. Multi angle adjustment of the lighting fixtures ensures smooth and silent operation throughout the entire process, without any metal friction or abnormal noise, ensuring the high-quality use of high-end true color LED lighting fixtures.

Outdoor grade multiple anti-corrosion and weather resistant processesAdopting a triple treatment process of thickened electroplating, passivation sealing, and dust and rust prevention, the coating is thick and firm, with strong adhesion and is not easily peeled off. It can effectively resist outdoor rainwater moisture, acid-base fog, UV oxidation, dust corrosion, prevent the shaft from turning black, rusting, jamming and failure, damping aging, and has excellent weather resistance, moisture resistance, and oxidation resistance, suitable for stable use in complex outdoor environments throughout the year.

3、 Core performance testing: salt spray test+10000 load fatigue test

Our factory's LED field light damping shaft is strictly produced according to the quality standards of outdoor engineering lighting accessories. The entire batch is sampled for rigorous performance testing, and industrial level testing standards are used to ensure long-term stable outdoor operation of the lamps, greatly reducing the manufacturer's after-sales repair rate.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate harsh outdoor conditions such as wet rain, acid-base corrosion, dust accumulation, and temperature oxidation. After testing, there were no rust spots, oxidation or whitening on the shaft, no peeling of the coating, and no jamming of the shaft. The anti-corrosion and rust prevention performance met the standard, completely solving the after-sales problems of rusting, lagging, unsmooth rotation, aging appearance, and failure of outdoor lighting shafts.

Ten thousand times heavy-duty rotation fatigue testAfter tens of thousands of multi angle rotations, heavy-duty hovering, and repeated angle adjustment fatigue tests, the shaft structure has no deformation, concentricity has no offset, torque attenuation is extremely low, and positioning is precise and stable. Long term high-frequency adjustment, outdoor static load-bearing without looseness, no falling, no abnormal noise, and damping without failure, effectively extend the service life of the entire LED field light.

Outdoor weather resistance and noise reduction testAfter undergoing high and low temperature cycling and exposure aging simulation tests, the damping performance has not deteriorated and the structure has not deformed, making it suitable for outdoor use with temperature differences in all seasons; High concentricity axis core design, with no eccentric shaking during rotation and complete silence without noise, without affecting the experience of stage and venue use.

4、 Product adaptation range

This outdoor specific damping shaft is widely compatible with various LED lighting equipment, focusing on venue lighting and outdoor lighting fixtures:True color LED venue lights, stage fill lights, outdoor projection lights, floor standing engineering lighting fixtures, rotatable ambient lights, outdoor lighting fixtures, mobile venue lighting fixtures, multi angle adjustable intelligent LED fixturesVarious types of rotatable adjustable angle LED lighting equipment.

5、 Manufacturer introduction: Customized manufacturer of damping shaft source for LED venue lights

Our factory is focused onLED true color lighting fixtures, outdoor venue lighting damping shaftsWe are a precision hardware manufacturer specializing in research and development, with years of experience in the field of outdoor lighting and engineering lighting damping accessories. We focus on the research and mass production of heavy-duty anti fall, multi angle rotation, outdoor anti-corrosion and weather resistance, and long-life lighting dampers. We have a deep understanding of the core technical requirements for outdoor LED field lights, including wind resistance, anti shake, rust and sun resistance, precise hovering, and high-frequency adjustment. The factory has independent mold research and development, precision CNC machining, outdoor level performance testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without intermediaries, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

We continuously iterate our technology to address industry pain points such as outdoor rusting, rapid damping attenuation, lamp head dropping, angle adjustment lag, severe abnormal noise, and poor weather resistance of lighting fixtures. We can customize the shaft size, torque parameters, rotation angle, and installation hole position based on the power of the lighting fixture, lamp head load-bearing capacity, installation structure, angle adjustment requirements, and outdoor usage conditions. This enables us to quickly respond to the needs of lighting manufacturers for new product development, old model upgrades, private mold customization, and large-scale production support.

The factory implements a strict closed-loop quality control system, from raw material screening, integrated molding processing, hardening and precision grinding treatment, precise damping calibration, to salt spray anti-corrosion testing, outdoor weather resistance testing, 10000 load fatigue testing, and full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, load-bearing stability, rotational smoothness, anti-corrosion and weather resistance, and batch quality is standardized to fully meet the standards for outdoor engineering lighting and high-end LED lighting production.

The one-stop service system is complete, supporting free sample installation, small batch customization, and large-scale urgent production scheduling. We provide pre-sales lighting condition selection and structural scheme optimization, follow up on the entire production process during sales, and provide one-stop after-sales installation technical guidance. We provide high weather resistance, long service life, and high stability LED lighting damping shaft overall matching solutions for major lighting projects, lighting brands, and optoelectronic manufacturers.

if neededContact: Manager Guo 17375546868
