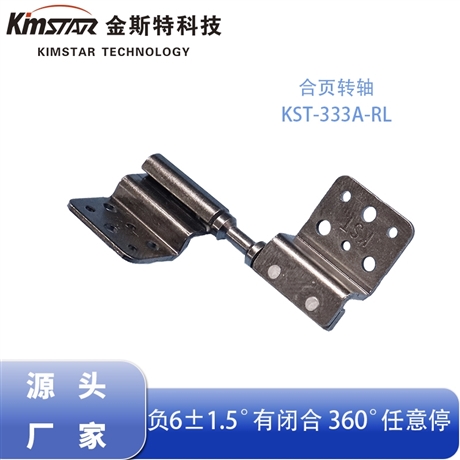

Notebook hinge hinge folding Bluetooth keyboard folding shaft 360 degree rotation damper source manufacturer

Description :

1、 Product Design Proposal: Notebook& Folding keyboard with exclusive 360 ° folding damping structure

Laptops and foldable Bluetooth keyboards are characterized by their lightweight and portable design, minimalist appearance, high-frequency opening and closing flip, and the ability to rotate shaftsVolume accuracy, rotational smoothness, hovering stability, body fit, fatigue resistance performanceThe requirements are extremely high. Traditional ordinary rotating shafts have limited angles, rigid rotation, are prone to dust accumulation and looseness, and cannot achieve full range flipping. Long term opening and closing can lead to problems such as screen sagging, gap displacement, and loose hand feel. Our factory has optimized the exclusive 360 ° folding damping structure to perfectly adapt to the precision assembly standards of lightweight digital devices, balancing appearance and long-term stability.

360 ° global infinite rotation designBreaking through the traditional limitation of pivot opening and closing angles, it supports horizontal 360 ° all-round free rotation+0-180 ° pitch flipping opening and closing, with no angle blind spots, no jamming or jerking, and no travel obstruction. Perfectly adapted to laptop full screen flipping, 2-in-1 tablet multi form switching, Bluetooth keyboard folding and storage, multi angle flat use scenarios, meeting diverse usage needs such as office, portable storage, multi angle movie watching, and hand drawing operations.

Stepless arbitrary stop anti fall and anti shake structureBuilt in multi-layer precision stacked damping friction components and pre pressure locking structure, achieving seamless self-locking throughout the entire process, stopping immediately upon release, and precise locking at any angle. No rebound, no falling, no shaking, completely solves the common problems of notebook screens being left idle for a long time, such as bowing, opening and closing, touch deviation, unstable support of folding keyboards, and loose flip covers. The screen opening and closing gaps are uniform and uniform, and the overall texture of the machine is high-end.

Ultra thin micro adaptation structureAdopting a compact integrated shaft design, it has a small volume and regular structure, specially tailored for laptops with narrow borders, ultra-thin bodies, and lightweight Bluetooth keyboards. It can be embedded and installed invisibly, conforms to the streamline of the body, does not have a top shell, does not bend edges, and does not damage the appearance of the whole machine. It is compatible with plastic, aluminum alloy, and metal body shells, and is suitable for high-speed assembly on automated assembly lines. The assembly yield is high and the adaptability is extremely strong.

Accurate and adjustable torque with anti attenuation designSupports precise calibration and fine-tuning of damping torque, and can flexibly match damping force according to the size of the laptop screen, the weight of the screen body, and the weight of the keyboard. Effectively solves the problems of stiff opening and closing due to excessive torque of ordinary shafts, and weak support due to insufficient torque, and is suitable for all types of devices including ultrabooks, business laptops, and folding keyboards. Upgraded sealing and anti fatigue structure to isolate dust and water vapor intrusion. Despite tens of thousands of opening and closing rotations, the torque remains stable and the hand feel is consistent, without slipping, loosening, or abnormal noise.

Design of anti deviation seam stable structureHigh concentricity precision ratio of the shaft body, no eccentric shaking during opening and closing rotation, effectively avoiding problems such as uneven gap size, screen offset, and flip tilt caused by long-term use, ensuring the assembly accuracy and appearance consistency of the whole machine, and adapting to standardized mass production of brand digital equipment.

2、 Material and process: Precision, high-strength, lightweight, wear-resistant, rust proof, and anti-aging materials

For the complex working conditions of laptops, foldable Bluetooth keyboards, long-term portability, high-frequency opening and turning, indoor and outdoor multi scene use, dust accumulation, moisture oxidation, and hand sweat contact, this folding damping shaft is carefully selectedHigh toughness precision industrial carbon steel materialHigh end models can be optionally equipped with 304 stainless steel material. The material is dense and pure, with uniform hardness, excellent deformation resistance, wear resistance, fatigue resistance, and oxidation resistance. It meets the environmental testing standards of 3C digital and electronic products, and solves common quality problems such as rusting, deformation, rapid damping attenuation, opening and closing lag, abnormal noise loosening, and short service life of micro folding shafts from the root.

Integrated CNC precision machining processThe shaft body, damping friction surface, and installation positioning position are integrated and precision machined, with no splicing gaps or welding breakpoints. The overall structure is rigid and has high concentricity. Eliminate defects such as eccentricity, force looseness, opening and closing deformation, and gap deviation in ordinary welding shafts, and maintain a uniform and smooth opening and closing feel after tens of thousands of folding and rotating cycles for a long time without deformation or shaking.

Micro scale hardening and precision grinding process for damping surfaceThe core damping friction working surface adopts high-frequency quenching and hardening+micrometer level precision grinding treatment, with a smooth and delicate friction surface and precise controllable clearance between components. The damping torque output is linear and soft, without mechanical hard impact, sudden tightening and loosening, dryness and stuttering. The equipment is quiet and noiseless throughout the opening and closing, 360 ° rotation, greatly improving the high-end texture of laptops and folding keyboards.

Digital grade multiple anti-corrosion and anti rust processesThe surface is treated with thickened environmentally friendly electroplating and passivation sealing composite rust prevention, with a thick and uniform coating, strong adhesion, and less likely to peel off. It can effectively isolate moisture, air dust, and hand sweat corrosion, and prevent shaft from blackening, rusting, jamming, and rotation failure. It has excellent moisture-proof, rust proof, anti-aging, and abrasion resistance properties. It can be used easily for a long time, and can be opened and closed frequently with stable performance and new appearance.

3、 Core Performance Testing: Salt Spray Test+Ten Thousand Fatigue Tests Strict Quality Control

Our factory specializes in producing damping shafts for laptops and folding keyboards, strictly adhering to the quality standards of high-end 3C digital precision accessories. We conduct full batch sampling and multiple performance retests to control product quality with industrial grade rigorous testing standards, significantly reducing the after-sales repair rate of digital equipment manufacturers.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate daily humid environments, temperature difference oxidation, dust accumulation, hand sweat corrosion and other working conditions. After testing, there were no rust spots, oxidation white spots, coating peeling, or axis jamming on the rotating shaft. It has excellent moisture resistance, rust prevention, and corrosion resistance, completely solving the after-sales problems of long-term use of folding equipment rotating shafts such as rusting, lagging, unsmooth rotation, aging appearance, and damping failure.

Ten thousand cycles of opening and closing rotation fatigue testAfter tens of thousands of 360 ° full range rotations, repeated opening and closing folds, and multi angle hovering self-locking cyclic fatigue tests, the shaft structure has no deformation, no concentricity offset, extremely low torque attenuation, and constant positioning accuracy. Long term high-frequency opening and closing, storage and folding without loosening, falling, abnormal noise, and damping failure, effectively extending the service life of laptops and foldable Bluetooth keyboards.

Silent and anti shake accuracy testHigh concentricity micro axis design, with no eccentric shaking or impurity jamming during opening and closing rotation, effectively resisting slight device vibration and external touch shaking, ensuring stable screen and keyboard angles without deviation; The entire process is quiet and gentle, suitable for quiet use in all scenarios such as office, study, home, and portable outdoor use.

4、 Product adaptation range

This 360 ° folding damping hinge has a wide range of adaptability and is designed for lightweight and foldable digital devicesLightweight laptop, 2-in-1 flip tablet, foldable Bluetooth keyboard, portable foldable digital device, small flip smart terminal, multi angle rotating display accessoriesVarious precision digital products that require opening, folding, 360 ° rotation, and arbitrary hovering.

5、 Manufacturer introduction: Customized manufacturer of notebook folding hinge source

Our factory is focused onNotebook 360 ° rotating shaft, folding Bluetooth keyboard damping hinge, miniature digital folding damperWe are a precision hardware manufacturer specializing in research and development, production, and customization. We have been deeply involved in the field of 3C digital and portable folding equipment damping accessories for many years, specializing in micro precision, silent and smooth, anti-corrosion and durable, anti-aging and anti falling folding damping shafts. We have a deep understanding of the core technical requirements for lightweight assembly, high-frequency opening and closing, precise hovering, and long-term stability of laptops and folding keyboards. The factory has independent mold research and development, CNC precision machining, comprehensive performance testing, and a full chain production system for large-scale and rapid delivery. It provides direct supply from the source without any intermediary premium, with controllable quality, stable delivery time, and outstanding cost-effectiveness.

We continuously iterate our technology to address industry pain points such as 360 ° rotation lag, uneven damping, easy screen dropping, gap deviation, severe abnormal noise, rust and aging, and rapid torque attenuation of folding shafts on the market. We can customize the shaft specifications, torque parameters, rotation angles, and limit structures according to the thickness of the equipment body, screen size, weight, installation hole spacing, and opening and closing feel requirements, and quickly respond to the needs of digital manufacturers for new product development, old model upgrades, private mold customization, and large-scale production support.

The factory implements a strict closed-loop quality control system, from raw material screening, integrated precision molding, hardening and grinding treatment, precise damping calibration, to salt spray anti-corrosion testing, ten thousand times opening and closing fatigue testing, and full inspection of finished products. Each batch of products is strictly controlled in terms of dimensional accuracy, opening and closing smoothness, torsional stability, noise reduction effect, and anti-corrosion and wear resistance. The batch quality is standardized and fully meets the high-end 3C digital equipment mass production supporting standards.

The one-stop service system is complete, supporting free sample installation, small batch customization, and large-scale urgent production scheduling. We provide pre-sales equipment condition selection and structural scheme optimization, follow up on the entire production process during sales, and provide one-stop after-sales installation technical guidance. We provide high-precision, ultra quiet, and long-life folding damping shaft overall matching solutions for major digital brands, industrial and trade manufacturers, and intelligent equipment enterprises.

if neededContact: Manager Guo 17375546868
