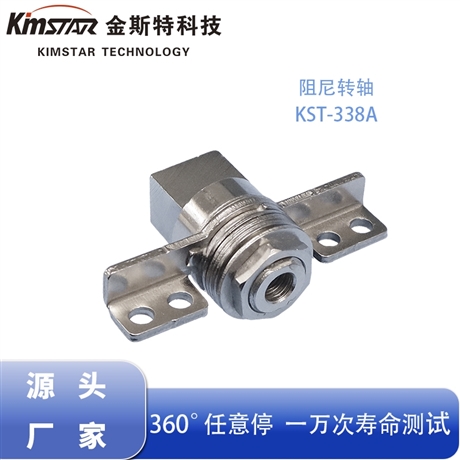

LED desk lamp damping shaft L-shaped lamp pole wire passing shaft stainless steel hinge damper Dongguan factory wholesale

Description :

1、 Product Design Proposal: LED Desk Lamp L-shaped Lamp Pole Exclusive Wire Damping Structure

The LED cantilever desk lamp and L-shaped folding lamp pole have a special structure. Traditional straight axis cannot fit the corner installation, easily squeezes the wire, occupies a large internal space, and ordinary hinges have no wire passing function and can only be externally wired, seriously affecting the appearance and service life of the lamp. Our factory conducts targeted research and developmentL-shaped right angle fitting+hollow axis passing lineExclusive damping structure, perfectly matching the corner installation, wire hiding, and angle adjustment needs of various L-shaped lamp posts, is a standard structure for high-end folding desk lamps.

L-shaped right angle integrated fitting designAdopting a 90 ° right angle L-shaped structure, specially tailored for the corner position of the lamp post of the desk lamp, it saves more than 40% of installation space compared to traditional straight axis, perfectly fitting the L-shaped bending assembly structure of the lamp. The double blade fitting installation design provides a larger contact area, more uniform force distribution, non eccentric rotation, and no warping of the shell, eliminating problems such as loose corners, displacement, and uneven gaps. It is suitable for embedded invisible installation of ultra-thin lamp posts, maximizing the preservation of the minimalist appearance of the lamp.

Axis hollow cable protection structure (core advantage)The axis core is reserved with standard wire through holes, and the inner wall is finely ground to a micron level without burrs or sharp angles. The power and control wires of the desk lamp can directly pass through the axis core with built-in wiring. Thoroughly solve the problems of traditional external wiring disorder, bending and pulling, wire breakage due to grinding, tape detachment, and exposed aging of the circuit, effectively protect precision wires, make the L-shaped folding table lamp corner winding more regular, enhance the overall texture of the machine, and reduce the failure rate of the lamp circuit structurally.

360 ° seamless stop, anti fall and anti shake structureSupport multi angle pitch dimming+360 ° smooth rotation adjustment, with no jamming, jerking, or mechanical hard impact throughout the entire process. Built in multi-layer precision damping friction components and preloading locking structure, achieving seamless self-locking throughout the entire process, stopping immediately upon release, and precise locking at any angle, without rebound, falling, or shaking. Thoroughly solve the common problems of lamp head lowering, light deviation, and touch displacement caused by long pole torque and self weight pulling of L-shaped long arm desk lamps. It can hover accurately from multiple angles and adapt to the dimming needs of learning, office, and reading scenarios.

Adjustable torque adaptation designSupports precise adjustment and calibration of damping torque, and can flexibly match the damping force according to the length of the lamp post, the weight of the lamp head, and the number of folding sections, suitable for all categories of mini desk lamps and long arm cantilever desk lamps. Effectively solving the problems of stiff torque and weak support of ordinary shafts, long-term high-frequency folding and angle adjustment still have a uniform hand feel, and damping does not slip or decay.

Anti jamming wire, dust-proof optimized structureThe L-shaped corner structure combined with a closed damping chamber can effectively block dust and debris from entering the interior of the shaft, avoiding jamming, abnormal noise, and jamming caused by dust accumulation; Smooth transition through the wire hole, the folding and rotating of the lamp does not compress or wear the wire, balancing structural stability and circuit protection.

2、 Material and process: All stainless steel material, rust resistant and wear-resistant, suitable for long-term use at home

In response to the long-term use of LED desk lamps in damp environments such as bedrooms, study rooms, and offices, frequent folding corners, sweat corrosion caused by hand contact, dust accumulation, and long-term static load-bearing conditions, this L-shaped wire passing damping shaft is fully equippedHigh quality 304 stainless steel materialProduction, different from ordinary carbon steel and zinc alloy shafts, has stronger resistance to rust, corrosion, and fatigue. The material is dense, strong, hard, not easily deformed, and wear-resistant, fully complying with the 3C environmental protection material standards for small household appliances. It solves quality problems such as rust, oxidation, looseness, and short service life of desk lamp shafts from the root.

Stainless steel integrated forging and forming processThe L-shaped body, wire core, and installation fixed position are forged and precision machined together, with no splicing gaps or welding breakpoints. The overall structure has strong rigidity, high concentricity, and uniform stress distribution. Eliminate defects such as eccentricity, cracking, looseness, and deformation of ordinary welding shafts. Long term tens of thousands of corner folding and dimming rotations will not deform or shake, with high assembly fit and no deviation in batch assembly.

Micro scale hardening and precision grinding process for damping surfaceThe core damping friction working surface adopts high-frequency hardening+CNC micro level precision grinding treatment, with a smooth and delicate friction surface, precise and controllable clearance between components, and linear and soft damping torque output throughout the entire process, without sudden tightening, loosening, dryness or jamming. The folding and angle adjustment of the desk lamp are completely silent and noiseless throughout the process, without any metal friction or abnormal noise, greatly improving the overall texture of high-end LED desk lamps.

Stainless steel natural passivation and anti-corrosion processAdopting stainless steel natural polishing+passivation sealing treatment, no need for electroplating coating, no peeling, no fading, and stronger corrosion resistance. It can effectively resist the corrosion of damp water vapor, hand sweat, and air dust at home. It does not turn black, rust, or get stuck after long-term use, and is resistant to aging and wear. It is suitable for high-frequency use of lamps all year round.

3、 Core Performance Testing: Salt Spray Test+Ten Thousand Fatigue Tests Strict Quality Control

Our Dongguan factory produces LED desk lamps with L-shaped threaded stainless steel shafts, strictly following the quality standards for precision accessories for small household appliances. We conduct full batch sampling and testing to control quality with industrial grade rigorous testing, ensuring long-term stable use of the lamps and significantly reducing the manufacturer's after-sales failure rate.

Industrial salt spray anti-corrosion testingThrough standardized neutral salt spray corrosion resistance testing, simulate complex working conditions such as home humidity, temperature difference oxidation, sweat corrosion, and dust accumulation. After testing, the stainless steel shaft has no rust spots, no oxidation white spots, no jamming or blockage, and no deformation or blockage in the wire holes. Its rust and corrosion resistance far exceeds that of ordinary carbon steel shafts, completely solving after-sales problems such as long-term rusting, unsmooth rotation, damping failure, and aging appearance of desk lamp shafts.

Ten thousand fold rotation fatigue testAfter tens of thousands of cycles of L-shaped corner folding, multi angle dimming, 360 ° rotation, and hover self-locking fatigue testing, the shaft structure has no deformation, no concentricity offset, and extremely low torque attenuation. Long term high-frequency folding storage, angle adjustment without looseness, no falling, no abnormal noise, long-lasting and stable damping, effectively extending the service life of the entire LED desk lamp.

Stability Test of Silent Wire ProtectionHigh concentricity stainless steel shaft core+smooth wire hole design, rotating without eccentric shaking, not squeezing the wire, effectively protecting the internal circuit of the lamp; Adjust the entire process to be silent and soft, without mechanical noise, suitable for quiet home, office, and study scenarios.

4、 Product adaptation range

This L-shaped stainless steel wire damping hinge is specifically designed to adapt to various types of corner folding lighting equipment:L-shaped pole LED eye protection table lamp, multi section cantilever folding table lamp, desktop office fill light, intelligent dimming folding lamp, internet famous corner folding ambient light, small LED flip lighting equipmentDesk lamp products that require corner adjustment, built-in wiring, and arbitrary hovering.

5、 Manufacturer Introduction: Dongguan Yuanyuan Factory is a professional manufacturer of L-shaped wire passing shaft for desk lamps

My factory isDongguan Local Source Precision Hardware FactoryWe specialize in the research and development, production, and wholesale of LED desk lamps with L-shaped wire passing damping shafts and stainless steel lamp damping hinges. We have been deeply involved in the damping accessories industry for lighting small appliances for many years, specializing in L-shaped corner structures, built-in wire passing, stainless steel anti-corrosion, and silent arbitrary stop lamp shafts. We have a deep understanding of the core production needs of folding table lamp corner assembly, hidden wire protection, anti fall mute, moisture-proof and rust proof. The factory has independent mold research and development, stainless steel precision machining, comprehensive performance testing, and a full chain production system for large-scale and rapid delivery. There is no middleman markup, and the quality is controllable, the delivery time is stable, and the cost-effectiveness is high. It supports bulk procurement and customized matching for lighting manufacturers across the country.

Our factory continuously optimizes the stainless steel production process and damping ratio to address industry pain points such as poor compatibility of L-shaped table lamp shafts, wire sticking and grinding, easy rusting, fast damping attenuation, lamp head falling, and abnormal noise jamming in the market. We can customize the shaft size, wire diameter, damping strength, and installation structure according to the thickness of the lamp post, wire specifications, lamp head load-bearing capacity, installation hole distance, and torque feel of customers, and quickly respond to the new product development, old model modification, private mold customization, and large-scale production needs of lighting manufacturers.

The factory implements a closed-loop quality control system throughout the entire process, from stainless steel raw material screening, integrated precision molding, damping precision calibration, passivation and anti-corrosion treatment, to salt spray anti-corrosion testing, 10000 fatigue testing, and full inspection of finished products. The size accuracy, rotation smoothness, torque stability, wire protection effect, and anti-corrosion performance of each batch of products are strictly controlled layer by layer, and the batch quality is standardized uniformly, fully complying with the supporting standards for mass production of small household appliances and LED lighting fixtures.

The factory supports free sample assembly, small batch testing, bulk spot wholesale, and urgent production delivery. We provide one-stop services including pre-sales structural selection, solution optimization, in sales production follow-up, and after-sales installation guidance. We provide high rust proof, ultra quiet, and long-life L-shaped table lamp damping shaft overall matching solutions for major lighting brands, small home appliance manufacturers, and industrial and trade enterprises.

if neededContact: Manager Guo 17375546868
