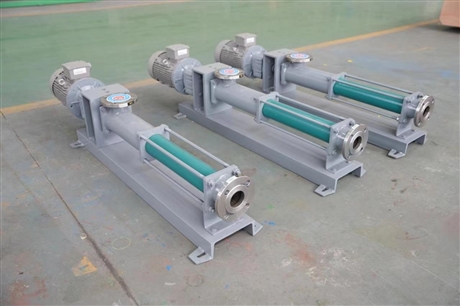

G-type sanitary grade wear-resistant and non clogging stainless steel screw pump

Description :

The G-type screw pump is made of various elastic materials for the stator, so this pump has characteristics that general pump types cannot handle for conveying fluids with high viscosity up to 80% and conveying media containing hard suspended particles or fiber media. Its flow rate is proportional to the rotational speed and is widely used in industrial sectors such as food metallurgy, papermaking, printing and dyeing, chemical industry, fertilizer and pharmaceuticals Transmission can be achieved through direct coupling or by using high-speed motors, V-belts, gearboxes, and other devices for variable speed. Supply of G-type sanitary grade wear-resistant and non clogging stainless steel screw pump Performance characteristics G-type screw pump is a new type of pump that works according to the principle of rotary meshing displacement. The main working components are eccentric screw (rotor) and fixed liner (stator). Due to the special geometric shape of these two components, they form separate sealed chambers, and the medium flows uniformly in the axial direction. The internal flow velocity is low, the volume remains constant, and the pressure is stable, so there will be no vortex or agitation. The output pressure of each stage pump is 0.6MPa, with a head of 60m (clean water), suitable for conveying medium temperatures below 80 ℃ (special requirements can reach 150 ℃). The technical parameters for supplying G-type sanitary grade wear-resistant and non clogging stainless steel screw pumps include the use of multiple elastic materials for the stator. Therefore, this pump has characteristics that general pump types cannot handle for the transportation of high viscosity fluids and media containing hard suspended particles or fiber media. Its flow rate is proportional to the rotational speed. Transmission can be achieved directly through couplings, or through devices such as variable speed motors, V-belts, gearboxes, etc. This type of pump has few parts, compact structure, small volume, and easy maintenance. The rotor and stator are the vulnerable parts of this pump, and the structure is simple and easy to assemble and disassemble. Supply G-type sanitary grade wear-resistant and non clogging stainless steel screw pump with strong self-priming ability and high suction height; Screw pumps have few parts, compact structure, small volume, and easy maintenance. The rotor and stator are vulnerable parts of single screw pumps, with a simple structure and easy assembly and disassembly. It is a new type of pump that works according to the principle of rotary meshing displacement. Purchase instructions for G-type sanitary grade wear-resistant and non clogging stainless steel screw pump. The main working components are eccentric screw (rotor) and fixed liner (stator). Using odorless edible rubber, the working temperature can reach 120 degrees Celsius. If using high temperature of 120 degrees Celsius to 350 degrees Celsius, it can be the same as this unit. Due to the special geometric opening of these two components, they form separate sealed chambers. The medium flows uniformly in the axial direction. The internal flow rate is reduced while the volume remains unchanged. The pressure is stable, so there will be no product turbulence or agitation. The output pressure of each stage pump is 0.6MPa-1.2MPa, the head is 60m-120m (clean water), the flow rate is 0.8-120m3/h, and the self-priming height is generally above 3m Can be used as a self-priming sewage pump product.
